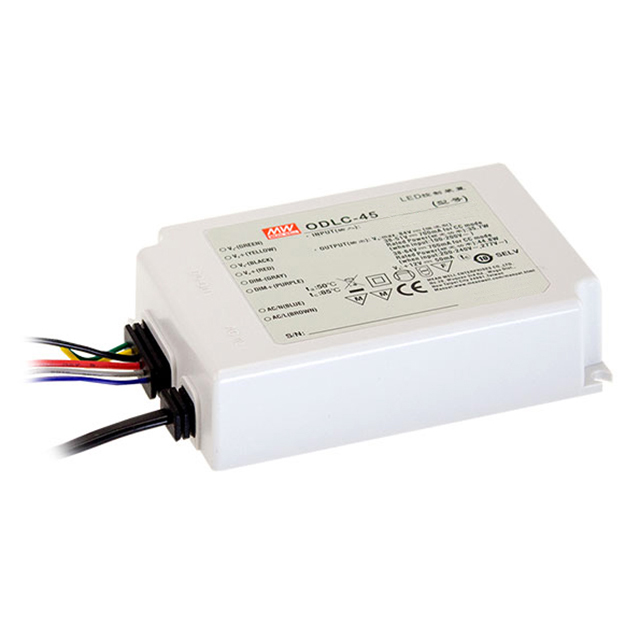

ODLC-45 Series

Catalog

LED DRVR CC AC/DC 26-43V 1.05A

Part	Mounting Type	Voltage - Isolation	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Number of Outputs	Power (Watts)	Features	Voltage - Output [Max]	Voltage - Output [Min]	Topology	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Efficiency	Dimming	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Ratings	Approval Agency	Type
MEAN WELL USA Inc. ODLC-45A-1050	Chassis Mount	3750 VDC	90 VAC	85 °C	-20 ░C	Wire Leads	1	45 W	SCP	43 V	26 V	AC DC Converter	1.05 A	295 VAC	84 %	Analog PWM	1.12 "	4.37 in	28.5 mm	111 mm	77 mm	3.03 in	IP67	CB CCC CE cURus ENEC	Constant Current
MEAN WELL USA Inc. ODLC-45-350	Chassis Mount	3750 VDC	90 VAC	85 °C	-20 ░C	Wire Leads	1	33 W	SCP	95 V	57 V	AC DC Converter	350 mA	295 VAC	86 %	Analog PWM	1.12 "	4.37 in	28.5 mm	111 mm	77 mm	3.03 in	IP67	CB CCC CE cURus ENEC	Constant Current
MEAN WELL USA Inc. ODLC-45-500	Chassis Mount	3750 VDC	90 VAC	85 °C	-20 ░C	Wire Leads	1	45 W	SCP	90 V	54 V	AC DC Converter	500 mA	295 VAC	85 %	Analog PWM	1.12 "	4.37 in	28.5 mm	111 mm	77 mm	3.03 in	IP67	CB CCC CE cURus ENEC	Constant Current
MEAN WELL USA Inc. ODLC-45A-350	Chassis Mount	3750 VDC	90 VAC	85 °C	-20 ░C	Wire Leads	1	33 W	SCP	95 V	57 V	AC DC Converter	350 mA	295 VAC	86 %	Analog PWM	1.12 "	4.37 in	28.5 mm	111 mm	77 mm	3.03 in	IP67	CB CCC CE cURus ENEC	Constant Current
