E2E-X9 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

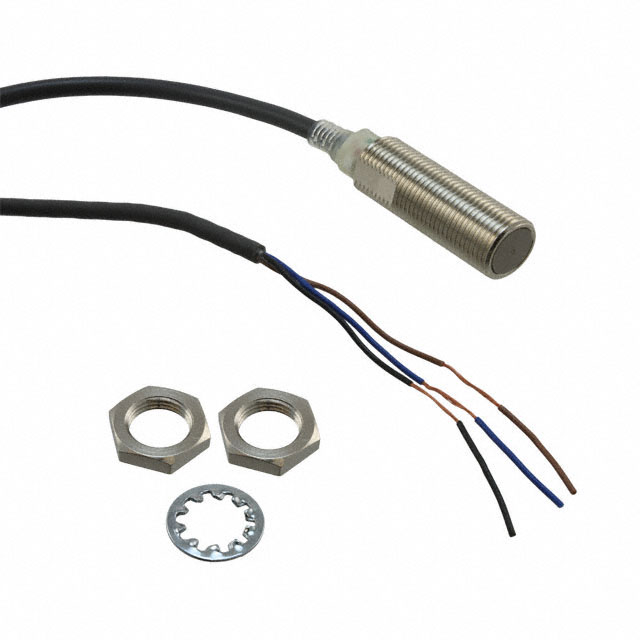

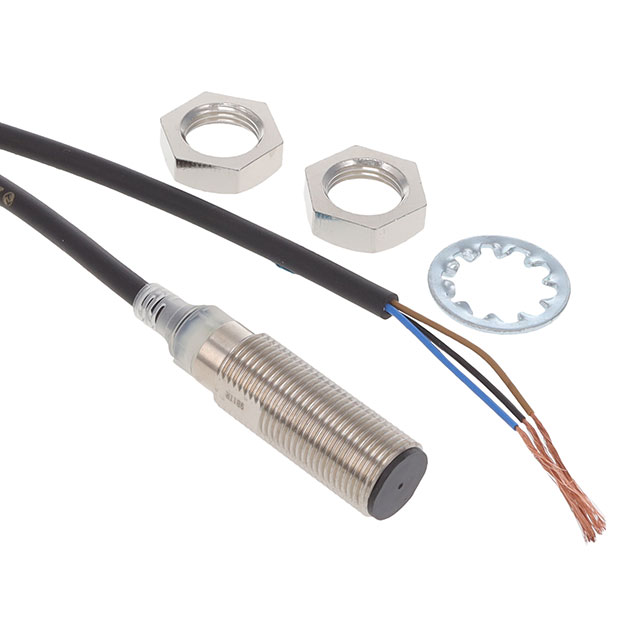

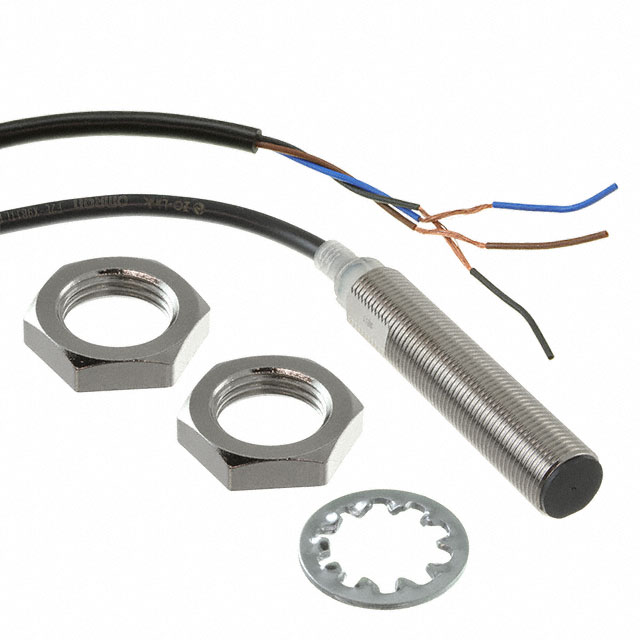

SENSOR INDUCT 9MM PNP M12 NO
| Part | Output Type | Indicator [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Max] | Voltage - Supply [Min] | Response Frequency | Shielding | Material - Body | Termination Style | Ingress Protection | Sensor Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | PNP-NO 3-Wire | LED | 70 °C | -25 °C | 30 VDC | 10 VDC | 700 Hz | Shielded | Nickel-Plated Brass | Cable Leads | IP67 IP69K | Inductive | Cylinder Threaded - M12 |
Omron Electronics Inc-EMC Div | PNP-NO 3-Wire | LED | 70 °C | -25 °C | 30 VDC | 10 VDC | 700 Hz | Shielded | Nickel-Plated Brass | Connector | IP67 IP69K | Inductive | Cylinder Threaded - M12 |
Omron Electronics Inc-EMC Div | PNP-NO 3-Wire | LED | 70 °C | -25 °C | 30 VDC | 10 VDC | 700 Hz | Shielded | Nickel-Plated Brass | Cable Leads | IP67 IP69K | Inductive | Cylinder Threaded - M12 |
 Omron Electronics Inc-EMC Div | NPN-NC 3-Wire | LED | 70 °C | -25 °C | 30 VDC | 10 VDC | 700 Hz | Shielded | Nickel-Plated Brass | Cable Leads | IP67 IP69K | Inductive | Cylinder Threaded - M12 |
Omron Electronics Inc-EMC Div | NPN-NC 3-Wire | LED | 70 °C | -25 °C | 30 VDC | 10 VDC | 700 Hz | Shielded | Nickel-Plated Brass | Connector | IP67 IP69K | Inductive | Cylinder Threaded - M12 |
 Omron Electronics Inc-EMC Div | PNP-NC 3-Wire | LED | 70 °C | -25 °C | 30 VDC | 10 VDC | 700 Hz | Shielded | Nickel-Plated Brass | Cable Leads | IP67 IP69K | Inductive | Cylinder Threaded - M12 |
Omron Electronics Inc-EMC Div | NPN-NC 3-Wire | LED | 70 °C | -25 °C | 30 VDC | 10 VDC | 700 Hz | Shielded | Nickel-Plated Brass | Cable with Connector | IP67 IP69K | Inductive | Cylinder Threaded - M12 |
Omron Electronics Inc-EMC Div | PNP-NO 3-Wire | LED | 70 °C | -25 °C | 30 VDC | 10 VDC | 700 Hz | Shielded | Nickel-Plated Brass | Cable Leads | IP67 IP69K | Inductive | Cylinder Threaded - M12 |
Omron Electronics Inc-EMC Div | NPN-NC 3-Wire | LED | 70 °C | -25 °C | 30 VDC | 10 VDC | 700 Hz | Shielded | Nickel-Plated Brass | Cable with Connector | IP67 IP69K | Inductive | Cylinder Threaded - M12 |
Omron Electronics Inc-EMC Div | NPN-NC 3-Wire | LED | 70 °C | -25 °C | 30 VDC | 10 VDC | 700 Hz | Shielded | Nickel-Plated Brass | Connector | IP67 IP69K | Inductive | Cylinder Threaded - M12 |
