1303EPU Series
Manufacturer: Belden Inc.
Beta
⌘K

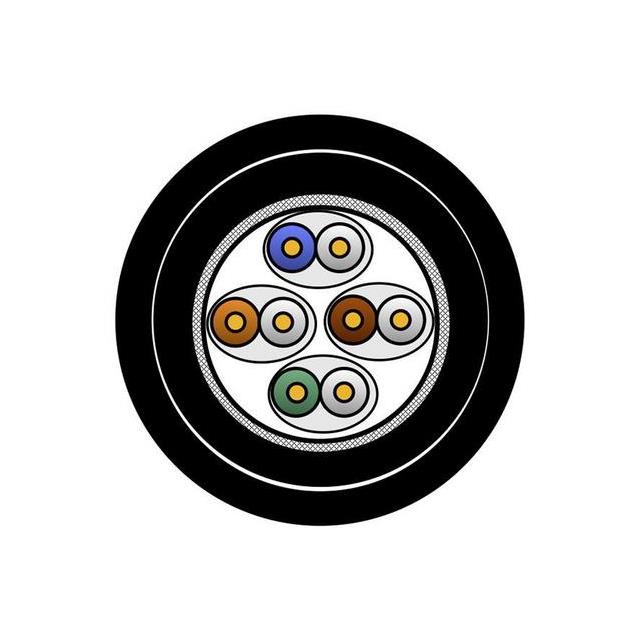

CATSNAKE CAT 6A S/FTP PVC
| Part | Shield Coverage | Shield Material | Jacket Color | Usage | Conductor Material | Wire Gauge | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Operating Temperature [Min] | Operating Temperature [Max] | Shield Type | Cable Type | Features | Conductor Insulation | Voltage | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 80 % 100 % | Aluminum Polyester Copper Tinned | Black | Audio Ethernet | Copper Bare | 24 AWG | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | 8.64 mm | 0.34 " | 1640 ft | 499.9 m | -30 ░C | 60 °C | Braid Foil | Multi-Pair Cat6a | Drain Wire | Foam Polyethylene (FPE) | 72 V | 8 |
 Belden Inc. | 80 % 100 % | Aluminum Polyester Copper Tinned | Black | Audio Ethernet | Copper Bare | 24 AWG | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | 8.64 mm | 0.34 " | 500 ft | 152.4 m | -30 ░C | 60 °C | Braid Foil | Multi-Pair Cat6a | Drain Wire | Foam Polyethylene (FPE) | 72 V | 8 |
