TPSM84624 Series

4.5V to 17V Input, 0.6V-10V Output, 6A Power Module in Compact 7.5x7.5mm Footprint

Catalog

4.5V to 17V Input, 0.6V-10V Output, 6A Power Module in Compact 7.5x7.5mm Footprint

Part	Power (Watts)	Applications	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Voltage - Input (Min) [Min]	Mounting Type	Number of Outputs	Features	Voltage - Input (Max) [Max]	Type	Current - Output (Max) [Max]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency

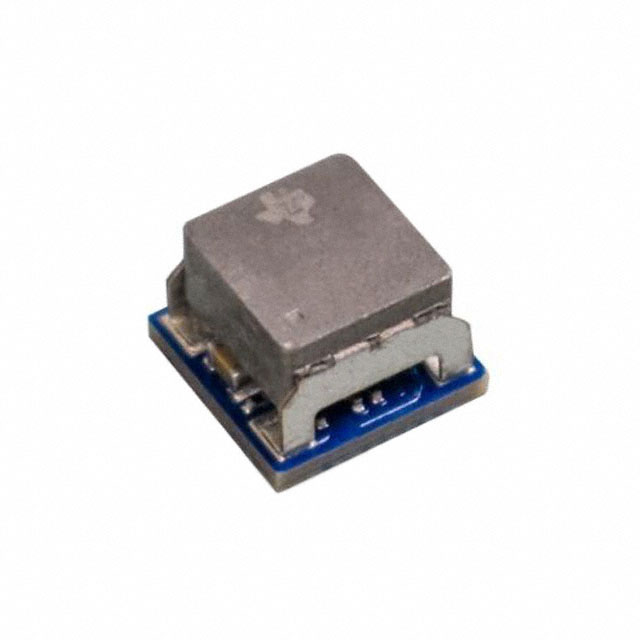

Texas Instruments TPSM84624MOLR	60 W	ITE (Commercial)	7.5 mm	0.3 "	0.21 in	7.5 mm	0.3 in	5.4 mm	7.5	7.5	24-QFM	4.5 V	Surface Mount	1	OCP OTP UVLO	17 V	Non-Isolated PoL Module	6 A	0.6 V	10 V	24-SMD Module	-40 °C	105 ░C	94 %

Catalog

4.5V to 17V Input, 0.6V-10V Output, 6A Power Module in Compact 7.5x7.5mm Footprint

Key Features

• Integrated Inductor Power Solution7.5 mm × 7.5 mm × 5.3 mm QFM PackageAll Pins Accessible From Package PerimeterInput Voltage Range: 4.5 V to 17 VWide-Output Voltage Range: 0.6 V to 10 VEfficiencies up to 96%Adjustable Fixed Switching Frequency(200 kHz to 1.6 MHz)Allows Synchronization to an External ClockUltra-Fast Load Step Response (TurboTrans™)Power-Good OutputMeets EN55011 Class B Radiated EMI LimitsOperating Ambient Range: –40°C to +105°COperating IC Junction Range: –40°C to +150°CCreate a Custom Design Using the TPSM84624 With theWEBENCH®Power DesignerIntegrated Inductor Power Solution7.5 mm × 7.5 mm × 5.3 mm QFM PackageAll Pins Accessible From Package PerimeterInput Voltage Range: 4.5 V to 17 VWide-Output Voltage Range: 0.6 V to 10 VEfficiencies up to 96%Adjustable Fixed Switching Frequency(200 kHz to 1.6 MHz)Allows Synchronization to an External ClockUltra-Fast Load Step Response (TurboTrans™)Power-Good OutputMeets EN55011 Class B Radiated EMI LimitsOperating Ambient Range: –40°C to +105°COperating IC Junction Range: –40°C to +150°CCreate a Custom Design Using the TPSM84624 With theWEBENCH®Power Designer

Description

The TPSM84624 power module is an easy-to-use integrated power supply that combines a 6-A DC/DC converter with power MOSFETs, a shielded inductor and passives into a small form-factor QFM package. This power solution allows as few as six external components while maintaining the ability to adjust key parameters to meet specific design requirements. Ultra-fast transient response can be achieved by use of the TurboTrans™ feature. TurboTrans allows the transient response to be optimized for reduced output voltage deviation with less required output capacitance. The 7.5 mm × 7.5 mm × 5.3 mm, 24-pin QFM package is easy to solder to a printed circuit board and has excellent power-dissipation capability. The TPSM84624 offers flexibility with many features including power good, programmable UVLO, tracking, prebias start-up, as well as overcurrent and overtemperature protection making it a great product to power a wide range of devices and systems. The TPSM84624 power module is an easy-to-use integrated power supply that combines a 6-A DC/DC converter with power MOSFETs, a shielded inductor and passives into a small form-factor QFM package. This power solution allows as few as six external components while maintaining the ability to adjust key parameters to meet specific design requirements. Ultra-fast transient response can be achieved by use of the TurboTrans™ feature. TurboTrans allows the transient response to be optimized for reduced output voltage deviation with less required output capacitance. The 7.5 mm × 7.5 mm × 5.3 mm, 24-pin QFM package is easy to solder to a printed circuit board and has excellent power-dissipation capability. The TPSM84624 offers flexibility with many features including power good, programmable UVLO, tracking, prebias start-up, as well as overcurrent and overtemperature protection making it a great product to power a wide range of devices and systems.
