LPPB121 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

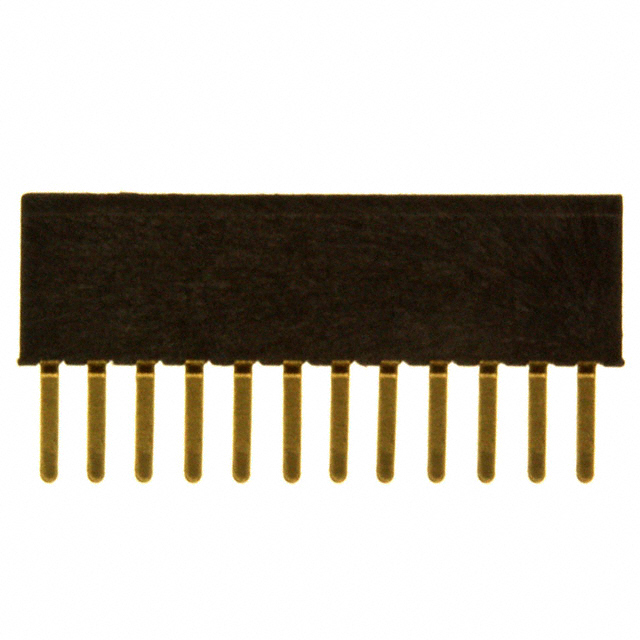

CONN HDR 12POS 0.05 GOLD PCB
| Part | Contact Material | Insulation Material | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Post | Material Flammability Rating | Contact Length - Post | Contact Length - Post | Fastening Type | Number of Positions Loaded | Number of Rows | Insulation Height | Insulation Height | Contact Finish - Mating | Mounting Type | Contact Type | Contact Finish Thickness - Mating | Connector Type | Contact Finish - Post | Number of Positions | Pitch - Mating | Pitch - Mating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Square | -40 C | 105 ░C 125 °C | Flash | UL94 V-0 | 0.118 in | 3 mm | Push-Pull | All | 1 | 0.177 in | 4.5 mm | Gold | Through Hole | Female Socket | Flash | Header | Gold | 12 | 1.27 mm | 0.05 in | Solder |
