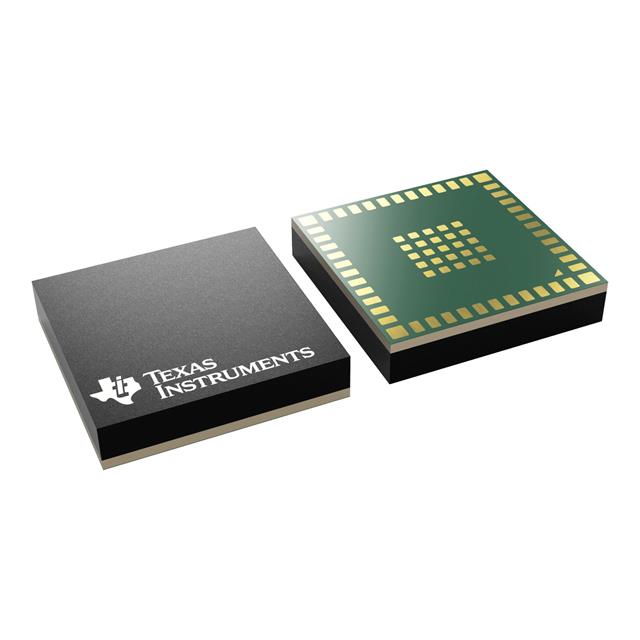

CC1312PSIP Series

Sub-1 GHz system-in-package (SIP) module with integrated power amplifier

Catalog

Sub-1 GHz system-in-package (SIP) module with integrated power amplifier

Part	Current - Receiving	Supplier Device Package	Memory Size	Current - Transmitting [Max]	Current - Transmitting [Min]	Package / Case	Protocol	Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensitivity	Data Rate (Max)	RF Family/Standard	GPIO	Frequency [Max]	Frequency [Min]	Modulation	Serial Interfaces	Power - Output	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
Texas Instruments CC1312PSIPMOTR	5.8 mA	73-QFM	88 kB 352 kB	86 mA	9.4 mA	73-SMD Module	ISM	TxRx + MCU	1.8 V	3.8 V	-119 dBm	1 Mbps	802.15.4 General ISM < 1GHz	30	930 MHz	863 MHz	4-GFSK DSSS GFSK MSK OOK	ADC GPIO I2C I2S SPI UART	20 dBm	-40 °C	105 ░C	Surface Mount

Catalog

Sub-1 GHz system-in-package (SIP) module with integrated power amplifier

Key Features

• Wireless microcontrollerPowerful 48 MHz Arm Cortex-M4F processor352KB flash program memory256KB of ROM for protocols and library functions8KB of cache SRAM80KB of ultra-low leakage SRAM with parity for high-reliability operationProgrammable radio includes support for 2-(G)FSK, 4-(G)FSK, MSK, OOK, IEEE 802.15.4 PHY and MACSupports over-the-air upgrade (OTA)Ultra-low power sensor controllerAutonomous MCU with 4KB of SRAMSample, store, and process sensor dataFast wake-up for low-power operationSoftware defined peripherals; capacitive touch, flow meter, LCDLow power consumptionMCU consumption:2.9 mA active mode, CoreMark60 µA/MHz running CoreMark®0.9 µA standby mode, RTC, 80KB SRAM0.1 µA shutdown mode, wake-up on pinUltra low-power sensor controller consumption:30 µA in 2 MHz mode808 µA in 24 MHz modeRadio Consumption:5.8 mA RX at 868 MHz28.7 mA TX at +14 dBm at 868 MHz62 mA TX at +19 dBm at 915 MHz86 mA TX at +20 dBm at 915 MHzWireless protocol supportWi-SUN®mioty®Wireless M-BusSimpleLink™ TI 15.4-stack6LoWPAN,Proprietary systemsHigh-performance radio–119 dBm for 2.5 kbps long-range mode–108 dBm at 50 kbps, 802.15.4, 868 MHzOutput power up to +20 dBm with temperature and voltage compensationRegulatory complianceCertified module for:FCC CFR47 Part 15ISED Certified (Canada)Suitable for systems targeting compliance with:ETSI EN 300 220 Receiver Cat. 1.5 and 2, EN 303 131, EN 303 204ARIB STD-T108MCU peripheralsDigital peripherals can be routed to 30 GPIOsFour 32-bit or eight 16-bit general-purpose timers12-bit ADC, 200 kSamples/s, 8 channels8-bit DAC, two comparatorsProgrammable current sourceTwo UART, two SSI, I2C, I2SReal-time clock (RTC)Integrated temperature and battery monitorSecurity enablersAES 128- and 256-bit cryptographic acceleratorECC and RSA public key hardware acceleratorSHA2 Accelerator (full suite up to SHA-512)True random number generator (TRNG)Development tools and softwareLP-CC1312PSIP Development KitSimpleLink Low Power F2 SDKSmartRF™ Studiofor simple radio configurationSensor Controller Studiofor building low-power sensing applicationsSysConfigsystem configuration toolOperating range1.8 V to 3.8 V single supply voltage–40 to +105°C (+14 dBm PA)–40 to +95°C (+20 dBm PA)All necessary components integrated48-MHz crystal: RF accuracy ±10 ppm initial and over temperature32-kHz crystal: RTC accuracy ±50 ppm initial and over temperatureDC/DC converter components and decouplingSingle-RF pin for RX/TX with 50 Ohm impedance.Package7-mm × 7-mm MOT (30 GPIOs)Pin-to-pin compatible withCC2652RSIPandCC2652PSIPRoHS-compliant packageWireless microcontrollerPowerful 48 MHz Arm Cortex-M4F processor352KB flash program memory256KB of ROM for protocols and library functions8KB of cache SRAM80KB of ultra-low leakage SRAM with parity for high-reliability operationProgrammable radio includes support for 2-(G)FSK, 4-(G)FSK, MSK, OOK, IEEE 802.15.4 PHY and MACSupports over-the-air upgrade (OTA)Ultra-low power sensor controllerAutonomous MCU with 4KB of SRAMSample, store, and process sensor dataFast wake-up for low-power operationSoftware defined peripherals; capacitive touch, flow meter, LCDLow power consumptionMCU consumption:2.9 mA active mode, CoreMark60 µA/MHz running CoreMark®0.9 µA standby mode, RTC, 80KB SRAM0.1 µA shutdown mode, wake-up on pinUltra low-power sensor controller consumption:30 µA in 2 MHz mode808 µA in 24 MHz modeRadio Consumption:5.8 mA RX at 868 MHz28.7 mA TX at +14 dBm at 868 MHz62 mA TX at +19 dBm at 915 MHz86 mA TX at +20 dBm at 915 MHzWireless protocol supportWi-SUN®mioty®Wireless M-BusSimpleLink™ TI 15.4-stack6LoWPAN,Proprietary systemsHigh-performance radio–119 dBm for 2.5 kbps long-range mode–108 dBm at 50 kbps, 802.15.4, 868 MHzOutput power up to +20 dBm with temperature and voltage compensationRegulatory complianceCertified module for:FCC CFR47 Part 15ISED Certified (Canada)Suitable for systems targeting compliance with:ETSI EN 300 220 Receiver Cat. 1.5 and 2, EN 303 131, EN 303 204ARIB STD-T108MCU peripheralsDigital peripherals can be routed to 30 GPIOsFour 32-bit or eight 16-bit general-purpose timers12-bit ADC, 200 kSamples/s, 8 channels8-bit DAC, two comparatorsProgrammable current sourceTwo UART, two SSI, I2C, I2SReal-time clock (RTC)Integrated temperature and battery monitorSecurity enablersAES 128- and 256-bit cryptographic acceleratorECC and RSA public key hardware acceleratorSHA2 Accelerator (full suite up to SHA-512)True random number generator (TRNG)Development tools and softwareLP-CC1312PSIP Development KitSimpleLink Low Power F2 SDKSmartRF™ Studiofor simple radio configurationSensor Controller Studiofor building low-power sensing applicationsSysConfigsystem configuration toolOperating range1.8 V to 3.8 V single supply voltage–40 to +105°C (+14 dBm PA)–40 to +95°C (+20 dBm PA)All necessary components integrated48-MHz crystal: RF accuracy ±10 ppm initial and over temperature32-kHz crystal: RTC accuracy ±50 ppm initial and over temperatureDC/DC converter components and decouplingSingle-RF pin for RX/TX with 50 Ohm impedance.Package7-mm × 7-mm MOT (30 GPIOs)Pin-to-pin compatible withCC2652RSIPandCC2652PSIPRoHS-compliant package

Description

The SimpleLink™CC1312PSIP device is an RF certified System-in-Package (SiP) Sub-1 GHz wireless module supportingWi-SUN®, Wireless M-Bus, IEEE 802.15.4, IPv6-enabled smart objects (6LoWPAN),mioty, proprietary systems, including theTI 15.4-Stack. The CC1312PSIP microcontroller (MCU) is based on an Arm Cortex M4F main processor and optimized for low-power wireless communication and advanced sensing ingrid infrastructure,building automation,retail automationandmedical applications. The CC1312PSIP has a low sleep current of 0.9 µA with RTC and 80KB RAM retention. In addition to the main Cortex® M4F processor, the device also has an autonomous ultra-low power Sensor Controller CPU with fast wake-up capability. As an example, the sensor controller is capable of 1-Hz ADC sampling at average 1-µA system current. The CC1312PSIP hasLow SER (Soft Error Rate) FIT (Failure-in-time)for long operational lifetime. Always-on SRAM parity minimizes risk for corruption due to potential radiation events. Consistent with many customers’ 10 to 15 years or longer life cycle requirements, TI has aproduct life cycle policywith a commitment to product longevity and continuity of supply including dual sourcing of key components in the SIP. The CC1312PSIP device is part of the SimpleLink™ MCU platform, which consists of Wi-Fi, Bluetooth Low Energy, Thread, Zigbee, Wi-SUN®, Amazon Sidewalk,mioty, Sub-1 GHz MCUs, and host MCUs. CC1312PSIP is part of a portfolio that includes pin-compatible 2.4-GHz SIPs for easy adaption of a wireless product to multiple communication standards. The commonSimpleLink Low Power F2 SDKandSysConfigsystem configuration tool supports migration between devices in the portfolio. A comprehensive number of software stacks, application examples and SimpleLink™ Academy training sessions are included in the SDK. For more information, visitwireless connectivity. The SimpleLink™CC1312PSIP device is an RF certified System-in-Package (SiP) Sub-1 GHz wireless module supportingWi-SUN®, Wireless M-Bus, IEEE 802.15.4, IPv6-enabled smart objects (6LoWPAN),mioty, proprietary systems, including theTI 15.4-Stack. The CC1312PSIP microcontroller (MCU) is based on an Arm Cortex M4F main processor and optimized for low-power wireless communication and advanced sensing ingrid infrastructure,building automation,retail automationandmedical applications. The CC1312PSIP has a low sleep current of 0.9 µA with RTC and 80KB RAM retention. In addition to the main Cortex® M4F processor, the device also has an autonomous ultra-low power Sensor Controller CPU with fast wake-up capability. As an example, the sensor controller is capable of 1-Hz ADC sampling at average 1-µA system current. The CC1312PSIP hasLow SER (Soft Error Rate) FIT (Failure-in-time)for long operational lifetime. Always-on SRAM parity minimizes risk for corruption due to potential radiation events. Consistent with many customers’ 10 to 15 years or longer life cycle requirements, TI has aproduct life cycle policywith a commitment to product longevity and continuity of supply including dual sourcing of key components in the SIP. The CC1312PSIP device is part of the SimpleLink™ MCU platform, which consists of Wi-Fi, Bluetooth Low Energy, Thread, Zigbee, Wi-SUN®, Amazon Sidewalk,mioty, Sub-1 GHz MCUs, and host MCUs. CC1312PSIP is part of a portfolio that includes pin-compatible 2.4-GHz SIPs for easy adaption of a wireless product to multiple communication standards. The commonSimpleLink Low Power F2 SDKandSysConfigsystem configuration tool supports migration between devices in the portfolio. A comprehensive number of software stacks, application examples and SimpleLink™ Academy training sessions are included in the SDK. For more information, visitwireless connectivity.
