PHA225M Series

Manufacturer: KEMET

Catalog

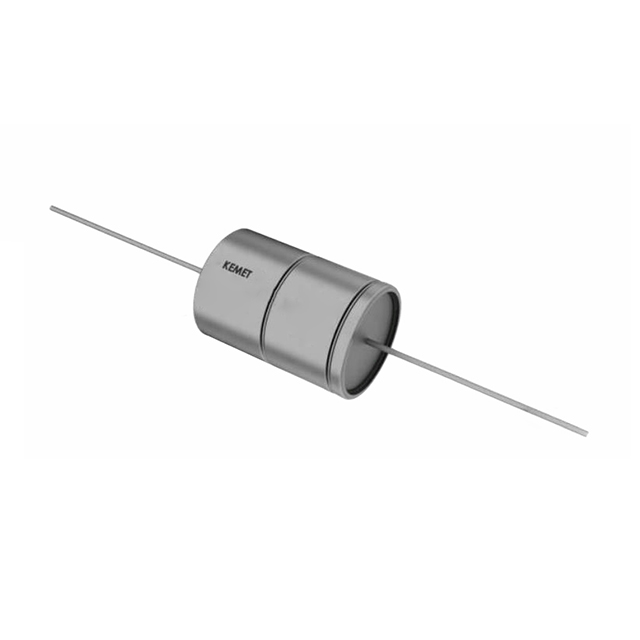

CAP ALUM HYB 370UF 10-30% 63V TH

Part	Tolerance [Min]	Tolerance [Max]	Ripple Current @ High Frequency	ESR (Equivalent Series Resistance)	Ripple Current @ Low Frequency	Package / Case	Capacitance	Features	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Type	Voltage - Rated
KEMET PHA225MKP3370QE1	-10 %	30 %	39.5 A	145 mOhm	7.9 A	Axial Can	370 µF	High Vibration	3000 Hrs	16.2 mm	1.366 in	34.7 mm	0.638 in	General Purpose	125 °C	-40 C	Through Hole	Hybrid	63 V
KEMET PHA225MLL3380QE4	-10 %	30 %	36.8 A	147 mOhm	7.36 A	Axial Can	380 µF	High Vibration	3000 Hrs	18.2 mm	1.051 in	26.7 mm	0.717 "	General Purpose	125 °C	-40 C	Through Hole	Hybrid	63 V
KEMET PHA225MLP3560QE1	-10 %	30 %	40.9 A		8.18 A	Axial Can	560 µF	High Vibration	3000 Hrs	18.2 mm	1.366 in	34.7 mm	0.717 "	General Purpose	125 °C	-40 C	Through Hole	Hybrid	63 V
KEMET PHA225MKP3370QE4	-10 %	30 %	39.5 A	145 mOhm	7.9 A	Axial Can	370 µF	High Vibration	3000 Hrs	16.2 mm	1.366 in	34.7 mm	0.638 in	General Purpose	125 °C	-40 C	Through Hole	Hybrid	63 V
KEMET PHA225MLP3560QE4	-10 %	30 %	40.9 A		8.18 A	Axial Can	560 µF	High Vibration	3000 Hrs	18.2 mm	1.366 in	34.7 mm	0.717 "	General Purpose	125 °C	-40 C	Through Hole	Hybrid	63 V
