AWG28-34 Series

Catalog

CBL RIBN 34COND 0.039 GRAY 300'

Part	First Conductor Mark	Conductor Material	Insulation Resistance	Ratings	Ribbon Thickness	Ribbon Thickness	Pitch	Pitch	Wire Gauge	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Ribbon Width [custom]	Ribbon Width [custom]	Shielding	Length [x]	Length [x]	Number of Conductors	Voltage	Jacket (Insulation) Material	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Spool Size [x]	Spool Size [x]	Length	Operating Temperature

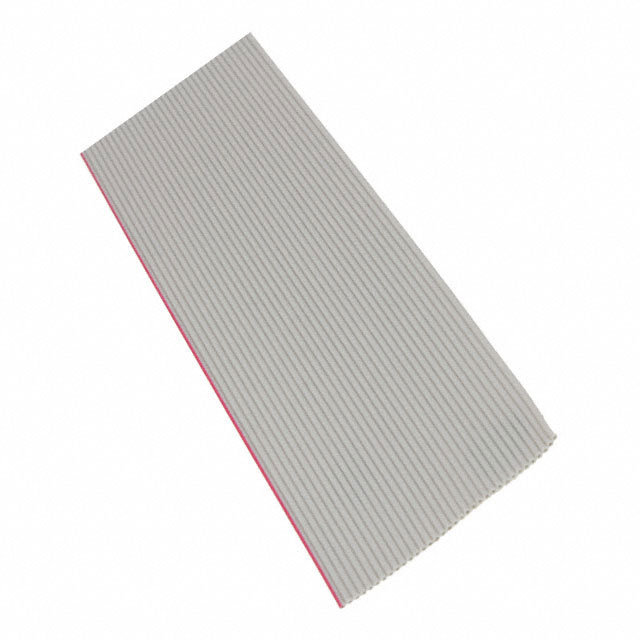

Assmann WSW Components AWG28-34/G-1/300	Red	Copper Tinned	100 MOhms	UL Style 2651	0.89 mm	0.035 in	1 mm	0.039 in	28 AWG	10 ft 25 ft 100 ' 3600 in	3.05 m 7.62 m 30.48 m 91440 mm	-10 °C	105 ░C	Gray	1.339 in	34 mm	Unshielded	50 ft	15.24 m	34	300 VDC	Poly-Vinyl Chloride (PVC)	Flat Cable	36 AWG	7 Strands

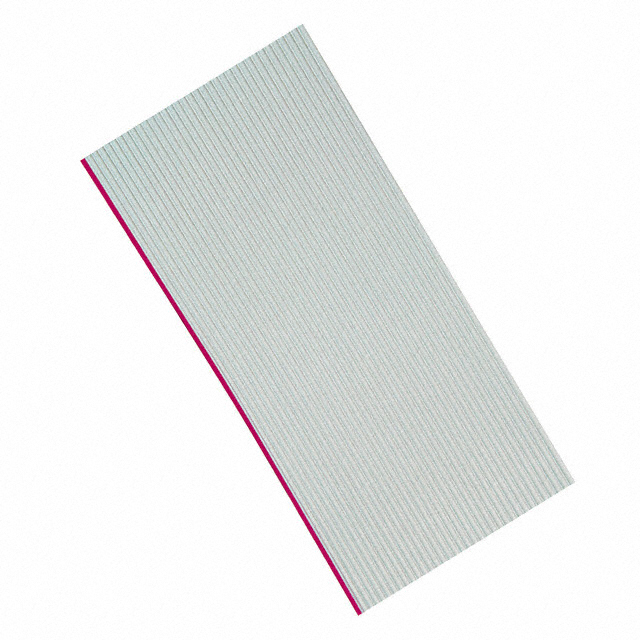

Assmann WSW Components AWG28-34/G/300	Red	Copper Tinned	100 MOhms	UL Style 2651	0.89 mm	0.035 in	1.27 mm	0.05 in	28 AWG	10 ft 25 ft 100 ' 3600 in	3.05 m 7.62 m 30.48 m 91440 mm	-10 °C	105 ░C	Gray	1.7 in	43.18 mm	Unshielded	50 ft	15.24 m	34	300 VDC	Poly-Vinyl Chloride (PVC)	Flat Cable	36 AWG	7 Strands

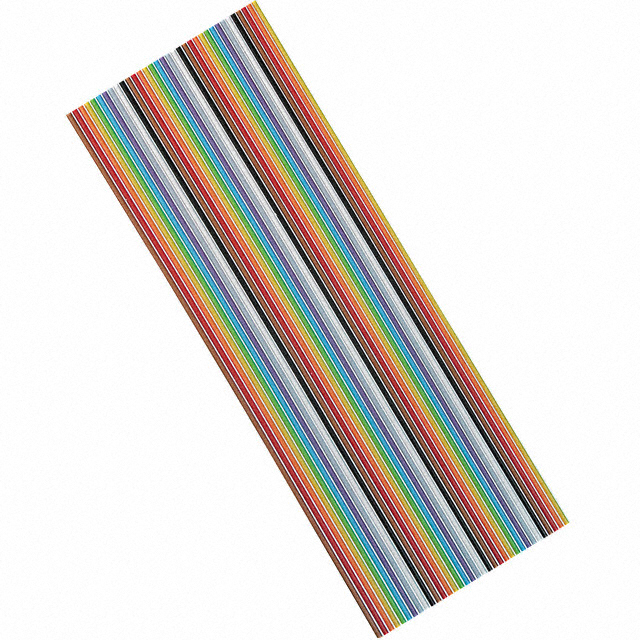

Assmann WSW Components AWG28-34/F/300	Red	Copper Tinned	100 MOhms	UL Style 2651	0.89 mm	0.035 in	1.27 mm	0.05 in	28 AWG	10 ft 25 ft 100 ' 3600 in	3.05 m 7.62 m 30.48 m 91440 mm			Multiple	1.7 in	43.18 mm	Unshielded	50 ft	15.24 m	34	300 VDC	Poly-Vinyl Chloride (PVC)	Flat Cable	36 AWG	7 Strands	300 ft	91.44 m	Enter Number of Feet in Order Quantity	105 C
Assmann WSW Components AWG28-34/F-1/300		Copper Tinned	100 MOhms	UL Style 2651	0.89 mm	0.035 in	1 mm	0.039 in	28 AWG	10 ft 25 ft 100 ' 3600 in	3.05 m 7.62 m 30.48 m 91440 mm	-10 °C	105 ░C	Multiple	1.339 in	34 mm	Unshielded	50 ft	15.24 m	34	300 VDC	Poly-Vinyl Chloride (PVC)	Flat Cable	36 AWG	7 Strands
