M2B15BA Series

Catalog

PUSHBUTTON SWITCHES SPDT ON(ON) RA PC .4VA .315 RED CAP

Part	Mechanical Life	Electrical Life	Actuator Marking	Actuator Type	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Voltage Rating - AC	Color - Actuator/Cap	Features	Termination Style	Voltage Rating - DC	Mounting Type	Circuit	Type
NKK Switches M2B15BA5G30-BC	200000 Cycles	100000 Cycles	No Marking	Button Round	On-Mom	85 °C	-30 ░C	0.4 VA	28 V	Red	Process Sealed	PC Pin	28 V	Right Angle Through Hole	SPDT	Standard
NKK Switches M2B15BA5G13	200000 Cycles	100000 Cycles	No Marking	Plunger for Cap	On-Mom	85 °C	-30 ░C	0.4 VA	28 V		Process Sealed	PC Pin	28 V	Through Hole	SPDT	Standard
NKK Switches M2B15BA5W03-CB	200000 Cycles	25000 Steps	No Marking	Button Round	On-Mom	85 °C	-30 ░C	1 A	125 V	White	Process Sealed	PC Pin	30 V	Through Hole	SPDT	Standard

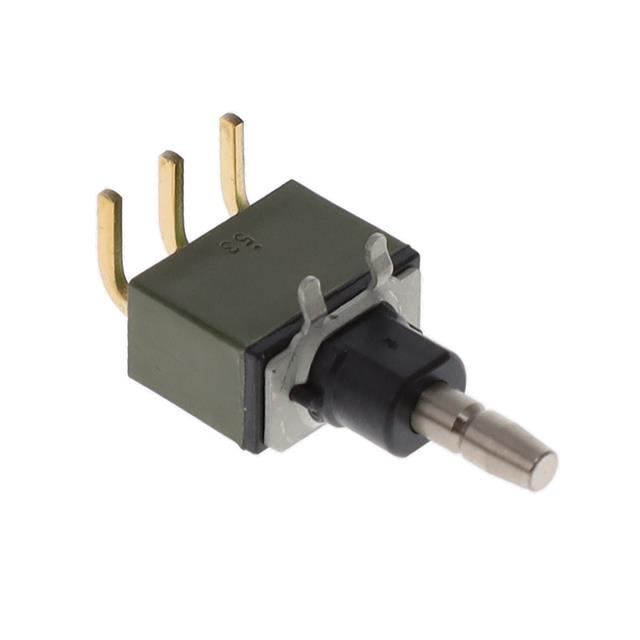

NKK Switches M2B15BA5G30	200000 Cycles	100000 Cycles	No Marking	Plunger for Cap	On-Mom	85 °C	-30 ░C	0.4 VA	28 V		Process Sealed	PC Pin	28 V	Right Angle Through Hole	SPDT	Standard
NKK Switches M2B15BA5W03-CA	200000 Cycles	25000 Steps	No Marking	Button Round	On-Mom	85 °C	-30 ░C	1 A	125 V	Black	Process Sealed	PC Pin	30 V	Through Hole	SPDT	Standard
NKK Switches M2B15BA5G13-BA	200000 Cycles	100000 Cycles	No Marking	Button Round	On-Mom	85 °C	-30 ░C	0.4 VA	28 V	Black	Process Sealed	PC Pin	28 V	Through Hole	SPDT	Standard
NKK Switches M2B15BA5W40-CA	200000 Cycles	25000 Steps	No Marking	Button Round	On-Mom	85 °C	-30 ░C	1 A	125 V	Black	Process Sealed	PC Pin	30 V	Right Angle Through Hole Vertical	SPDT	Standard

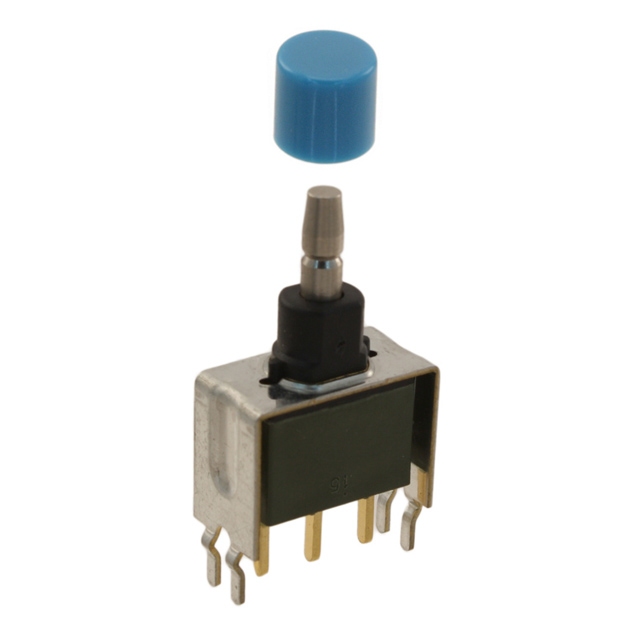

NKK Switches M2B15BA5G13-CG	200000 Cycles	100000 Cycles	No Marking	Button Round	On-Mom	85 °C	-30 ░C	0.4 VA	28 V	Blue	Process Sealed	PC Pin	28 V	Through Hole	SPDT	Standard

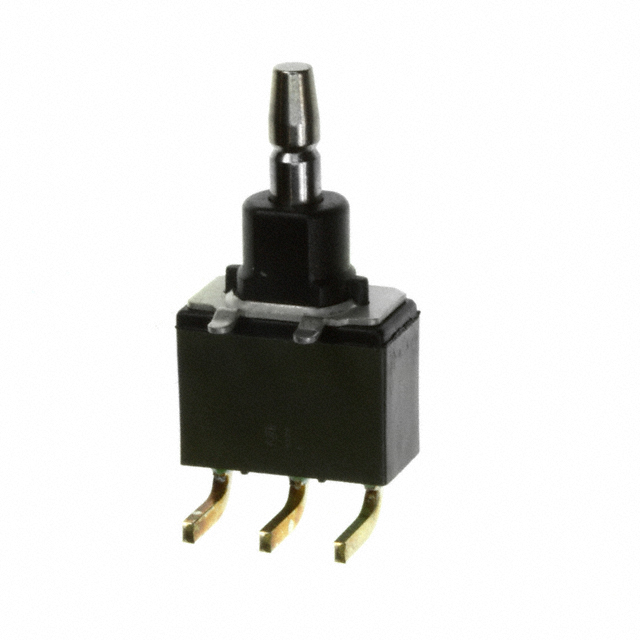

NKK Switches M2B15BA5W30	200000 Cycles	25000 Steps	No Marking	Plunger for Cap	On-Mom	85 °C	-30 ░C	1 A	125 V		Process Sealed	PC Pin	30 V	Right Angle Through Hole	SPDT	Standard

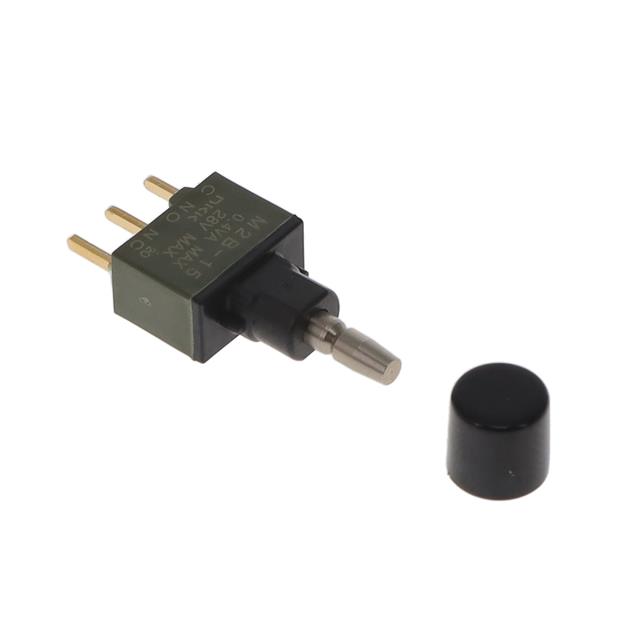

NKK Switches M2B15BA5G03-BA	200000 Cycles	100000 Cycles	No Marking	Button Round	On-Mom	85 °C	-30 ░C	0.4 VA	28 V	Black	Process Sealed	PC Pin	28 V	Through Hole	SPDT	Standard
