090635 Series

Manufacturer: Molex

Catalog

CONN RCPT 20P IDC 26-28AWG GOLD

Part	Row Spacing [x]	Row Spacing	Number of Rows	Cable Termination	Contact Finish Thickness	Contact Type	Number of Positions	Mounting Type	Connector Type	Wire Type	Features	Contact Finish	Pitch [x]	Pitch [x]	Color	Contact Finish Thickness	Contact Finish Thickness	Number of Positions
Molex 0906350201	0.1 in	2.54 mm	2	IDC	Flash	Female Socket	20	Free Hanging (In-Line)	Receptacle	Ribbon Cable	Feed Through	Gold	2.54 mm	0.1 in	Black
Molex 0906351502	0.1 in	2.54 mm	2	IDC		Female Socket	50	Free Hanging (In-Line)	Receptacle	Ribbon Cable	Feed Through Polarizing Key	Gold	2.54 mm	0.1 in	Black	0.76 Ám	30 Áin

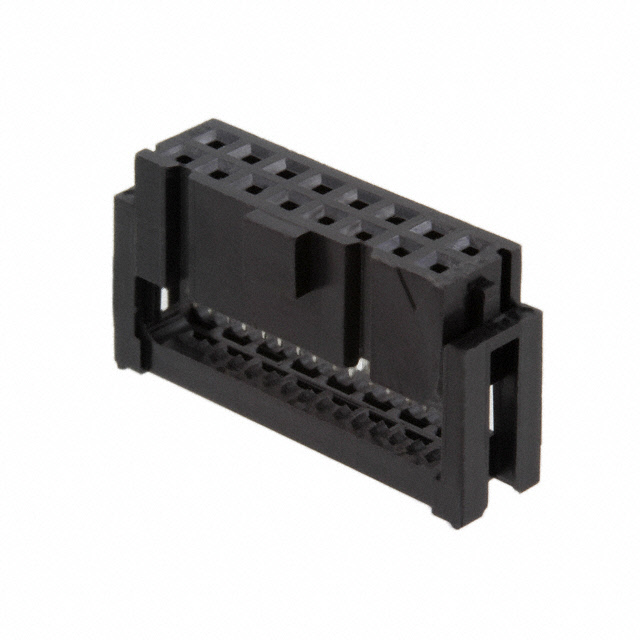

Molex 0906351161	0.1 in	2.54 mm	2	IDC	Flash	Female Socket		Free Hanging (In-Line)	Receptacle	Ribbon Cable	Feed Through Polarizing Key	Gold	2.54 mm	0.1 in	Black			16
Molex 0906350141	0.1 in	2.54 mm	2	IDC	Flash	Female Socket	14	Free Hanging (In-Line)	Receptacle	Ribbon Cable	Feed Through	Gold	2.54 mm	0.1 in	Black
Molex 0906352642

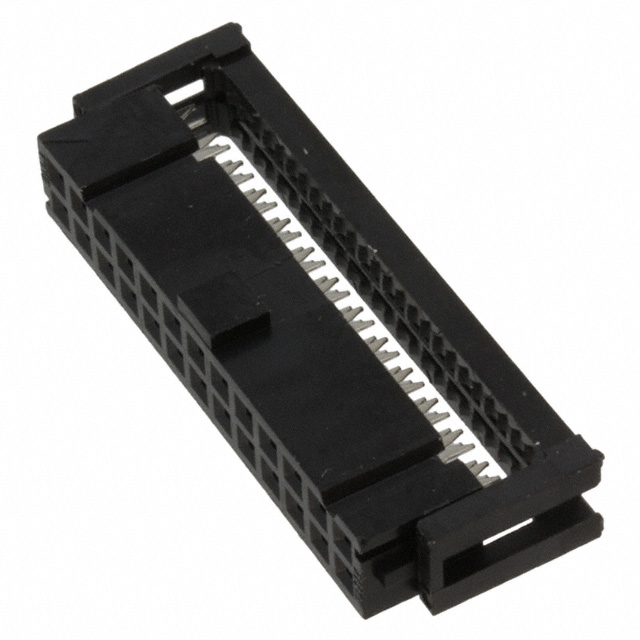

Molex 0906351261	0.1 in	2.54 mm	2	IDC	Flash	Female Socket	26	Free Hanging (In-Line)	Receptacle	Ribbon Cable	Feed Through Polarizing Key	Gold	2.54 mm	0.1 in	Black
Molex 0906351341	0.1 in	2.54 mm	2	IDC	Flash	Female Socket	34	Free Hanging (In-Line)	Receptacle	Ribbon Cable	Feed Through Polarizing Key	Gold	2.54 mm	0.1 in	Black
Molex 0906351243	0.1 in	2.54 mm	2	IDC		Female Socket	24	Free Hanging (In-Line)	Receptacle	Ribbon Cable	Feed Through Polarizing Key	Gold	2.54 mm	0.1 in	Black	0.38 µm	15 µin

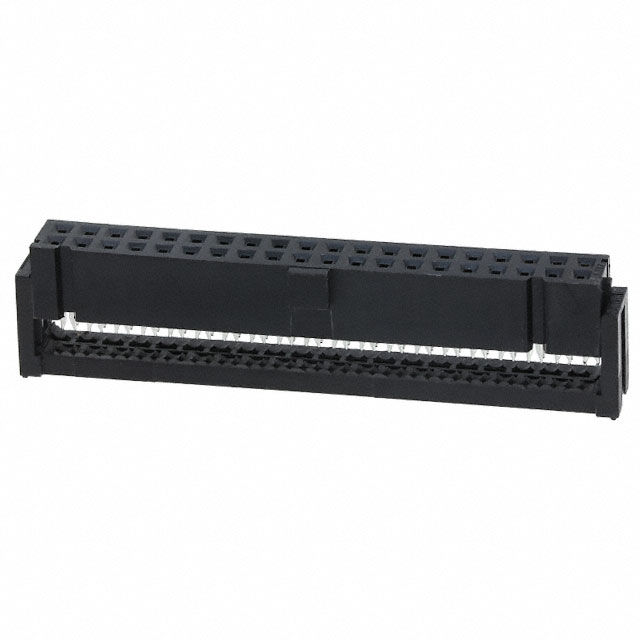

Molex 0906351402	0.1 in	2.54 mm	2	IDC		Female Socket	40	Free Hanging (In-Line)	Receptacle	Ribbon Cable	Feed Through Polarizing Key	Gold	2.54 mm	0.1 in	Black	0.76 Ám	30 Áin

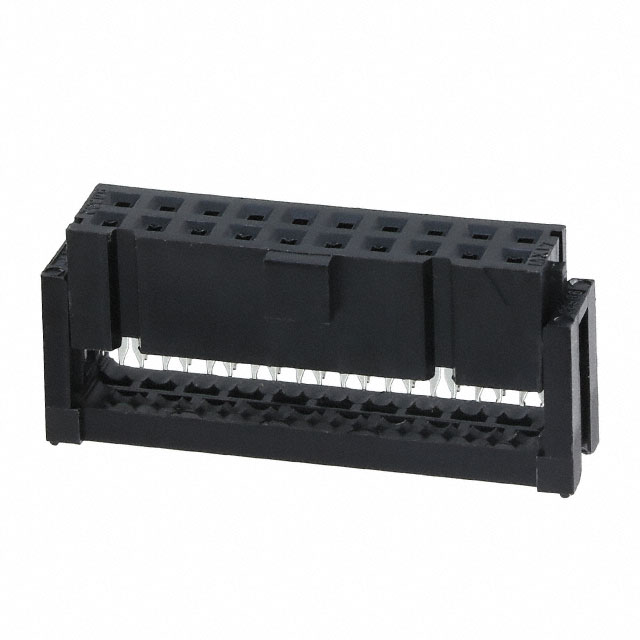

Molex 0906351202	0.1 in	2.54 mm	2	IDC		Female Socket	20	Free Hanging (In-Line)	Receptacle	Ribbon Cable	Feed Through Polarizing Key	Gold	2.54 mm	0.1 in	Black	0.76 Ám	30 Áin
