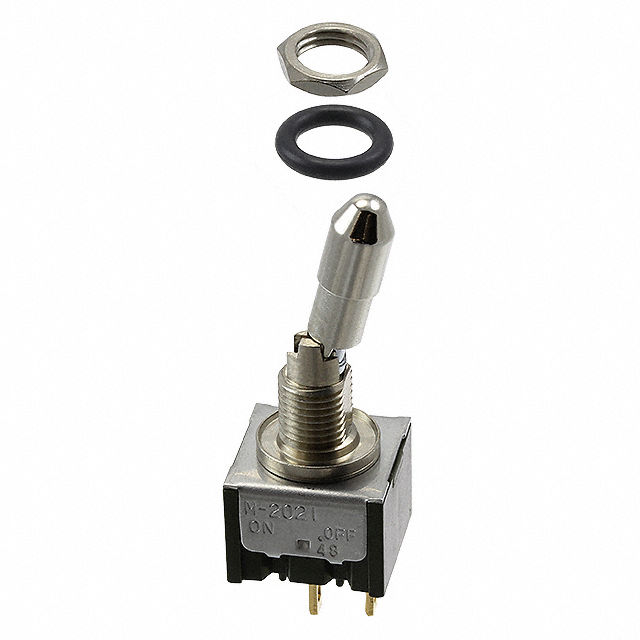

M2021LL Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE DPST 0.4VA 28V
| Part | Electrical Life | Actuator Material | Current Rating (Amps) | Circuit | Switch Function | Termination Style | Voltage Rating - DC | Panel Cutout Dimensions [diameter] | Actuator Length [x] | Bushing Thread | Mounting Type | Voltage Rating - AC | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Illumination | Features | Bushing Thread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 50000 Cycles | Brass Chrome Plated | 0.4 VA | DPST | On-Off | Solder Lug | 28 V | 6.5 mm | 16.5 mm | 1/4-40 | Panel Mount | 28 V | IP67 - Dust Tight Waterproof | 85 °C | -30 ░C | Locking Lever | Non-Illuminated | Epoxy Sealed Terminals | |
 NKK Switches | 25000 Steps | Brass Chrome Plated | 0.4 VA | DPST | On-Off | Solder Lug | 28 V | 6.5 mm | 16.5 mm | 1/4-40 | Panel Mount | 28 V | 85 °C | -30 ░C | Locking Lever | Non-Illuminated | Epoxy Sealed Terminals | ||
NKK Switches | 25000 Steps | Brass Chrome Plated | 4 A 6 A | DPST | On-Off | Solder Lug | 30 V | 6.5 mm | 16.5 mm | M6 | Panel Mount | 125 V | 85 °C | -30 ░C | Locking Lever | Non-Illuminated | Epoxy Sealed Terminals | 0.75 |
