CGA0.6101 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

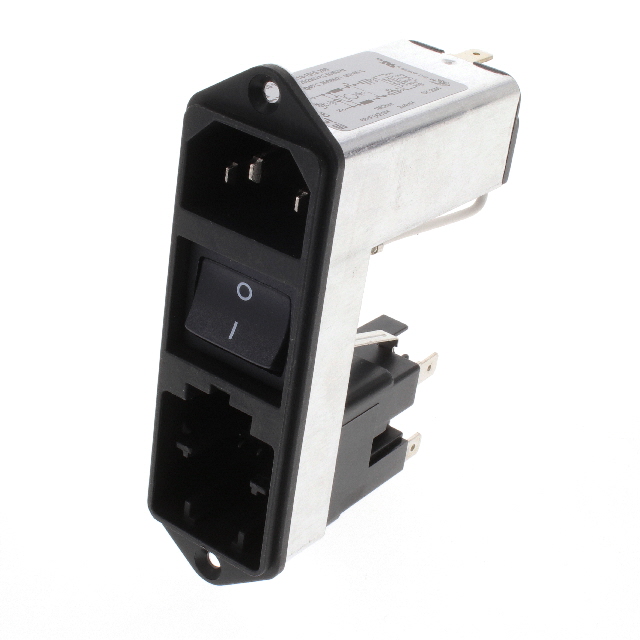

POWER ENTRY MODULE FILTERED M 3 POS 250VAC 2A FUSE/SWITCH/VOLTAGE SELECTOR ST 1 PORT
| Part | Material Flammability Rating | Features | Termination | Termination | Termination | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Mounting Type | Filter Type | Approval Agency | Switch Features | Connector Type | Current Rating - Filter | Voltage Rating - Appliance Inlet | Fuse Holder, Drawer | Current Rating - Appliance Inlet | Ingress Protection | Connector Style | Accomodates a Fuse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | UL94 V-0 | Voltage Selector | 0.189 " | 4.8 mm | Quick Connect | 28.5 mm | 81 mm | Flange Panel Mount | Filtered (EMI RFI) - Commercial Medical | cULus ENEC | Switch On-Off | Receptacle Male Blades - Module | 2 A | 250 VAC | Drawer Sold Separate | 10 A | IP40 | IEC 320-C14 |
