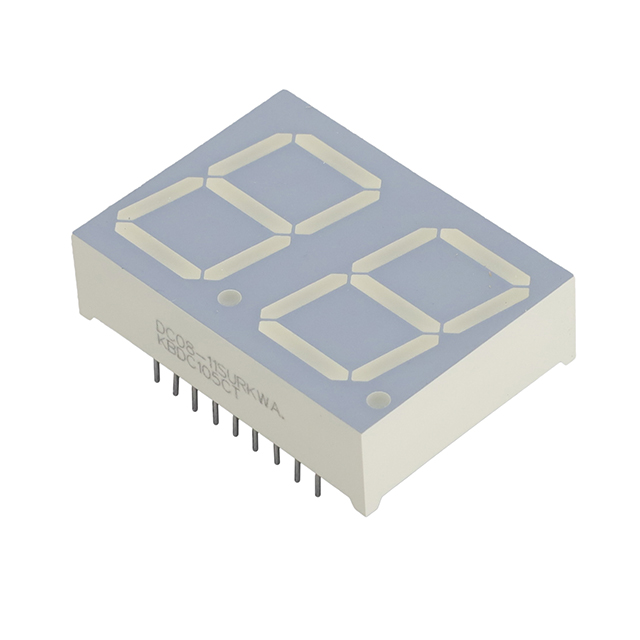

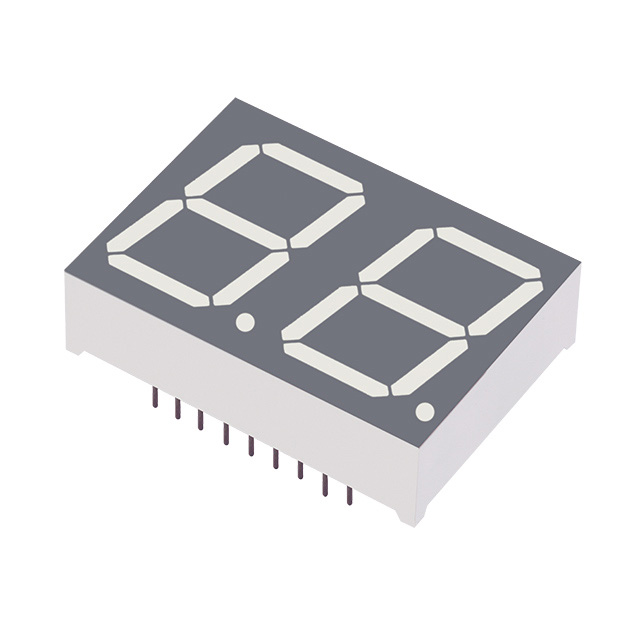

DC08-11 Series
Manufacturer: Kingbright
Beta
⌘K
DISPLAY 7-SEG 0.8" DBL RED 18DIP
| Part | Color | Common Pin | Current - Test | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Display Type | Package / Case | Millicandela Rating | Voltage - Forward (Vf) (Typ) | Power Dissipation (Max) [Max] | Digit/Alpha Size | Digit/Alpha Size | Number of Characters | Wavelength - Peak | Size / Dimension [x] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kingbright | Red | Common Cathode | 20 mA | 35.8 mm | 0.394 " 1.018 " | 10 mm 25.85 mm | 1.409 " | 7-Segment | 18-DIP (0.866" 22.00mm) | 32 mcd | 1.85 V | 75 mw | 0.8 in | 20.32 mm | 2 | 660 nm | ||
 Kingbright | Green | Common Cathode | 20 mA | 25.85 mm | 1.4 " | 35.8 mm | 1.01 " | 7-Segment | 18-DIP (0.866" 22.00mm) | 38 mcd | 2.1 V | 75 mw | 0.8 in | 20.32 mm | 2 | 10 mm | 0.394 in | |
Kingbright | Green | Common Cathode | 20 mA | 35.8 mm | 0.394 " 1.018 " | 10 mm 25.85 mm | 1.409 " | 7-Segment | 18-DIP (0.866" 22.00mm) | 11 mcd | 2.2 V | 62.5 mW | 0.8 in | 20.32 mm | 2 | 565 nm | ||
 Kingbright | Red | Common Cathode | 20 mA | 25.85 mm | 1.4 " | 35.8 mm | 1.01 " | 7-Segment | 18-DIP (0.866" 22.00mm) | 75 mcd | 1.95 V | 75 mw | 0.8 in | 20.32 mm | 2 | 645 nm | 10 mm | 0.394 in |
Kingbright | Red | Common Cathode | 20 mA | 35.8 mm | 0.394 " 1.018 " | 10 mm 25.85 mm | 1.409 " | 7-Segment | 18-DIP (0.866" 22.00mm) | 8.8 mcd | 2 V | 75 mw | 0.8 in | 20.32 mm | 2 | 627 nm |
