3230-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

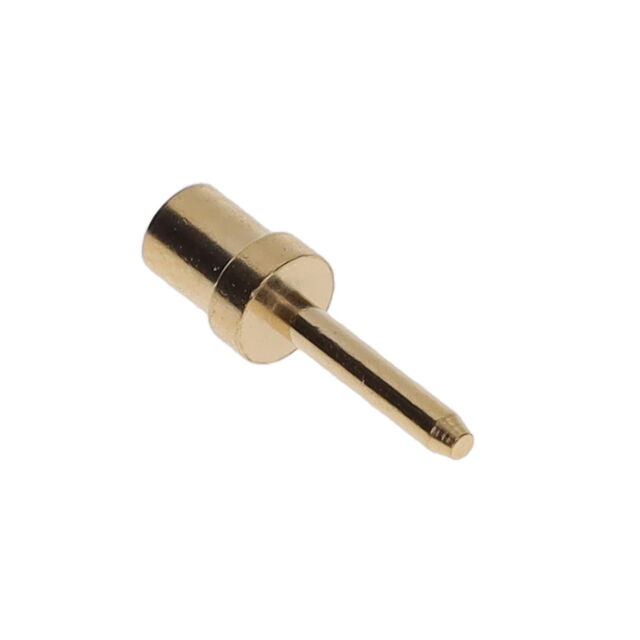

CONN PC PIN CIRC .040DIA GOLD
| Part | Length - Below Flange [x] | Length - Below Flange [x] | Terminal Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Board Thickness | Board Thickness | Mounting Type | Termination | Length - Above Flange [custom] | Length - Above Flange [custom] | Length - Overall | Length - Overall | Contact Finish | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Material | Terminal Style | Contact Finish Thickness | Contact Finish Thickness | Insulation | Flange Diameter [diameter] | Flange Diameter [diameter] | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 2.41 mm | 0.095 " | PC Pin | 0.04 in | 1.02 mm | 1.57 mm | 0.062 " | Through Hole | Swage | 0.228 in | 5.79 mm | 9.22 mm | 0.363 in | Gold | 0.094 in | 2.39 mm | Brass Alloy | Single End | 20 µin | 0.51 µm | Non-Insulated | 2.77 mm | 0.109 in | ||
 Mill-Max Manufacturing Corp. | 2.41 mm | 0.095 " | PC Pin | 0.04 in | 1.02 mm | 1.57 mm | 0.062 " | Through Hole | Swage | 0.228 in | 5.79 mm | 9.22 mm | 0.363 in | Tin | 0.094 in | 2.39 mm | Brass Alloy | Single End | 200 Áin | 5.08 Ám | Non-Insulated | 2.77 mm | 0.109 in | 0.09 in | 2.29 mm |
Mill-Max Manufacturing Corp. | 2.41 mm | 0.095 " | PC Pin | 0.04 in | 1.02 mm | 1.57 mm | 0.062 " | Through Hole | Swage | 0.228 in | 5.79 mm | 9.22 mm | 0.363 in | Tin-Lead | 0.094 in | 2.39 mm | Brass Alloy | Single End | 200 Áin | 5.08 Ám | Non-Insulated | 2.77 mm | 0.109 in |
