282817 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

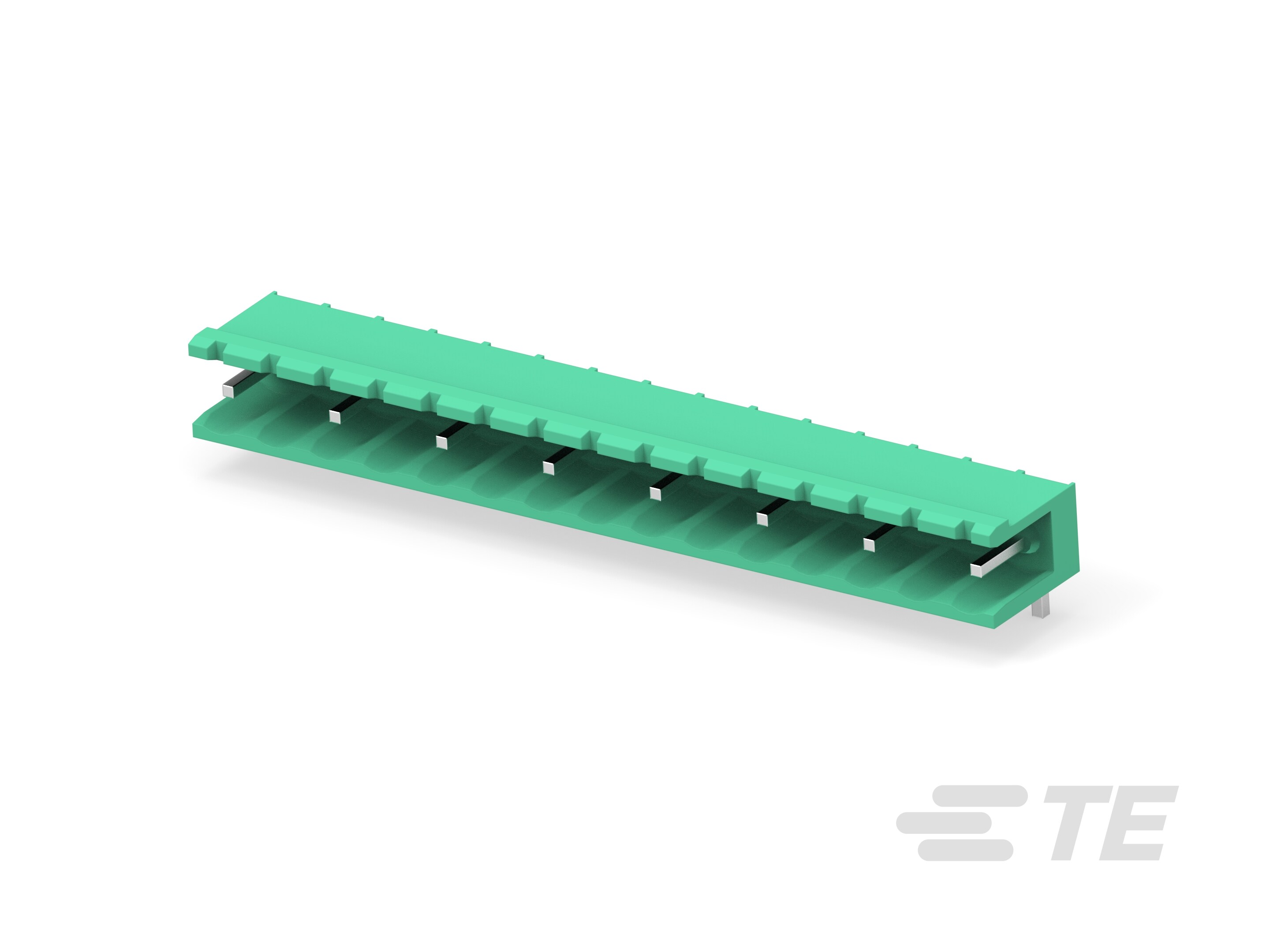

TERM BLOCK HDR 11POS 90DEG 10MM
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Termination Style | Number of Positions | Header Orientation | Pitch [x] | Pitch [x] | Mounting Type | Contact Tail Length | Contact Tail Length | Contact Mating Finish | Number of Levels | Color | Positions Per Level | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Copper Alloy | -40 °C | 110 °C | UL94 V-0 | Solder | 11 | 90° Right Angle | 0.394 in | 10 mm | Through Hole | 3.5 mm | 0.138 in | Tin | 1 | Green | 11 | Header Male Pins Shrouded (2 Side) |
TE Connectivity Raychem Cable Protection | Copper Alloy | -40 °C | 110 °C | UL94 V-0 | Solder | 9 | 90° Right Angle | 0.394 in | 10 mm | Through Hole | 3.5 mm | 0.138 in | Tin | 1 | Green | 9 | Header Male Pins Shrouded (2 Side) |
TE Connectivity Raychem Cable Protection | Copper Alloy | -40 °C | 110 °C | UL94 V-0 | Solder | 6 | 90° Right Angle | 0.394 in | 10 mm | Through Hole | 3.5 mm | 0.138 in | Tin | 1 | Green | 6 | Header Male Pins Shrouded (2 Side) |
 TE Connectivity Raychem Cable Protection | Copper Alloy | -40 °C | 110 °C | UL94 V-0 | Solder | 8 | 90° Right Angle | 0.394 in | 10 mm | Through Hole | 3.5 mm | 0.138 in | Tin | 1 | Green | 8 | Header Male Pins Shrouded (2 Side) |
TE Connectivity Raychem Cable Protection | Copper Alloy | -40 °C | 110 °C | UL94 V-0 | Solder | 90° Right Angle | 0.394 in | 10 mm | Through Hole | 3.5 mm | 0.138 in | Tin | 1 | Green | 3 | Header Male Pins Shrouded (2 Side) | |
TE Connectivity Raychem Cable Protection | Copper Alloy | -40 °C | 110 °C | UL94 V-0 | Solder | 7 | 90° Right Angle | 0.394 in | 10 mm | Through Hole | 3.5 mm | 0.138 in | Tin | 1 | Green | 7 | Header Male Pins Shrouded (2 Side) |
TE Connectivity Raychem Cable Protection | Copper Alloy | -40 °C | 110 °C | UL94 V-0 | Solder | 90° Right Angle | 0.394 in | 10 mm | Through Hole | 3.5 mm | 0.138 in | Tin | 1 | Green | 5 | Header Male Pins Shrouded (2 Side) |
