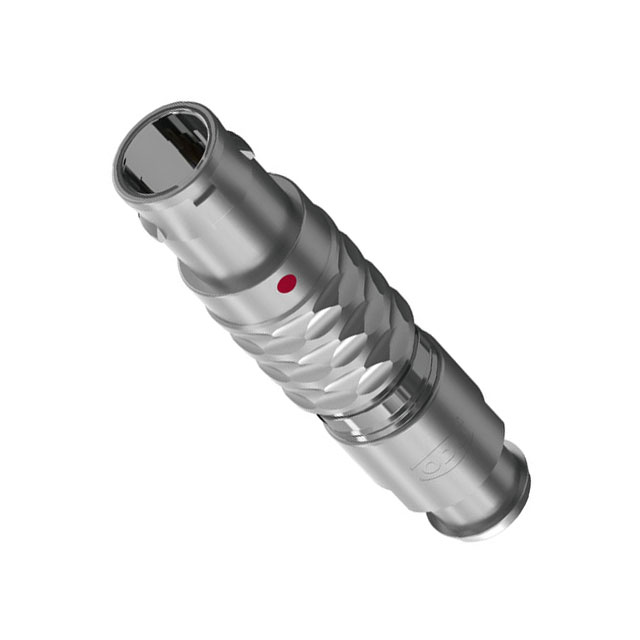

S2CL0C-P Series
Manufacturer: ODU
Beta
⌘K
CONN PLUG MALE 4P GOLD SLDR CUP
| Part | Current Rating (Amps) | Shell Size - Insert | Primary Material | Fastening Type | Applications | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Shell Finish | Number of Positions | Contact Finish - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Material | Shielding | Ingress Protection | Orientation | Backshell Material, Plating | Insert Material | Shell Material | Color | Features | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
4 A | 00 | Metal | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | 2 mm | 1.5 mm | 0.079 " | 0.059 " | Chrome over Nickel | 4 | Gold | 120 °C | -40 C | Free Hanging (In-Line) | Brass | Shielded | IP50 - Dust Protected | 0 | Brass Chrome over Nickel | Polyetheretherketone (PEEK) | Brass | Silver | Backshell | Plug Male Pins | |
4 A | 00 | Metal | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | 3 mm | 2.5 mm | 0.118 " | 0.098 in | Chrome over Nickel | Gold | 120 °C | -40 C | Free Hanging (In-Line) | Brass | IP50 - Dust Protected | 0 | Brass Chrome over Nickel | Polyetheretherketone (PEEK) | Brass | Silver | Backshell Strain Relief | Plug Male Pins | |||
4 A | 00 | Metal | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | 1.5 mm | 1 mm | 0.059 in | 0.039 in | Chrome over Nickel | Gold | 120 °C | -40 C | Free Hanging (In-Line) | Brass | Shielded | IP50 - Dust Protected | 0 | Brass Chrome over Nickel | Polyetheretherketone (PEEK) | Brass | Silver | Backshell | Plug Male Pins | ||
4 A | 00 | Metal | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | 3.5 mm | 3 mm | 0.138 in | 0.118 in | Chrome over Nickel | 4 | Gold | 120 °C | -40 C | Free Hanging (In-Line) | Brass | Shielded | IP50 - Dust Protected | 0 | Brass Chrome over Nickel | Polyetheretherketone (PEEK) | Brass | Silver | Backshell | Plug Male Pins | |
4 A | 00 | Metal | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | 2 mm | 1.5 mm | 0.079 " | 0.059 " | Chrome over Nickel | 2 | Gold | 120 °C | -40 C | Free Hanging (In-Line) | Brass | Shielded | IP50 - Dust Protected | 0 | Brass Chrome over Nickel | Polyetheretherketone (PEEK) | Brass | Silver | Backshell | Plug Male Pins | |
4 A | 00 | Metal | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | 1 mm | 0.5 mm | 0.039 in | 0.02 in | Chrome over Nickel | 4 | Gold | 120 °C | -40 C | Free Hanging (In-Line) | Brass | Shielded | IP50 - Dust Protected | 0 | Brass Chrome over Nickel | Polyetheretherketone (PEEK) | Brass | Silver | Backshell | Plug Male Pins | |
4 A | 00 | Metal | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | 0.098 in 2.5 mm | 0.079 in 2 mm | Chrome over Nickel | 4 | Gold | 120 °C | -40 C | Free Hanging (In-Line) | Brass | IP50 - Dust Protected | 0 | Brass Chrome over Nickel | Polyetheretherketone (PEEK) | Brass | Silver | Backshell Strain Relief | Plug Male Pins | ||||
4 A | 00 | Metal | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | 0.098 in 2.5 mm | 0.079 in 2 mm | Chrome over Nickel | 2 | Gold | 120 °C | -40 C | Free Hanging (In-Line) | Brass | IP50 - Dust Protected | 0 | Brass Chrome over Nickel | Polyetheretherketone (PEEK) | Brass | Silver | Backshell Strain Relief | Plug Male Pins | ||||
4 A | 00 | Metal | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | 3 mm | 2.5 mm | 0.118 " | 0.098 in | Chrome over Nickel | 2 | Gold | 120 °C | -40 C | Free Hanging (In-Line) | Brass | IP50 - Dust Protected | 0 | Brass Chrome over Nickel | Polyetheretherketone (PEEK) | Brass | Silver | Backshell Strain Relief | Plug Male Pins | ||
4 A | 00 | Metal | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | 0.098 in 2.5 mm | 0.079 in 2 mm | Chrome over Nickel | Gold | 120 °C | -40 C | Free Hanging (In-Line) | Brass | IP50 - Dust Protected | 0 | Brass Chrome over Nickel | Polyetheretherketone (PEEK) | Brass | Silver | Backshell Strain Relief | Plug Male Pins |
