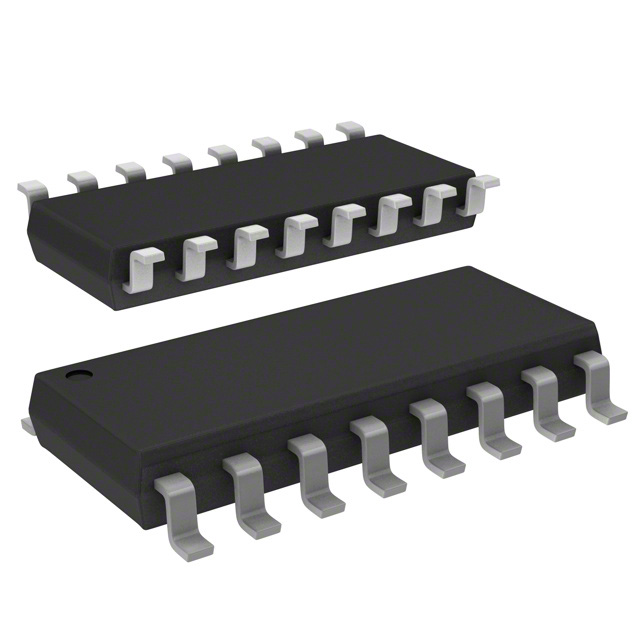

4816P Series

Catalog

RESISTORS NETWORK-THICK FILM SMD MED BODY

...

Part	Tolerance	Circuit Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Resistance (Ohms)	Mounting Type	Temperature Coefficient	Power Per Element	Number of Resistors	Qualification	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Grade	Number of Pins	Supplier Device Package	Package / Case	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Resistance (Ohms)	Resistance (Ohms) [custom]
Bourns Inc. 4816P-T02-203	2 %	Bussed	2.4 mm	0.094 in	20 kOhms	Surface Mount	100 ppm/°C	80 mW	15	AEC-Q200	11.18 mm	0.44 in	0.22 in	5.59 mm	Automotive	16	16-SOM	16-SOIC	0.22 " 5.59 mm	-55 C	125 °C
Bourns Inc. 4816P-T02-563LF	2 %	Bussed	2.4 mm	0.094 in	56 kOhms	Surface Mount	100 ppm/°C	80 mW	15	AEC-Q200	11.18 mm	0.44 in	0.22 in	5.59 mm	Automotive	16	16-SOM	16-SOIC	0.22 " 5.59 mm	-55 C	125 °C
Bourns Inc. 4816P-T01-563LF	2 %	Isolated	2.4 mm	0.094 in	56 kOhms	Surface Mount	100 ppm/°C	160 mW	8	AEC-Q200	11.18 mm	0.44 in	0.22 in	5.59 mm	Automotive	16	16-SOM	16-SOIC	0.22 " 5.59 mm	-55 C	125 °C
Bourns Inc. 4816P-2-502	2 %	Bussed	2.4 mm	0.094 in	5 kOhms	Surface Mount	100 ppm/°C	80 mW	15	AEC-Q200	11.18 mm	0.44 in	0.22 in	5.59 mm	Automotive	16	16-SOM	16-SOIC	0.22 " 5.59 mm	-55 C	125 °C
Bourns Inc. 4816P-1-303F	1 %	Isolated	2.4 mm	0.094 in		Surface Mount	100 ppm/°C	160 mW	8	AEC-Q200	11.18 mm	0.44 in	0.22 in	5.59 mm	Automotive	16	16-SOM	16-SOIC	0.22 " 5.59 mm	-55 C	125 °C	30k
Bourns Inc. 4816P-3-800/211	2 % 2 Ohm	Dual Terminator	2.4 mm	0.094 in		Surface Mount	100 ppm/°C	80 mW	28	AEC-Q200	11.18 mm	0.44 in	0.22 in	5.59 mm	Automotive	16	16-SOM	16-SOIC	0.22 " 5.59 mm	-55 C	125 °C		80 Ohms 210 Ohms
Bourns Inc. 4816P-1-471F	1 %	Isolated	2.4 mm	0.094 in	470 Ohms	Surface Mount	100 ppm/°C	160 mW	8	AEC-Q200	11.18 mm	0.44 in	0.22 in	5.59 mm	Automotive	16	16-SOM	16-SOIC	0.22 " 5.59 mm	-55 C	125 °C
Bourns Inc. 4816P-T02-684LF	2 %	Bussed	2.4 mm	0.094 in	680 kOhms	Surface Mount	100 ppm/°C	80 mW	15	AEC-Q200	11.18 mm	0.44 in	0.22 in	5.59 mm	Automotive	16	16-SOM	16-SOIC	0.22 " 5.59 mm	-55 C	125 °C
Bourns Inc. 4816P-T01-271	2 %	Isolated	2.4 mm	0.094 in	270 Ohms	Surface Mount	100 ppm/°C	160 mW	8	AEC-Q200	11.18 mm	0.44 in	0.22 in	5.59 mm	Automotive	16	16-SOM	16-SOIC	0.22 " 5.59 mm	-55 C	125 °C
Bourns Inc. 4816P-2-471LF	2 %	Bussed	2.4 mm	0.094 in	470 Ohms	Surface Mount	100 ppm/°C	80 mW	15	AEC-Q200	11.18 mm	0.44 in	0.22 in	5.59 mm	Automotive	16	16-SOM	16-SOIC	0.22 " 5.59 mm	-55 C	125 °C
