160811 Series

Catalog

CONN QC RCPT 10-12AWG 0.250

Part	Contact Finish	Gender	Tab Length	Tab Length	Length - Overall [x]	Length - Overall [x]	Terminal Type	Insulation	Termination	Contact Material	Tab Thickness	Tab Thickness	Features	Mounting Type	Tab Width	Tab Width	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min]

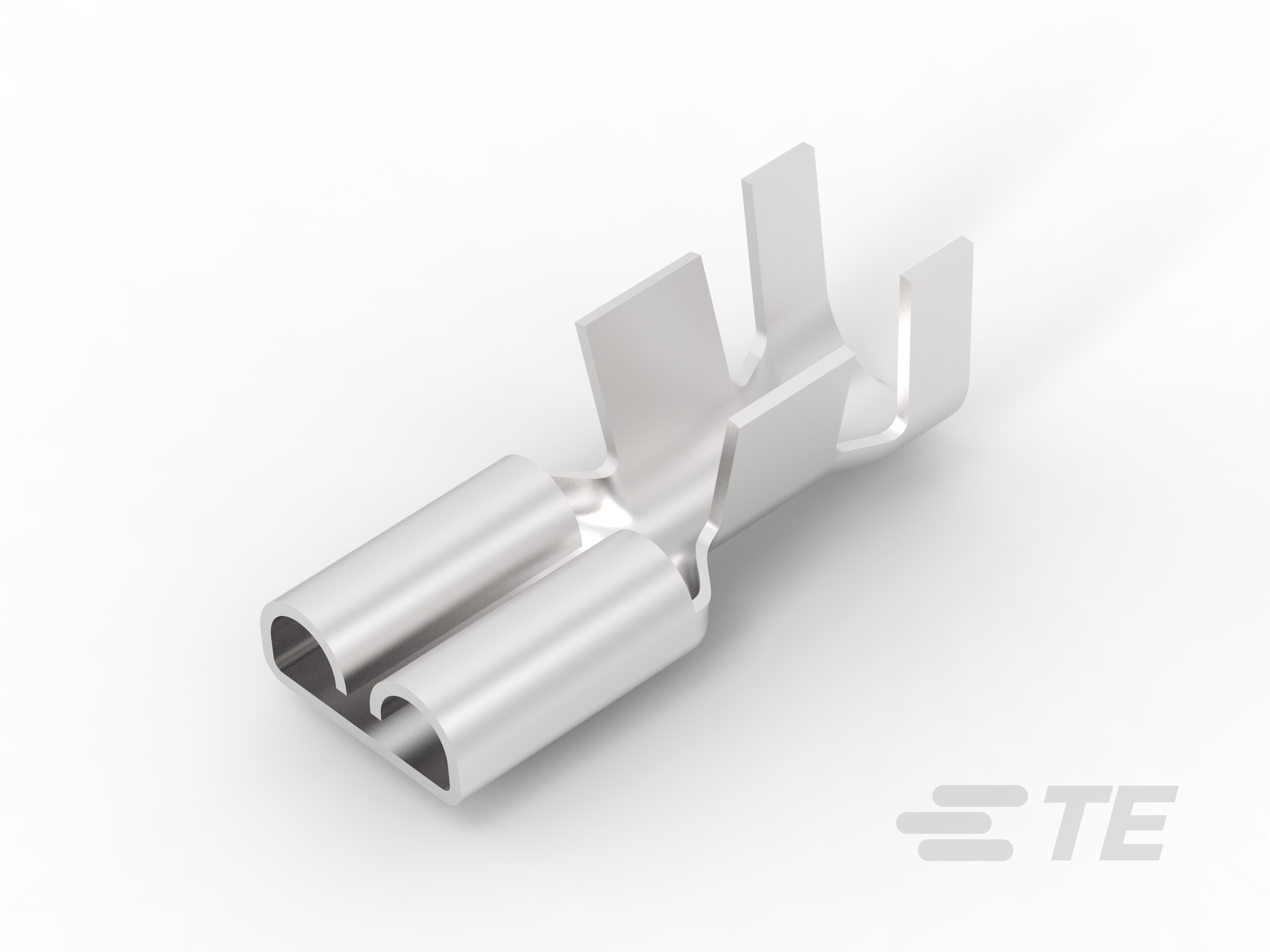

TE Connectivity Raychem Cable Protection 160811-5	Tin	Female	0.303 in	7.7 mm	0.756 in	19.2 mm	Standard	Non-Insulated	Crimp	Brass	0.032 in	0.81 mm	Serrated Termination	Free Hanging (In-Line)	6.35 mm	0.25 in	12 AWG	10 AWG	5.1 mm	0.201 in	0.134 in	3.4 mm
TE Connectivity Raychem Cable Protection 160811-7		Female	0.303 in	7.7 mm	0.756 in	19.2 mm	Standard	Non-Insulated	Crimp	Brass	0.032 in	0.81 mm	Serrated Termination	Free Hanging (In-Line)	6.35 mm	0.25 in	12 AWG	10 AWG	5.1 mm	0.201 in	0.134 in	3.4 mm
