2563200 Series
Manufacturer: NorComp Inc.
Beta
⌘K

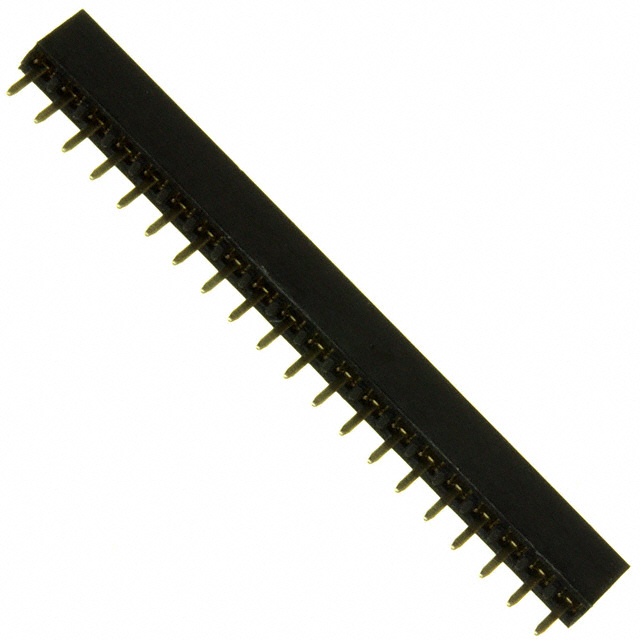

25632001RP2 ROHS COMPLIANT: YES
| Part | Contact Shape | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material | Contact Finish Thickness - Mating | Number of Positions | Contact Type | Insulation Color | Number of Positions Loaded | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Mounting Type | Pitch - Mating | Pitch - Mating | Fastening Type | Contact Finish - Post | Connector Type | Termination | Contact Length - Post | Contact Length - Post | Contact Finish - Mating | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Square | 2.54 µm | 100 µin | Phosphor Bronze | Flash | 20 | Female Socket | Black | All | 1 | -40 C | 105 ░C | 4.3 mm | 0.169 " | Through Hole | 0.079 " | 2 mm | Push-Pull | Tin | Receptacle | Solder | 2.5 mm | 0.098 in | Gold | UL94 V-0 |
