NPPN092 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 18POS 0.079 GOLD SMD

Part	Contact Material	Insulation Material	Contact Finish Thickness - Post	Contact Shape	Contact Type	Features	Number of Positions	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Termination	Insulation Color	Number of Rows [custom]	Contact Finish - Post	Number of Positions Loaded	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Fastening Type	Contact Finish - Mating	Mounting Type	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Current Rating (Amps)	Insulation Height	Contact Length - Post [custom]	Contact Length - Post	Contact Length - Post

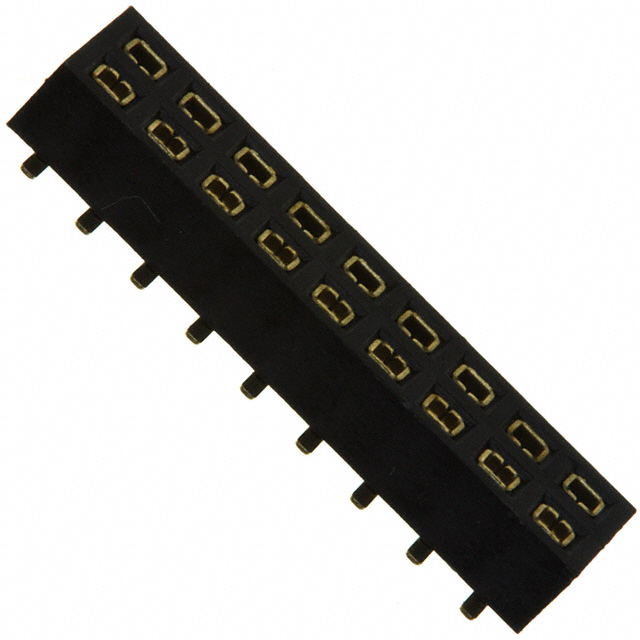

Sullins Connector Solutions NPPN092GHNP-RC	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Flash	Square	Female Socket	Board Guide	18	Flash	2 mm	0.079 in	Solder	Black	2	Gold	All	UL94 V-0	-40 C	105 ░C	Header Bottom Entry	Push-Pull	Gold	Surface Mount	0.079 "	2 mm

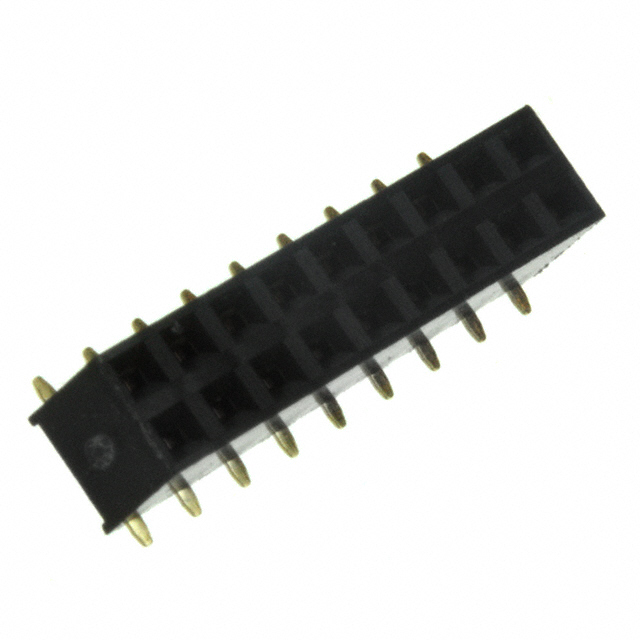

Sullins Connector Solutions NPPN092FFKP-RC	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Flash	Square	Female Socket	Board Guide	18	Flash	2 mm	0.079 in	Solder	Black	2	Gold	All	UL94 V-0	-40 C	105 ░C	Header	Push-Pull	Gold	Surface Mount	0.079 "	2 mm	4.4 mm	0.173 in	2 A
Sullins Connector Solutions NPPN092AFEN-RC	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Flash	Square	Female Socket		18	Flash	2 mm	0.079 in	Solder	Black	2	Gold	All	UL94 V-0	-40 C	105 ░C	Header	Push-Pull	Gold	Through Hole	0.079 "	2 mm		4.3 mm		0.169 "	0.11 in	2.79 mm

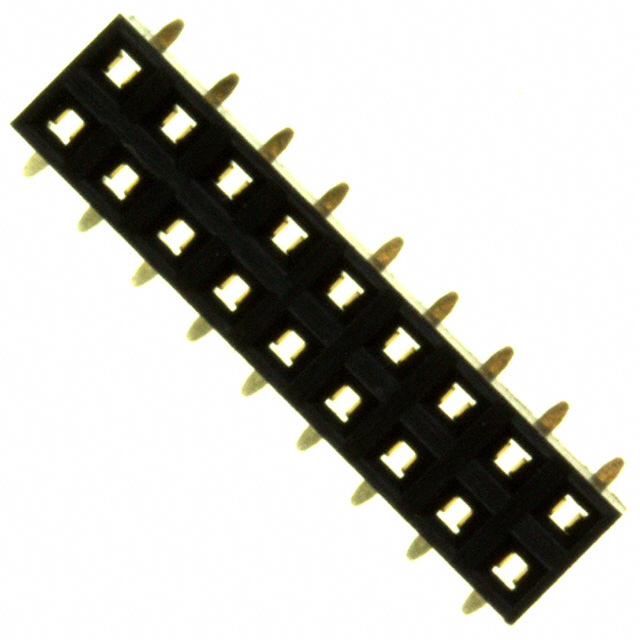

Sullins Connector Solutions NPPN092FFKS-RC	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Flash	Square	Female Socket		18	Flash	2 mm	0.079 in	Solder	Black	2	Gold	All	UL94 V-0	-40 C	105 ░C	Header	Push-Pull	Gold	Surface Mount	0.079 "	2 mm	4.4 mm	0.173 in	2 A

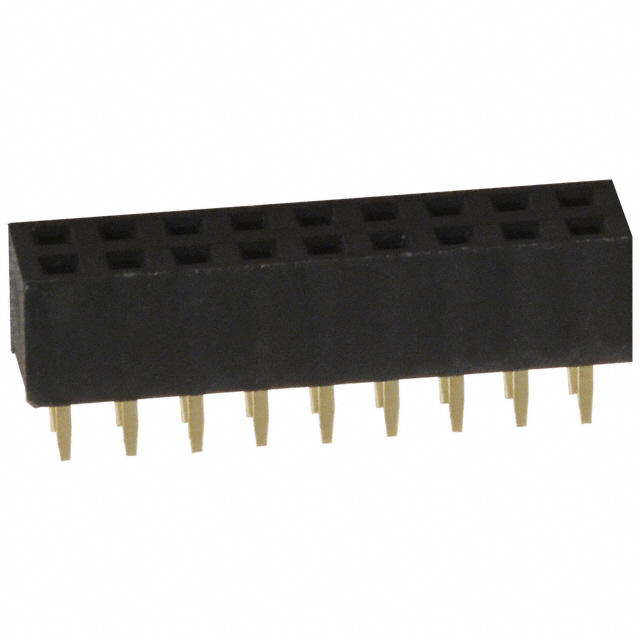

Sullins Connector Solutions NPPN092AFCN-RC	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Flash	Square	Female Socket		18	Flash	2 mm	0.079 in	Solder	Black	2	Gold	All	UL94 V-0	-40 C	105 ░C	Header	Push-Pull	Gold	Through Hole	0.079 "	2 mm		4.3 mm		0.169 "		2.4 mm	0.094 in
