T75 Series

Catalog

CABLE ACCESSORIES SPIRAL WRAP FLAME RETARDANT POLYETHYLENE BLACK

Part	Operating Temperature [Min]	Operating Temperature [Max]	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Color	Length	Length	Type	Type Attributes	Heat Protection	Material Flammability Rating	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Material	Abrasion Protection	Wall Thickness	Wall Thickness	Environment Protection	Wall Thickness [custom]
Panduit Corp T75FR-C20Y	-20 ░C	50 °C	5 in	127 mm	Black	100 '	30.48 m	Spiral Wrap	Harness	Flame Retardant	UL94 V-0	19.05 mm	0.75 in	Polyethylene (PE)	Abrasion Resistant	1.65 mm	0.065 in
Panduit Corp T75F-C0	-40 C	50 °C	5 in	127 mm	Black	100 '	30.48 m	Spiral Wrap	Harness		UL94 HB	19.05 mm	0.75 in	Polyethylene (PE)	Abrasion Resistant	1.65 mm	0.065 in	Weather Resistant
Panduit Corp T75F-T0	-40 C	50 °C	5 in	127 mm	Black	200 ft	60.96 m	Spiral Wrap	Harness		UL94 HB	19.05 mm	0.75 in	Polyethylene (PE)	Abrasion Resistant	1.65 mm	0.065 in	Weather Resistant
Panduit Corp T75FR-CY	-20 ░C	50 °C	5 in	127 mm	Natural White	100 '	30.48 m	Spiral Wrap	Harness	Flame Retardant	UL94 V-0	19.05 mm	0.75 in	Polyethylene (PE)	Abrasion Resistant	1.65 mm	0.065 in
Panduit Corp T75R-CY	-40 C	50 °C	5 in	127 mm	Natural White	100 '	30.48 m	Spiral Wrap	Harness	Fire Resistant	UL94 V-2	19.05 mm	0.75 in	Polyethylene (PE)	Abrasion Resistant	1.65 mm	0.065 in

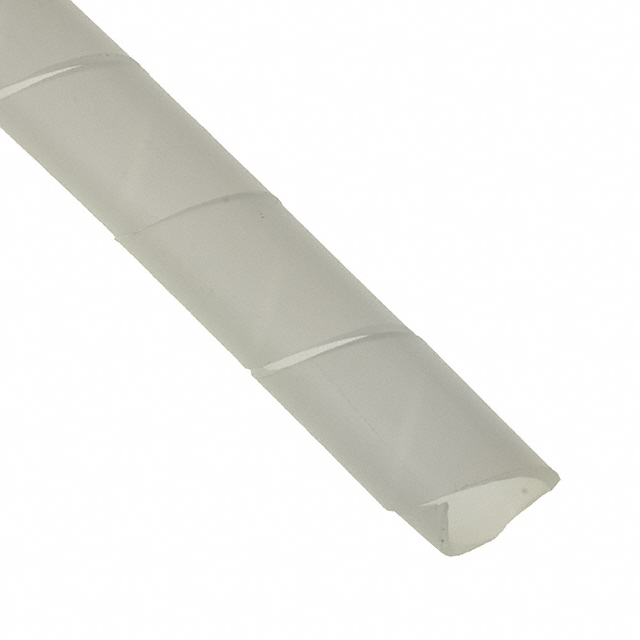

Panduit Corp T75F-C	-40 C	50 °C	5 in	127 mm	Natural	100 '	30.48 m	Spiral Wrap	Harness		UL94 HB	19.05 mm	0.75 in	Polyethylene (PE)	Abrasion Resistant	1.65 mm	0.065 in
Panduit Corp T75F-T	-40 C	50 °C	5 in	127 mm	Natural	200 ft	60.96 m	Spiral Wrap	Harness		UL94 HB	19.05 mm	0.75 in	Polyethylene (PE)	Abrasion Resistant	1.65 mm	0.065 in
Panduit Corp T75T-X	-270 °C	180 °C	5 in	127 mm	Natural	10 ft	3.05 m	Spiral Wrap	Harness		UL94 V-0	19.05 mm	0.75 in	Polytetrafluoroethylene (PTFE)	Abrasion Resistant	0.76 mm			0.03 "
Panduit Corp T75NZFR-C20	-40 C	65 °C	5 in	127 mm	Black	100 '	30.48 m	Spiral Wrap	Harness	Flame Retardant	UL94 V-0	19.05 mm	0.75 in	Polyamide (PA6) Nylon 6 Halogen Free	Abrasion Resistant	1.02 mm	0.04 in
Panduit Corp T75N-C0	-40 C	65 °C	5 in	127 mm	Black	100 '	30.48 m	Spiral Wrap	Harness		UL94 HB	19.05 mm	0.75 in		Abrasion Resistant	1.02 mm	0.04 in	Weather Resistant
