AWHW2 40 Series

Catalog

CONN HEADER VERT 40POS 2.54MM

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Termination	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Contact Material	Fastening Type	Insulation Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Finish - Mating	Number of Positions Loaded	Material Flammability Rating	Contact Type	Pitch - Mating	Pitch - Mating	Shrouding	Mounting Type	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Contact Finish - Post	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Number of Rows [custom]	Number of Positions	Contact Finish Thickness - Mating	Contact Length - Post [custom]	Row Spacing - Mating	Row Spacing - Mating

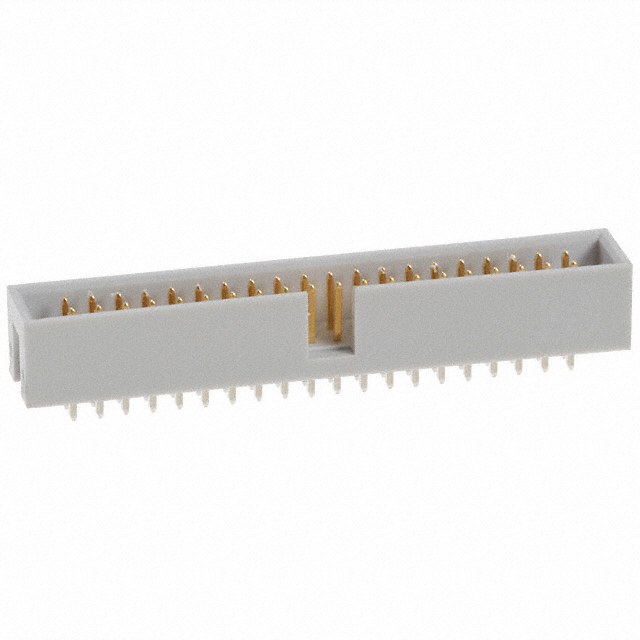

Assmann WSW Components AWHW40G-0102-T-R	0.76 Ám	30 Áin	Gray	Solder	Board to Cable/Wire	0.1 in	2.54 mm	Square	Brass	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled	Header	-40 C	105 ░C	Keying Slot	Gold	All	UL94 V-0	Male Pin	0.1 "	2.54 mm	Shrouded - 4 Wall	Through Hole	0.224 in	5.7 mm	3 A	Tin	0.354 in	9 mm	0.13 "	3.3 mm	2	40
Assmann WSW Components AWHW40A-0202-T-R			Gray	Solder	Board to Cable/Wire	0.1 in	2.54 mm	Square	Brass	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled	Header	-40 C	105 ░C	Keying Slot	Gold	All	UL94 V-0	Male Pin	0.1 "	2.54 mm	Shrouded - 4 Wall	Right Angle Through Hole	0.224 in	5.7 mm	3 A	Tin	0.352 in	8.94 mm	0.124 in	3.15 mm	2	40	Flash
Assmann WSW Components AWHW2 40A-0202			Black	Solder	Board to Cable/Wire			Square	Brass	Push-Pull	Glass Filled Nylon 9T Polyamide (PA9T)	Header	-40 C	105 ░C	Keying Slot	Gold	All	UL94 V-0	Male Pin	0.079 "	2 mm	Shrouded - 4 Wall	Right Angle Through Hole	0.157 in	4 mm	1.5 A		0.217 in	5.51 mm		2.79 mm	2	40	Flash	0.11 in	2 mm	0.079 in
Assmann WSW Components AWHW40G-0202-T-R			Gray	Solder	Board to Cable/Wire	0.1 in	2.54 mm	Square	Brass	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled	Header	-40 C	105 ░C	Keying Slot	Gold	All	UL94 V-0	Male Pin	0.1 "	2.54 mm	Shrouded - 4 Wall	Through Hole	0.224 in	5.7 mm	3 A	Tin	0.354 in	9 mm	0.13 "	3.3 mm	2	40	Flash
