TUSB1044 Series
USB Type-C™ 10-Gbps multi-protocol bi-directional linear redriver
Manufacturer: Texas Instruments
Catalog
USB Type-C™ 10-Gbps multi-protocol bi-directional linear redriver
| Part | Type | Supplied Contents | Function | Utilized IC / Part | Signal Conditioning | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Package / Case | Data Rate (Max) | Mounting Type | Capacitance - Input | Voltage - Supply [Max] | Voltage - Supply [Min] | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

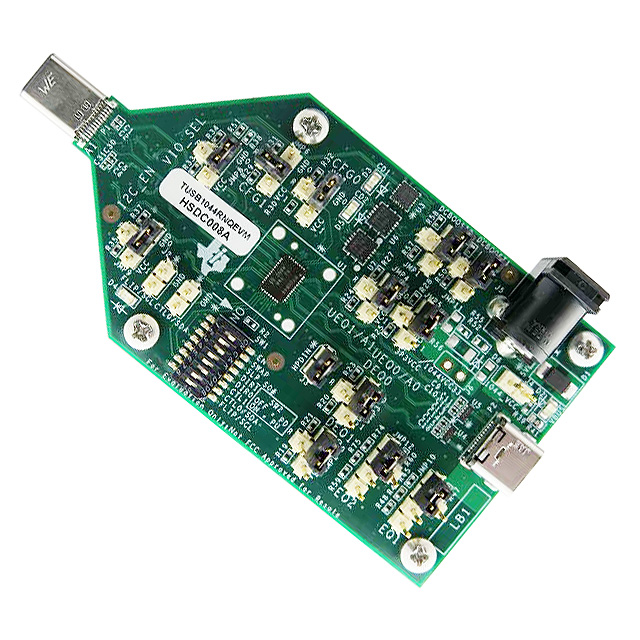

 Texas Instruments | Interface | Board(s) | USB Type-C® | TUSB1044 | |||||||||||
 Texas Instruments | ReDriver | Input Equalization | 70 °C | 0 °C | 40-WQFN (6x4) | 40-WFQFN Exposed Pad | 10 Gbps | Surface Mount | 5 pF | 3.6 V | 3 V | USB | |||
Texas Instruments | ReDriver | Input Equalization | 70 °C | 0 °C | 40-WQFN (6x4) | 40-WFQFN Exposed Pad | 10 Gbps | Surface Mount | 5 pF | 3.6 V | 3 V | USB | |||
Texas Instruments | ReDriver | Input Equalization | 85 °C | -40 °C | 40-WQFN (6x4) | 40-WFQFN Exposed Pad | 10 Gbps | Surface Mount | 5 pF | 3.6 V | 3 V | USB |
Key Features
• Protocol agnostic reversible 4 channel linear redriver supporting up to 10GbpsUSB Type-C with USB 3.1 Gen 2 and DisplayPort 2.1 as alternate modeSupports processors with USB 3.1 and DisplayPort mux integrated for Type-C applicationsSupports signal conditioning inside Type-C cableCross-point mux for SBU signalsLinear equalization up to 11dB at 4.05GHzGPIO and I2C control for channel direction and equalizationAdvanced power management by monitoring USB power states and snooping DP link trainingConfiguration through GPIO or I2CHot-plug capableSingle 3.3V supplyIndustrial temperature: –40°C to 85°C (TUSB1044I)Commercial temperature: 0°C to 70°C (TUSB1044)4mm × 6mm, 0.4mm Pitch, 40-pin QFN packageProtocol agnostic reversible 4 channel linear redriver supporting up to 10GbpsUSB Type-C with USB 3.1 Gen 2 and DisplayPort 2.1 as alternate modeSupports processors with USB 3.1 and DisplayPort mux integrated for Type-C applicationsSupports signal conditioning inside Type-C cableCross-point mux for SBU signalsLinear equalization up to 11dB at 4.05GHzGPIO and I2C control for channel direction and equalizationAdvanced power management by monitoring USB power states and snooping DP link trainingConfiguration through GPIO or I2CHot-plug capableSingle 3.3V supplyIndustrial temperature: –40°C to 85°C (TUSB1044I)Commercial temperature: 0°C to 70°C (TUSB1044)4mm × 6mm, 0.4mm Pitch, 40-pin QFN package
Description
AI
The TUSB1044 is a USB Type-C Alt Mode redriver switch supporting data rates up to 10Gbps. This protocol-agnostic linear redriver is capable of supporting USB Type-C Alt Mode interfaces including DisplayPort.
The TUSB1044 provides several levels of receive linear equalization to compensate for inter-symbol interference (ISI) due to cable and board trace loss. Operates on a single 3.3V supply and comes in a commercial and industrial temperature range.
All four lanes of the TUSB1044 are reversible making it a versatile signal conditioner that can be used in many applications.
The TUSB1044 is a USB Type-C Alt Mode redriver switch supporting data rates up to 10Gbps. This protocol-agnostic linear redriver is capable of supporting USB Type-C Alt Mode interfaces including DisplayPort.
The TUSB1044 provides several levels of receive linear equalization to compensate for inter-symbol interference (ISI) due to cable and board trace loss. Operates on a single 3.3V supply and comes in a commercial and industrial temperature range.
All four lanes of the TUSB1044 are reversible making it a versatile signal conditioner that can be used in many applications.
