TPS549B22 Series

1.5-V to 18-V, 25-A synchronous SWIFT™ buck converter with differential remote sense and PMBus

Catalog

1.5-V to 18-V, 25-A synchronous SWIFT™ buck converter with differential remote sense and PMBus

Part	Current - Output	Function	Frequency - Switching	Mounting Type	Supplier Device Package	Number of Outputs	Output Type	Voltage - Output (Max) [Max]	Package / Case	Voltage - Output (Min/Fixed)	Output Configuration	Voltage - Input (Max) [Max]	Topology	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Voltage - Input [Min]	Voltage - Input [Max]	Frequency - Switching	Supplied Contents	Outputs and Type	Outputs and Type	Voltage - Output [Min]	Voltage - Output [Max]	Utilized IC / Part	Board Type	Regulator Topology	Main Purpose	Voltage - Output
Texas Instruments TPS549B22RVFT	25 A	Step-Down	Adjustable	Surface Mount	40-LQFN-CLIP (7x5)	1	Adjustable	5.5 V	40-PowerLFQFN	0.6 V	Positive	18 V	Buck	-40 °C	125 ¯C	1.5 V
Texas Instruments TPS549B22RVFR	25 A	Step-Down	Adjustable	Surface Mount	40-LQFN-CLIP (7x5)	1	Adjustable	5.5 V	40-PowerLFQFN	0.6 V	Positive	18 V	Buck	-40 °C	125 ¯C	1.5 V
Texas Instruments TPS54972EVM-222	9 A																3 V	4 V	700 kHz	Board(s)	Non-Isolated	1	0.42 V	1.75 V	TPS54972	Fully Populated	Buck	DC/DC Step Down

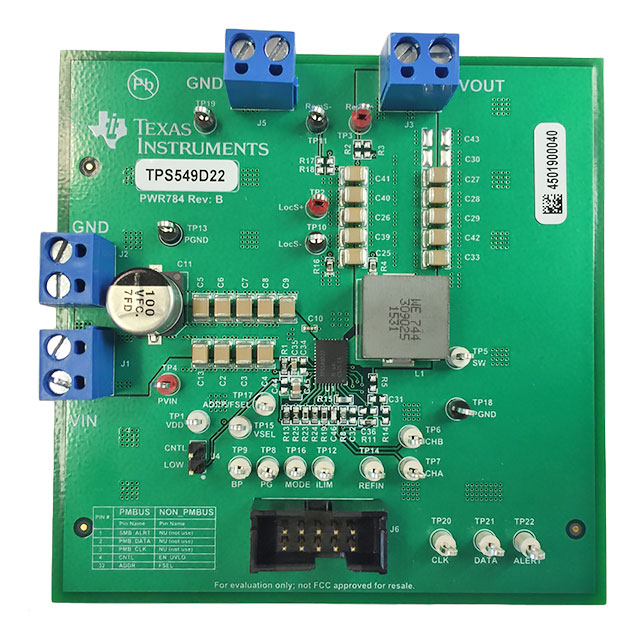

Texas Instruments TPS549D22EVM-784	40 A																5 V	16 V	650 kHz	Board(s)	Non-Isolated	1			TPS549D22	Fully Populated	Buck	DC/DC Step Down	1 V
Texas Instruments TPS549B22EVM-847	25 A																5 V	14 V	650 kHz	Board(s)	Non-Isolated	1			TPS549B22	Fully Populated	Buck	DC/DC Step Down	1 V
Texas Instruments TPS549A20EVM-737	15 A																5 V	18 V	1 MHz	Board(s)	Non-Isolated	1			TPS549A20	Fully Populated	Buck	DC/DC Step Down	1.2 V
Texas Instruments TPS549D22RVFT	40 A	Step-Down	Selectable	Surface Mount	40-LQFN-CLIP (7x5)	1	Adjustable	5.5 V	40-PowerLFQFN	0.6 V	Positive	22 V	Buck	-40 °C	125 ¯C	4.5 V
Texas Instruments TPS549A20RVER	15 A	Step-Down	Selectable	Surface Mount	28-VQFN-CLIP (4.5x3.5)	1	Adjustable	5.5 V	28-VFQFN Exposed Pad	0.6 V	Positive	20 V	Buck	-40 °C	125 °C	1.5 V

Catalog

1.5-V to 18-V, 25-A synchronous SWIFT™ buck converter with differential remote sense and PMBus

Key Features

• Input Voltage Range (PVIN): 1.5 V to 16 VInput Bias Voltage (VDD) Range: 4.5 V to 22 VOutput Voltage Range: 0.6 V to 5.5 VIntegrated, 2.9-mΩ and 1.2-mΩ Power MOSFETs With 40-A Continuous Output CurrentVoltage Reference 0.6 V to 1.2 V in 50-mV Steps Using VSEL Pin±0.5%, 0.9-VREFTolerance Range: –40°C to +125°C Junction TemperatureTrue Differential Remote Sense AmplifierD-CAP3™ Control LoopAdaptive On-Time Control with 8 PMBusTMFrequency: 315 kHz, 425 kHz, 550 kHz, 650 kHz, 825 kHz, 900 kHz, 1.025 MHz, 1.125 MHzTemperature Compensated and Programmable Current Limit with RILIMand OC ClampChoice of Hiccup or Latch-Off OVP or UVPVDD UVLO External Adjustment by Precision ENPrebias Start-up SupportEco-mode™ and FCCM SelectableFull Suite of Fault Protection and PGOODStandard VOUT_COMMAND and VOUT_MARGIN (HIGH and LOW)Pin-Strapping and On-the-Fly ProgrammingFault Reporting and WarningNVM Backup for Selected Commands1-MHz PMBus with PEC and SMB_ALRT#Create a Custom Design Using the TPS549D22 With theWEBENCH®Power DesignerInput Voltage Range (PVIN): 1.5 V to 16 VInput Bias Voltage (VDD) Range: 4.5 V to 22 VOutput Voltage Range: 0.6 V to 5.5 VIntegrated, 2.9-mΩ and 1.2-mΩ Power MOSFETs With 40-A Continuous Output CurrentVoltage Reference 0.6 V to 1.2 V in 50-mV Steps Using VSEL Pin±0.5%, 0.9-VREFTolerance Range: –40°C to +125°C Junction TemperatureTrue Differential Remote Sense AmplifierD-CAP3™ Control LoopAdaptive On-Time Control with 8 PMBusTMFrequency: 315 kHz, 425 kHz, 550 kHz, 650 kHz, 825 kHz, 900 kHz, 1.025 MHz, 1.125 MHzTemperature Compensated and Programmable Current Limit with RILIMand OC ClampChoice of Hiccup or Latch-Off OVP or UVPVDD UVLO External Adjustment by Precision ENPrebias Start-up SupportEco-mode™ and FCCM SelectableFull Suite of Fault Protection and PGOODStandard VOUT_COMMAND and VOUT_MARGIN (HIGH and LOW)Pin-Strapping and On-the-Fly ProgrammingFault Reporting and WarningNVM Backup for Selected Commands1-MHz PMBus with PEC and SMB_ALRT#Create a Custom Design Using the TPS549D22 With theWEBENCH®Power Designer

Description

The TPS549A20 is a small-sized, synchronous buck converter with anadaptive on-time D-CAP3 control mode. The device offers ease-of-use and low bill-of-material countfor space-conscious power systems. This device features high-performance integrated MOSFETs, accurate 0.6-V reference, andan integrated boost switch. Competitive features include very-low external-component count, fastload-transient response, auto-skip mode operation, internal soft-start control, and no requirementfor compensation. The device also features fault report viaPMBus to simplify the power supply design A forced continuous conduction mode helps meet tight voltage regulation accuracyrequirements for performance DSPs and FPGAs. The TPS549A20 is available in a28-pin VQFN-CLIP package and is specified from –40°C to 125°C ambient temperature. The TPS549A20 is a small-sized, synchronous buck converter with anadaptive on-time D-CAP3 control mode. The device offers ease-of-use and low bill-of-material countfor space-conscious power systems. This device features high-performance integrated MOSFETs, accurate 0.6-V reference, andan integrated boost switch. Competitive features include very-low external-component count, fastload-transient response, auto-skip mode operation, internal soft-start control, and no requirementfor compensation. The device also features fault report viaPMBus to simplify the power supply design A forced continuous conduction mode helps meet tight voltage regulation accuracyrequirements for performance DSPs and FPGAs. The TPS549A20 is available in a28-pin VQFN-CLIP package and is specified from –40°C to 125°C ambient temperature.
