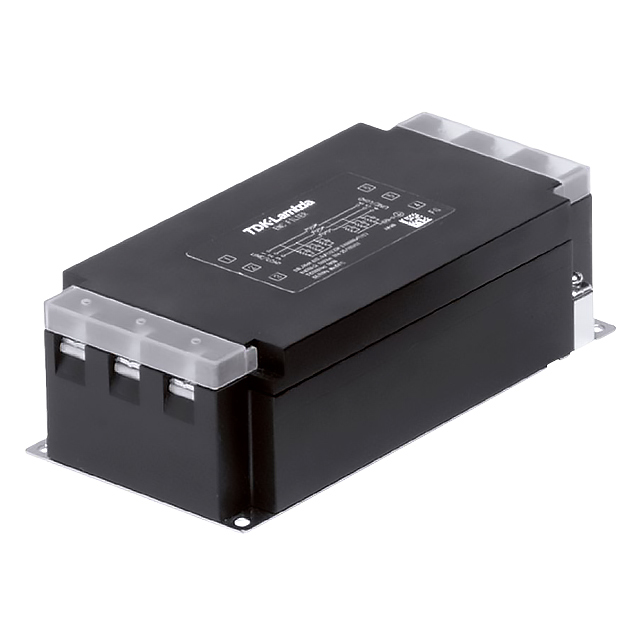

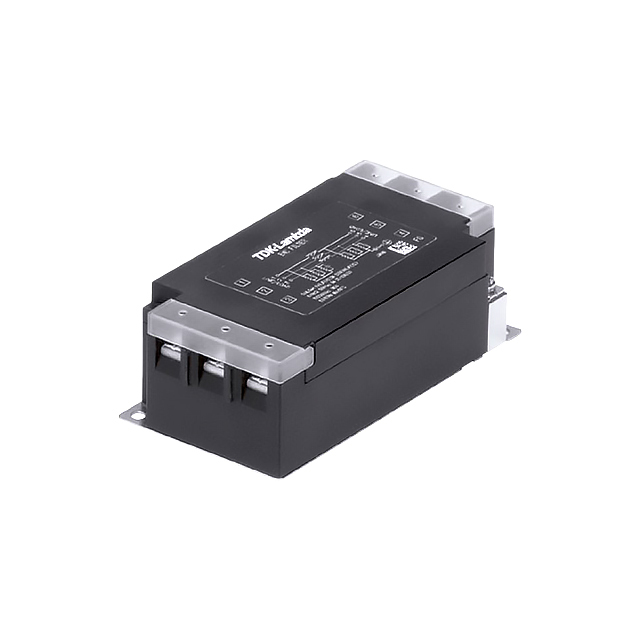

RTAN Series

Catalog

POWER LINE FILTER, GENERAL PURPOSE, 500 V, 20 A, THREE PHASE, 1 STAGE, DIN RAIL MOUNT

Part	Termination Style	Filter Type	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated AC	Mounting Type	Applications	Approval Agency	Voltage - Rated DC	Current
TDK Corporation RTAN-5020D	Terminal Block	Three Phase (Delta)	Single Stage	85 °C	-25 °C	500 V	DIN Rail	General Purpose	EN UL	500 V	20 A
TDK Corporation RTAN-5010D	Terminal Block	Three Phase (Delta)	Single Stage	85 °C	-25 °C	500 V	DIN Rail	General Purpose	EN UL	500 V	10 A
TDK Corporation RTAN-5030D	Terminal Block	Three Phase (Delta)	Single Stage	85 °C	-25 °C	500 V	DIN Rail	General Purpose	EN UL	500 V	30 A
TDK Corporation RTAN-5006D	Terminal Block	Three Phase (Delta)	Single Stage	85 °C	-25 °C	500 V	DIN Rail	General Purpose	EN UL	500 V	6 A
TDK Corporation RTAN-5006	Terminal Block	Three Phase (Delta)	Single Stage	85 °C	-25 °C	500 V	Chassis Mount	General Purpose	EN UL	500 V	6 A
TDK Corporation RTAN-5030	Terminal Block	Three Phase (Delta)	Single Stage	85 °C	-25 °C	500 V	Chassis Mount	General Purpose	EN UL	500 V	30 A
TDK Corporation RTAN-5060	Terminal Block	Three Phase (Delta)	Single Stage	85 °C	-25 °C	500 V	Chassis Mount	General Purpose	EN UL	500 V	60 A
