KWDELSS2 Series

Catalog

LED COOL WHITE DIFFUSED SMD

Part	Lens Transparency	Mounting Type	Height (Max) [z]	Lens Color	Current - Test	Supplier Device Package	Color	Viewing Angle	Lens Style	Millicandela Rating	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Lens Size [y]	Lens Size [x]	Voltage - Forward (Vf) (Typ)

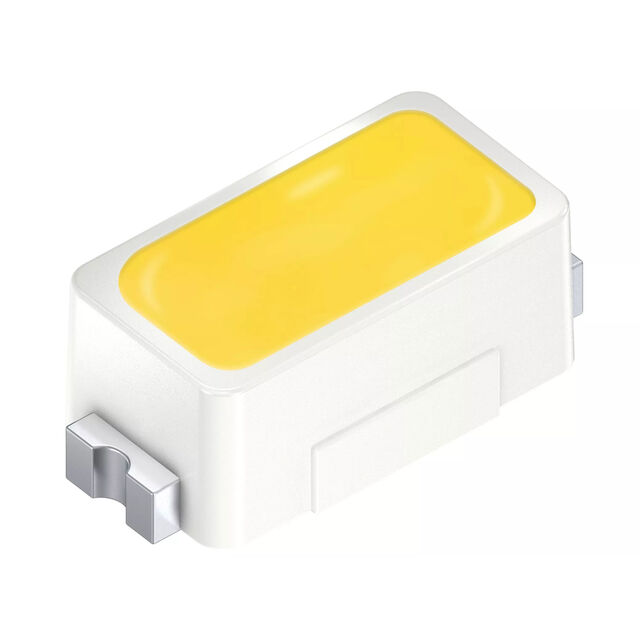

ams-OSRAM USA INC. KW DELSS2.CC-BXCY-4C6E-46A8-30-R18	Diffused	Surface Mount	0.7 mm	Yellow	30 mA	SMD	Cool White	120 °	Oval with Flat Top	2850 mcd	2-SMD Flat Leads	0.8 mm	1.4 mm	0.6 mm	1.23 mm	3.25 V

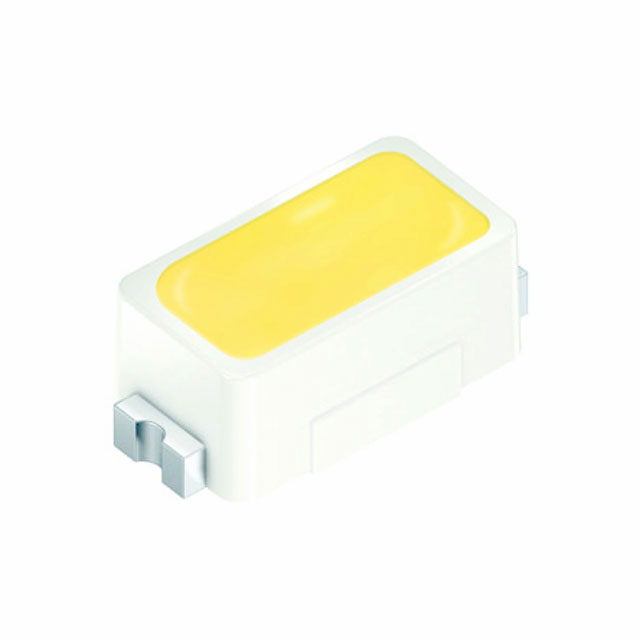

ams-OSRAM USA INC. KW DELSS2.CC-BXCY-4L8N-46A8-30-R18	Diffused	Surface Mount	0.7 mm	Yellow	30 mA	SMD	Neutral White	120 °	Oval with Flat Top	2850 mcd	2-SMD Flat Leads	0.8 mm	1.4 mm	0.6 mm	1.23 mm	3.25 V
ams-OSRAM USA INC. KW DELSS2.CC-BXCY-4H8I-46A8-30-R18	Diffused	Surface Mount	0.7 mm	Yellow	30 mA	SMD	Cool White	120 °	Oval with Flat Top	2850 mcd	2-SMD Flat Leads	0.8 mm	1.4 mm	0.6 mm	1.23 mm	3.25 V
ams-OSRAM USA INC. KW DELSS2.CC-BXCY-4O9Q-46A8-30-R18	Diffused	Surface Mount	0.7 mm	Yellow	30 mA	SMD	Warm White	120 °	Oval with Flat Top	2850 mcd	2-SMD Flat Leads	0.8 mm	1.4 mm	0.6 mm	1.23 mm	3.25 V
ams-OSRAM USA INC. KW DELSS2.CC-BXCY-4U9X-46A8-30-R18	Diffused	Surface Mount	0.7 mm	Yellow	30 mA	SMD	Warm White	120 °	Oval with Flat Top	2850 mcd	2-SMD Flat Leads	0.8 mm	1.4 mm	0.6 mm	1.23 mm	3.25 V
ams-OSRAM USA INC. KW DELSS2.CC-BXCY-4R9T-46A8-30-R18	Diffused	Surface Mount	0.7 mm	Yellow	30 mA	SMD	Warm White	120 °	Oval with Flat Top	2850 mcd	2-SMD Flat Leads	0.8 mm	1.4 mm	0.6 mm	1.23 mm	3.25 V
