882206 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

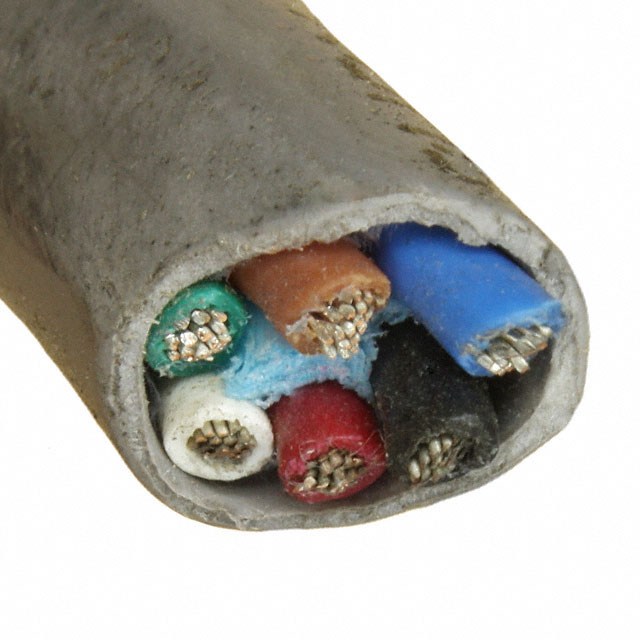

CABLE 6COND 22AWG SLATE 100'
| Part | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Jacket (Insulation) Material | Length [x] | Length [x] | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Jacket Color | Wire Gauge | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Insulation | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | 0.215 in | 5.46 mm | 6 | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | 28 AWG | 7 | UL Style 2464 | Slate | 22 AWG | 300 VDC | -20 ░C | 105 ░C | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 0.813 mm | 0.032 in |
