DW-50-07 Series

Catalog

CONN HDR 100POS 0.1 STACK T/H

Part	Number of Rows	Length - Stack Height [x]	Length - Stack Height [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Color	Row Spacing [x]	Row Spacing	Length - Tail [x]	Length - Tail [x]	Number of Positions	Pitch [x]	Pitch [x]	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Termination	Contact Finish - Post (Mating)	Mounting Type	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)
Samtec Inc. DW-50-07-T-D-300	2	0.3 in	7.62 mm	10.922 mm	0.43 in	Black	0.1 in	2.54 mm	0.11 in	2.794 mm	100	2.54 mm	0.1 in	0.02 in	0.508 mm	Solder	Tin	Through Hole
Samtec Inc. DW-50-07-L-D-212	2	0.212 in	5.385 mm	10.922 mm	0.43 in	Black	0.1 in	2.54 mm	0.11 in	2.794 mm	100	2.54 mm	0.1 in			Solder	Gold	Through Hole	0.25 Ám	10 Áin
Samtec Inc. DW-50-07-L-D-200	2			10.922 mm	0.43 in	Black	0.1 in	2.54 mm	0.11 in	2.794 mm	100	2.54 mm	0.1 in	0.12 in	3.048 mm	Solder	Gold	Through Hole	0.25 Ám	10 Áin
Samtec Inc. DW-50-07-G-S-250	1	0.25 in	6.35 mm	10.922 mm	0.43 in	Black			0.11 in	2.794 mm	50	2.54 mm	0.1 in	0.07 in	1.778 mm	Solder	Gold	Through Hole	0.25 Ám	10 Áin

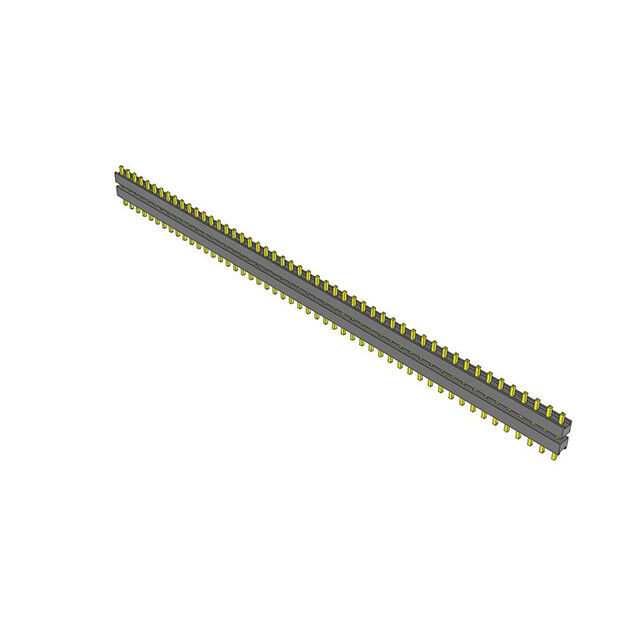

Samtec Inc. DW-50-07-T-S-250	1	0.25 in	6.35 mm	10.922 mm	0.43 in	Black			0.11 in	2.794 mm	50	2.54 mm	0.1 in	0.07 in	1.778 mm	Solder	Tin	Through Hole
Samtec Inc. DW-50-07-F-D-200	2			10.922 mm	0.43 in	Black	0.1 in	2.54 mm	0.11 in	2.794 mm	100	2.54 mm	0.1 in	0.12 in	3.048 mm	Solder	Gold	Through Hole	0.076 Ám	3 Áin
Samtec Inc. DW-50-07-T-S-200	1			10.922 mm	0.43 in	Black			0.11 in	2.794 mm	50	2.54 mm	0.1 in	0.12 in	3.048 mm	Solder	Tin	Through Hole
Samtec Inc. DW-50-07-T-S-315	1	0.315 in	8 mm	10.922 mm	0.43 in	Black			0.11 in	2.794 mm	50	2.54 mm	0.1 in	0.005 in	0.127 mm	Solder	Tin	Through Hole
Samtec Inc. DW-50-07-F-D-250-100	2	0.25 in	6.35 mm	10.922 mm	0.43 in	Black	0.1 in	2.54 mm	0.11 in	2.794 mm	100	2.54 mm	0.1 in	0.07 in	1.778 mm	Solder	Gold	Through Hole	0.076 Ám	3 Áin
Samtec Inc. DW-50-07-T-D-200	2			10.922 mm	0.43 in	Black	0.1 in	2.54 mm	0.11 in	2.794 mm	100	2.54 mm	0.1 in	0.12 in	3.048 mm	Solder	Tin	Through Hole
