BQ20Z60 Series
Manufacturer: Texas Instruments
Beta
⌘K
IC GAS GAUGE LI-ION 2-4C 30TSSOP
| Part | Fault Protection | Mounting Type | Battery Chemistry | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case [x] | Package / Case [y] | Package / Case | Supplier Device Package | Function | Number of Cells [Min] | Number of Cells [Max] | Interface | Embedded | Secondary Attributes | Supplied Contents | Type | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Over Current Over Temperature Over/Under Voltage Short Circuit | Surface Mount | Lithium Ion/Polymer | 85 °C | -40 °C | 0.173 in | 4.4 mm Width | 30-TFSOP | 30-TSSOP | Battery Monitor | 2 cells | 4 | SMBus | |||||

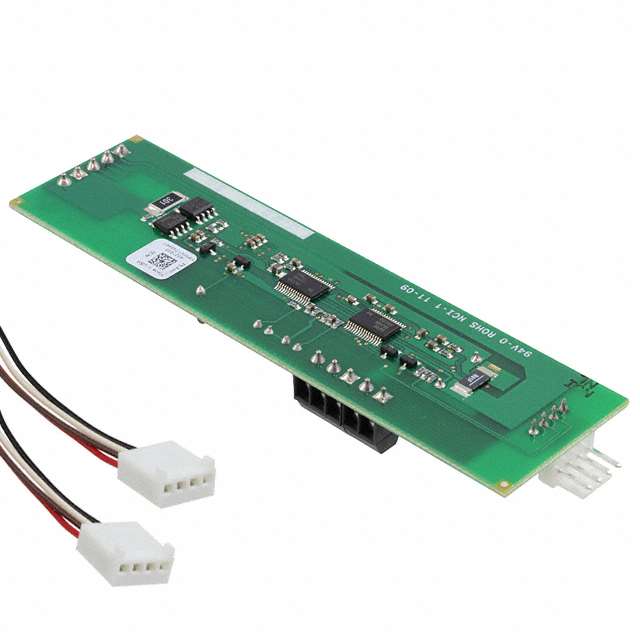

 Texas Instruments | Battery Gauge | Over Discharge Overcharge Overcurrent Protection Short Circuit | Board(s) | Power Management | BQ20Z60 BQ29330 BQ29412 | |||||||||||||
Texas Instruments | Over Current Over Temperature Over/Under Voltage Short Circuit | Surface Mount | Lithium Ion/Polymer | 85 °C | -40 °C | 0.173 in | 4.4 mm Width | 30-TFSOP | 30-TSSOP | Battery Monitor | 2 cells | 4 | SMBus |
