1757822 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K
CONN D-SUB HOUSING RCPT 15POS
| Part | Shell Size, Connector Layout | Contact Type | Color | Dielectric Material | Note | Mounting Type | Shell Material, Finish | Number of Positions | Flange Feature | Connector Style | Connector Type | Shell Finish Thickness | Shell Finish Thickness | Number of Rows | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Contact Material | Contact Finish | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | 2 | Signal | Black | Polyester | Contacts Not Included | Free Hanging (In-Line) | Steel Yellow Chromate Plated Zinc | 15 | Housing/Shell (Unthreaded) | D-Sub | Receptacle for Female Contacts | 20 µin | 0.51 µm | 2 | |||||||||
 TE Connectivity Aerospace, Defense and Marine | Signal | Black | Polyester | Contacts Not Included | Free Hanging (In-Line) | Steel Yellow Chromate Plated Zinc | 9 | Housing/Shell (Unthreaded) | D-Sub | Receptacle for Female Contacts | 200 µin | 5.08 µm | 2 | DE E | 1 | ||||||||

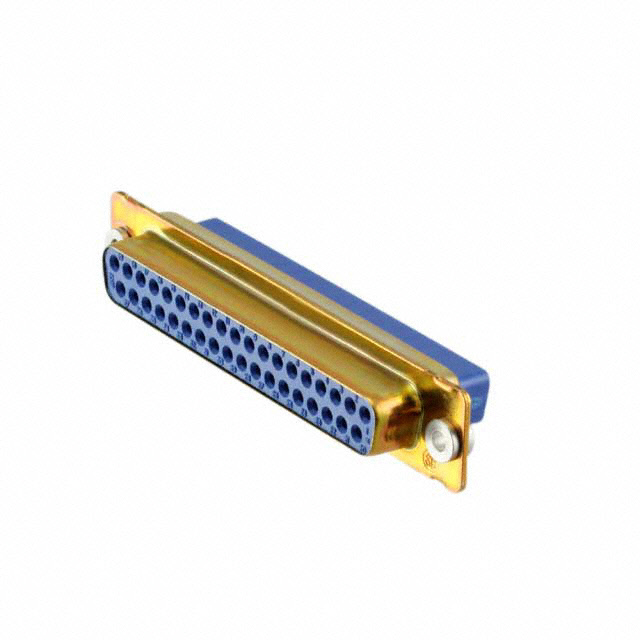

TE Connectivity Aerospace, Defense and Marine | Signal | Blue | Polyester | Free Hanging (In-Line) | Steel Yellow Chromate Plated Zinc | 37 | Housing/Shell (Unthreaded) | D-Sub | Receptacle Female Sockets | 2 | 4 (DC C) | Copper Alloy | Gold | 7.5 A | -55 °C | 125 °C | Crimp | ||||||

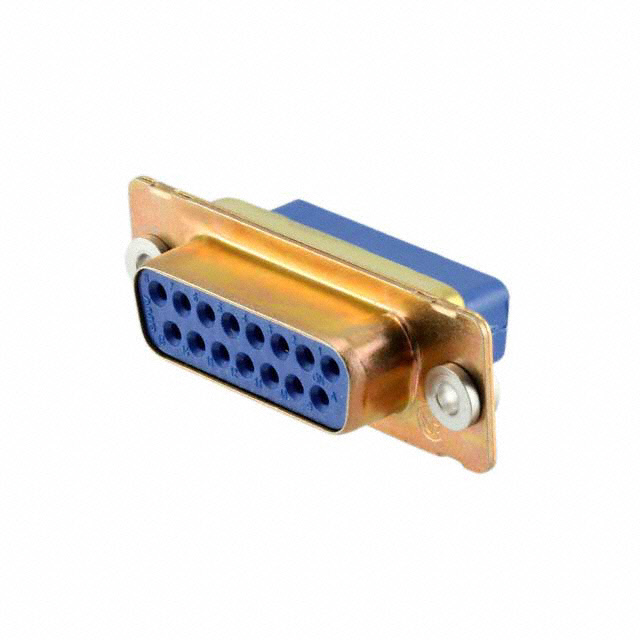

TE Connectivity Aerospace, Defense and Marine | 2 | Signal | Blue | Polyester | Free Hanging (In-Line) | Steel Yellow Chromate Plated Zinc | 15 | Housing/Shell (Unthreaded) | D-Sub | Receptacle Female Sockets | 2 | Copper Alloy | Gold | 7.5 A | -55 °C | 125 °C | Crimp | ||||||
 TE Connectivity Aerospace, Defense and Marine | Signal | Blue | Polyester | Contacts Not Included | Free Hanging (In-Line) | Steel Yellow Chromate Plated Zinc | 37 | Housing/Shell (Unthreaded) | D-Sub | Receptacle for Female Contacts | 20 µin | 0.51 µm | 2 | 4 (DC C) | |||||||||
 TE Connectivity Aerospace, Defense and Marine | Signal | Blue | Polyester | Free Hanging (In-Line) | Steel Yellow Chromate Plated Zinc | Housing/Shell (Unthreaded) | D-Sub | Receptacle Female Sockets | 2 | B DB | 3 | Copper Alloy | Gold | 7.5 A | -55 °C | 125 °C | Crimp |
