DTC123 Series

Catalog

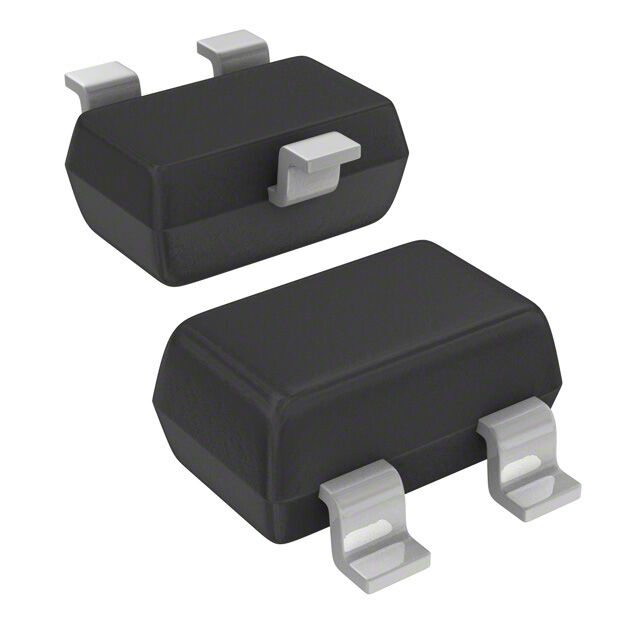

TRANS PREBIAS NPN 50V SOT23-3

Part	Resistor - Base (R1)	Resistor - Emitter Base (R2)	Frequency - Transition	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Supplier Device Package	Vce Saturation (Max) @ Ib, Ic	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Package / Case	Mounting Type	Transistor Type	DC Current Gain (hFE) (Min) @ Ic, Vce	Resistors Included
Comchip Technology DTC123JCA-HF	2.2 kOhm	47000 Ohms	250 MHz	50 V	500 nA	SOT-23-3	300 mV	200 mW	100 mA	80	SC-59 SOT-23-3 TO-236-3	Surface Mount	NPN - Pre-Biased
Comchip Technology DTC123YCA-HF	2.2 kOhm	10 kOhms	250 MHz	50 V	500 nA	SOT-23-3	300 mV	200 mW	100 mA		SC-59 SOT-23-3 TO-236-3	Surface Mount	NPN - Pre-Biased	33 hFE
Comchip Technology DTC123JUA-HF	2.2 kOhm	47000 Ohms	250 MHz		500 nA	SOT-323	300 mV	200 mW	100 mA	80	SC-70 SOT-323	Surface Mount	NPN - Pre-Biased		R1 and R2
