M3216 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

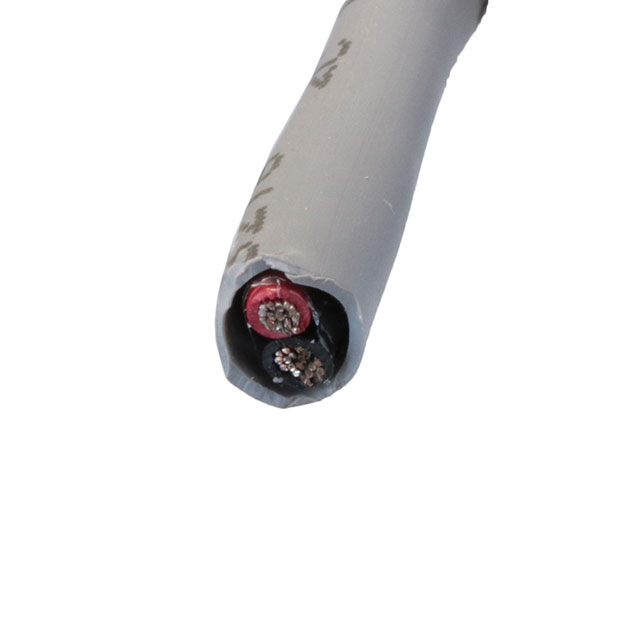

CABLE 2COND 16AWG SHLD 3000'
| Part | Shield Coverage | Shield Material | Ratings | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Jacket Color | Cable Type | Conductor Insulation | Conductor Material | Number of Conductors | Voltage | Length | Length | Conductor Strand [custom] | Conductor Strand [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 85 % | Copper Tinned | UL Style 2095 | 80 °C | -20 ░C | 0.02 " | 0.508 mm | Braid | Poly-Vinyl Chloride (PVC) | 6.27 mm | 0.247 in | 16 AWG | Slate | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Copper Tinned | 2 | 300 VDC | 914.4 m | 3000 ' | 19 | 0.0117 in |
ALPHA WIRE | 85 % | Copper Tinned | UL Style 2095 | 80 °C | -20 ░C | 0.02 " | 0.508 mm | Braid | Poly-Vinyl Chloride (PVC) | 6.27 mm | 0.247 in | 16 AWG | Slate | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Copper Tinned | 2 | 300 VDC | 304.8 m | 1000 ft | 19 | 0.0117 in |
