819-22 Series

Catalog

CONN SPRING PISTON 4POS SMD

Part	Mounting Type	Contact Finish	Pitch	Pitch	Material	Connector Type	Number of Contacts	Contact Finish Thickness	Contact Finish Thickness	Number of Rows

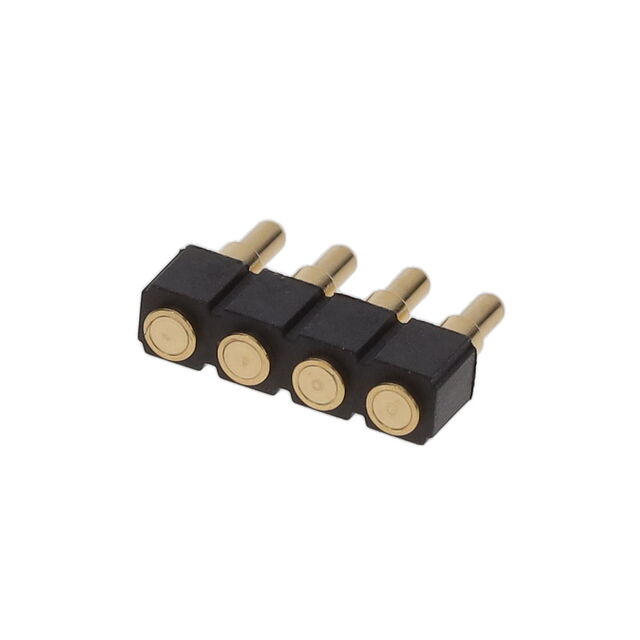

Mill-Max Manufacturing Corp. 819-22-004-30-001101	Surface Mount	Gold	0.1 "	2.54 mm	Copper Alloy	Piston	4	0.25 Ám	10 Áin	1

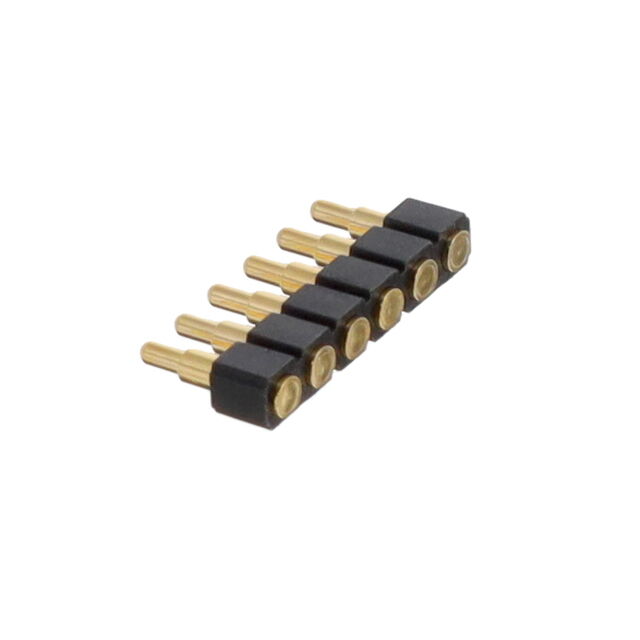

Mill-Max Manufacturing Corp. 819-22-006-30-001101	Surface Mount	Gold	0.1 "	2.54 mm	Copper Alloy	Piston	6	0.25 Ám	10 Áin	1
Mill-Max Manufacturing Corp. 819-22-029-30-001101	Surface Mount	Gold	0.1 "	2.54 mm	Copper Alloy	Piston	29	0.25 Ám	10 Áin	1
Mill-Max Manufacturing Corp. 819-22-063-30-001101	Surface Mount	Gold	0.1 "	2.54 mm	Copper Alloy	Piston	63	0.25 Ám	10 Áin	1
Mill-Max Manufacturing Corp. 819-22-011-30-001101	Surface Mount	Gold	0.1 "	2.54 mm	Copper Alloy	Piston	11	0.25 Ám	10 Áin	1
Mill-Max Manufacturing Corp. 819-22-025-30-001101	Surface Mount	Gold	0.1 "	2.54 mm	Copper Alloy	Piston	25	0.25 Ám	10 Áin	1
Mill-Max Manufacturing Corp. 819-22-047-30-001101	Surface Mount	Gold	0.1 "	2.54 mm	Copper Alloy	Piston	47	0.25 Ám	10 Áin	1
Mill-Max Manufacturing Corp. 819-22-015-30-001101	Surface Mount	Gold	0.1 "	2.54 mm	Copper Alloy	Piston	15	0.25 Ám	10 Áin	1

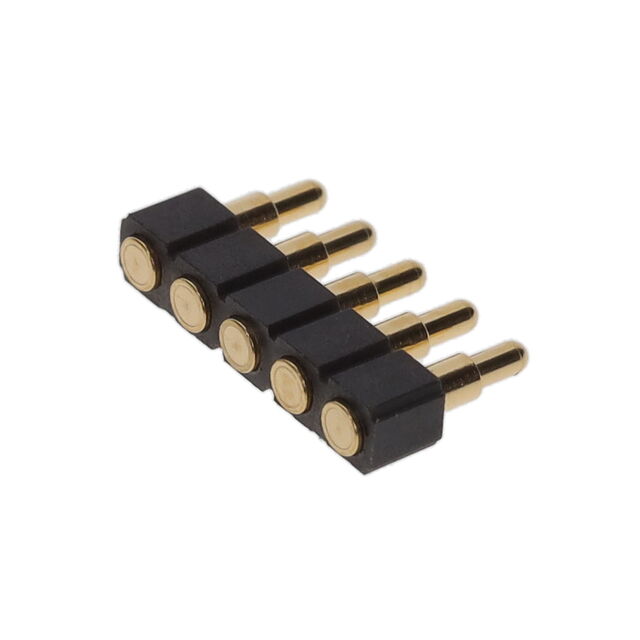

Mill-Max Manufacturing Corp. 819-22-005-30-001101	Surface Mount	Gold	0.1 "	2.54 mm	Copper Alloy	Piston	5	0.25 Ám	10 Áin	1
Mill-Max Manufacturing Corp. 819-22-040-30-001101	Surface Mount	Gold	0.1 "	2.54 mm	Copper Alloy	Piston	40	0.25 Ám	10 Áin	1
