1285AS Series

Catalog

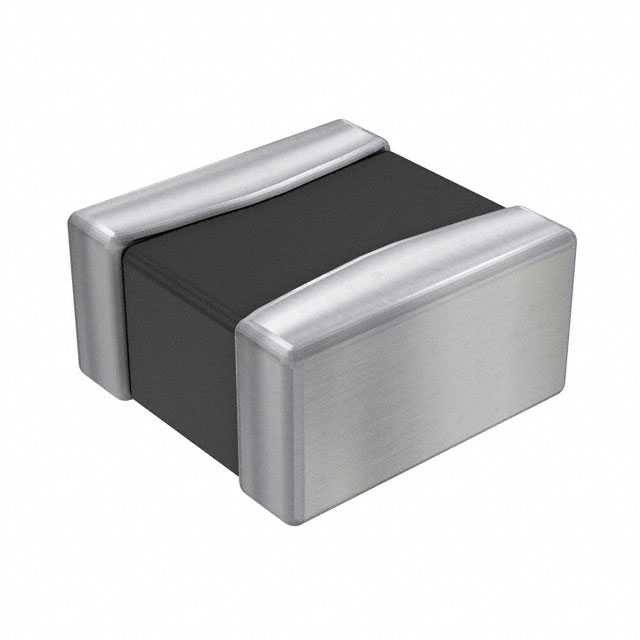

FIXED IND 560NH 2.8A 59 MOHM SMD

Part	Material - Core	Inductance	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	DC Resistance (DCR) [Max]	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Inductance Frequency - Test	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current Rating (Amps)	Shielding	Mounting Type	DC Resistance (DCR)	Current - Saturation (Isat)
Murata Electronics 1285AS-H-R56M=P2	Iron Powder	560 nH	20 %	1.6 mm	0.079 in	0.063 "	2 mm	59 mOhm	Drum Core Wirewound	0.039 in	1 mm	0806 (2016 Metric)	1 MHz	85 °C	-40 C	0805	2.8 A	Shielded	Surface Mount
Murata Electronics 1285AS-H-2R2M=P2	Iron Powder	2.2 µH	20 %	1.6 mm	0.079 in	0.063 "	2 mm		Drum Core Wirewound	0.039 in	1 mm	0806 (2016 Metric)	1 MHz	85 °C	-40 C	0805	1.5 A	Shielded	Surface Mount	204 mOhm
Murata Electronics 1285AS-H-1R0M=P2	Iron Powder	1 µH	20 %	1.6 mm	0.079 in	0.063 "	2 mm	96 mOhm	Drum Core Wirewound	0.039 in	1 mm	0806 (2016 Metric)	1 MHz	85 °C	-40 C	0805	2.2 A	Shielded	Surface Mount
Murata Electronics 1285AS-H-R68M=P2	Iron Powder	0.68 µH	20 %	1.6 mm	0.079 in	0.063 "	2 mm		Drum Core Wirewound	0.039 in	1 mm		1 MHz	85 °C	-40 C	0805	2.5 A	Shielded	Surface Mount	72 mOhm	2.6 A
Murata Electronics 1285AS-H-1R5M=P2	Iron Powder	1.5 µH	20 %	1.6 mm	0.079 in	0.063 "	2 mm		Drum Core Wirewound	0.039 in	1 mm	0806 (2016 Metric)	1 MHz	85 °C	-40 C	0805	1.8 A	Shielded	Surface Mount	144 mOhm
