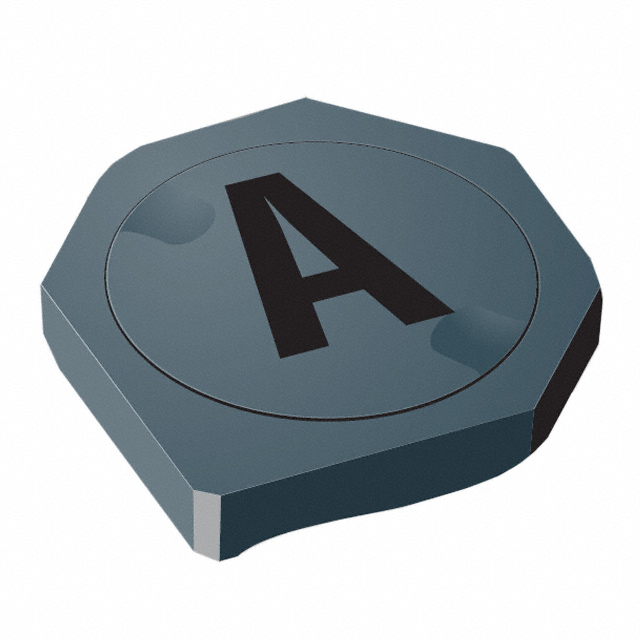

SRU3009 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 3.3UH 650MA 225MOHM SM
| Part | Current - Saturation (Isat) | Shielding | Current Rating (Amps) | Material - Core | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Frequency - Self Resonant | DC Resistance (DCR) | Inductance Frequency - Test | Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Mounting Type | Tolerance | Inductance | Q @ Freq | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 720 mA | Shielded | 650 mA | Ferrite | Nonstandard | 125 °C | -40 C | 130 MHz | 225 mOhm | 100 kHz | Drum Core Wirewound | 0.138 in | 3.5 mm | 3.3 mm | 0.13 in | Surface Mount | 30 % | 3.3 µH | 7.96 MHz 8 | |
Bourns Inc. | 350 mA | Shielded | 0.28 A | Ferrite | Nonstandard | 125 °C | -40 C | 60 MHz | 100 kHz | Drum Core Wirewound | 0.138 in | 3.5 mm | 3.3 mm | 0.13 in | Surface Mount | 30 % | 10 µH | 2.52 MHz 8.5 | 760 mOhm |
