FISD072 Series
Manufacturer: Belden Inc.
Beta
⌘K
CBL FIBER OPTIC 125UM SINGLEMODE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Features | Features | Ratings | Type | Style | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cladding Diameter [diameter] | Tensile Strength | Jacket Color | Jacket (Insulation) Material | Core Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

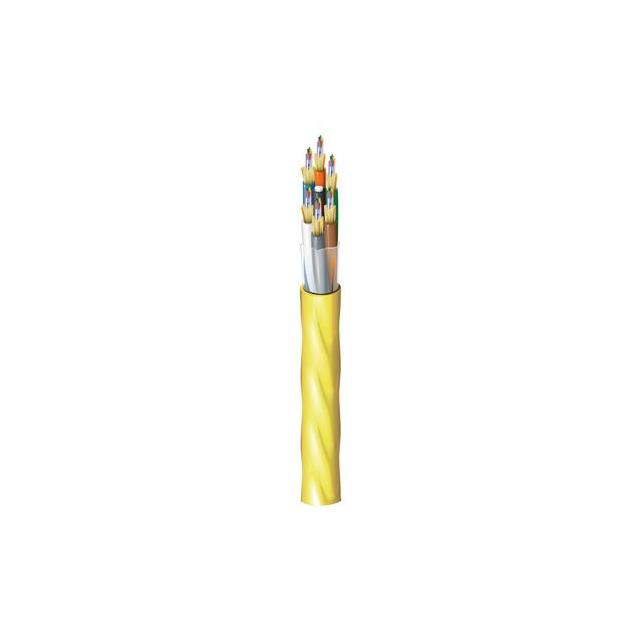

 Belden Inc. | 70 °C | 0 °C | Rip Cord | 72 Fibers | OFNP | Singlemode | Multiple Fibers | 18.36 mm | 0.723 " | 125 µm | 40.8 kg | Yellow | Poly-Vinyl Chloride (PVC) | 9 µm | |

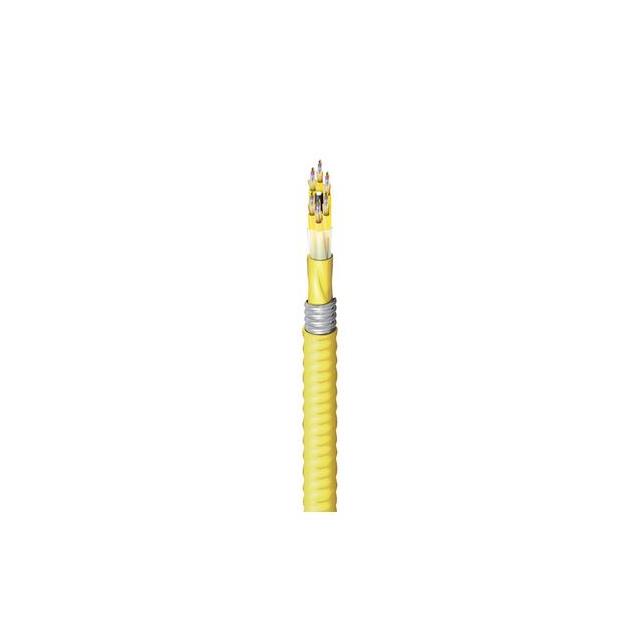

 Belden Inc. | 70 °C | 0 °C | 72 Fibers Armored | OFCP | Singlemode | Multiple Fibers | 27.31 mm | 125 µm | 40.8 kg | Yellow | Poly-Vinyl Chloride (PVC) | 9 µm | 1.075 in | ||
 Belden Inc. | 70 °C | -20 ░C | 72 Fibers Armored | OFCR | Singlemode | Multiple Fibers | 30.38 mm | 1.196 in | 125 µm | 40.8 kg | Yellow | Poly-Vinyl Chloride (PVC) | 9 µm | ||
Belden Inc. | 70 °C | -20 ░C | Rip Cord | 72 Fibers | OFNR | Singlemode | Multiple Fibers | 20.3 mm | 0.799 " | 125 µm | 40.8 kg | Yellow | Poly-Vinyl Chloride (PVC) | 9 µm |
