UCC28704 Series
Manufacturer: Texas Instruments
Beta
⌘K
HIGH-EFFICIENCY OFF-LINE CV AND CC FLYBACK CONTROLLER WITH PRIMARY-SIDE REGULATION (PSR)
| Part | Voltage - Start Up | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Internal Switch(s) | Package / Case | Topology | Output Isolation | Fault Protection | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Frequency - Switching | Power - Output | Board Type | Outputs and Type | Outputs and Type | Supplied Contents | Regulator Topology | Current - Output | Contents | Utilized IC / Part | Main Purpose | Voltage - Output | Voltage - Input [Max] | Voltage - Input [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 21 V | 35 V | 8.5 V | SOT-23-6 | Flyback | Isolated | Current Limiting Over Temperature Over Voltage Short Circuit | Surface Mount | -40 C | 125 °C | SOT-23-6 | 85 kHz | ||||||||||||||

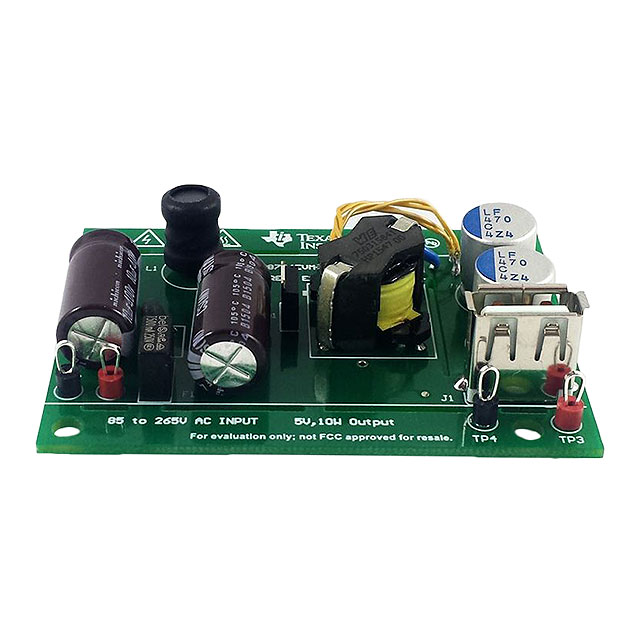

 Texas Instruments | 10 W | Fully Populated | 1 Isolated Output Isolated | 1 | Board(s) | Flyback | 2 A | Board(s) | UCC28704 | AC/DC Primary Side | 5 V | 265 VAC | 85 VAC | |||||||||||||
Texas Instruments | 21 V | 35 V | 8.5 V | SOT-23-6 | Flyback | Isolated | Current Limiting Over Temperature Over Voltage Short Circuit | Surface Mount | -40 C | 125 °C | SOT-23-6 | 85 kHz |
