B13A1 Series

Catalog

PROCESS SEALED SUBMINIATURE ANTISTATIC TOGGLE

Part	Actuator Material	Electrical Life	Actuator Length [x]	Mounting Type	Termination Style	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Circuit	Illumination	Current Rating (Amps)	Actuator Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Bushing Thread	Bushing Thread	Voltage Rating - DC

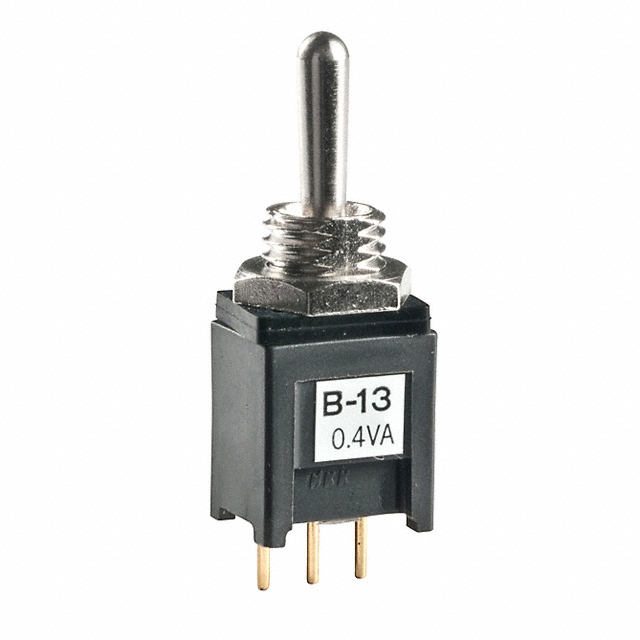

NKK Switches B13A1P	Brass Nickel Plated	50000 Cycles	8 mm	Panel Mount	PC Pin	6 mm	28 V	SPDT	Non-Illuminated	0.4 VA	Standard Round	Epoxy Sealed Terminals	85 °C	-30 ░C	On-Off-On	0.75	M6	28 V
NKK Switches B13A1B	Brass Nickel Plated	50000 Cycles	8 mm	Panel Mount	PC Pin	6 mm	28 V	SPDT	Non-Illuminated	0.4 VA	Standard Round	Epoxy Sealed Terminals	85 °C	-30 ░C	On-Off-On	0.75	M6	28 V
