Pn0 Series Series

Electrical Enclosures IP65 NEMA 4X Box with Mounting Brackets (6.3 X 3.2 X 2.2 In) Alternate & Momentary Action Pushbutton Switches

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Electrical Enclosures IP65 NEMA 4X Box with Mounting Brackets (6.3 X 3.2 X 2.2 In) Alternate & Momentary Action Pushbutton Switches

Part	Features	Type	Circuit	Switch Function	Current Rating (Amps)	Voltage Rating - DC	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Actuator Type	Mechanical Life	Color - Actuator/Cap	Electrical Life	Actuator Marking

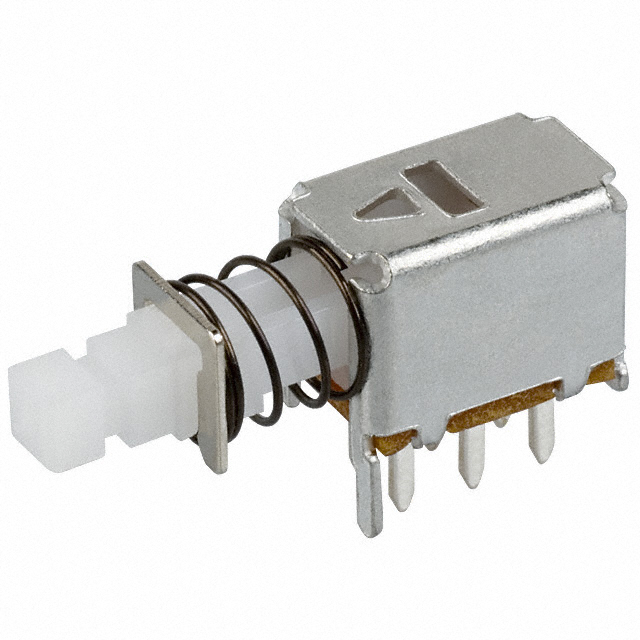

Littelfuse/Commercial Vehicle Products PN21LANA03QE	Epoxy Sealed Terminals	Standard	DPDT	On-Mom	200 mA	30 V	PC Pin	-10 °C	60 °C	Through Hole Right Angle	Plunger for Cap	10000 Steps	Black	10000 Cycles	No Marking

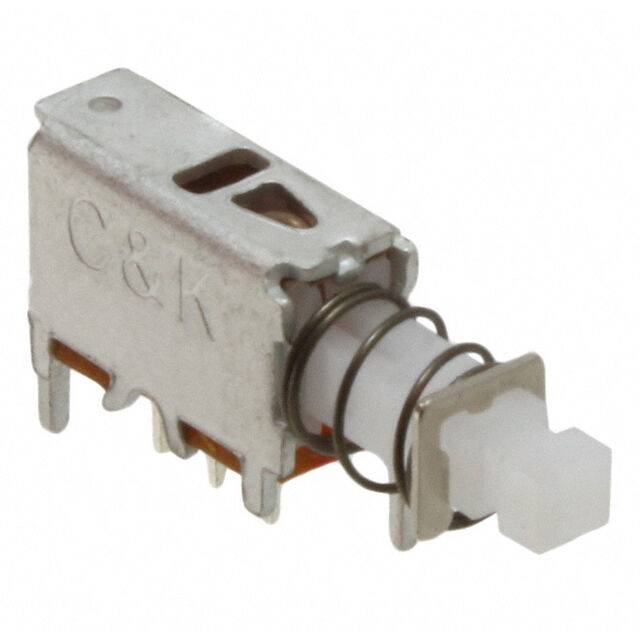

Littelfuse/Commercial Vehicle Products PN12SJNA03QE	Epoxy Sealed Terminals	Standard	SPDT	On-On	200 mA	30 V	PC Pin	-10 °C	60 °C	Through Hole Right Angle	Plunger for Cap	10000 Steps	Black	10000 Cycles	No Marking
Littelfuse/Commercial Vehicle Products PN21LENA03QE	Epoxy Sealed Terminals	Standard	DPDT	On-Mom	200 mA	30 V	PC Pin	-10 °C	60 °C	Through Hole Right Angle	Plunger for Cap	10000 Steps	Black	10000 Cycles	No Marking
Littelfuse/Commercial Vehicle Products PN12SHNA03QE	Epoxy Sealed Terminals	Standard	SPDT	On-On	200 mA	30 V	PC Pin	-10 °C	60 °C	Through Hole Right Angle	Plunger for Cap	10000 Steps	Black	10000 Cycles	No Marking
Littelfuse/Commercial Vehicle Products PN22SJNA03QE	Epoxy Sealed Terminals	Standard	DPDT	On-On	200 mA	30 V	PC Pin	-10 °C	60 °C	Through Hole Right Angle	Plunger for Cap	10000 Steps	Black	10000 Cycles	No Marking
Littelfuse/Commercial Vehicle Products PN12SHSA03QE	Epoxy Sealed Terminals	Standard	SPDT	On-On	200 mA	30 V	PC Pin	-10 °C	60 °C	Through Hole Right Angle	Plunger for Cap	10000 Steps	Black	10000 Cycles	No Marking

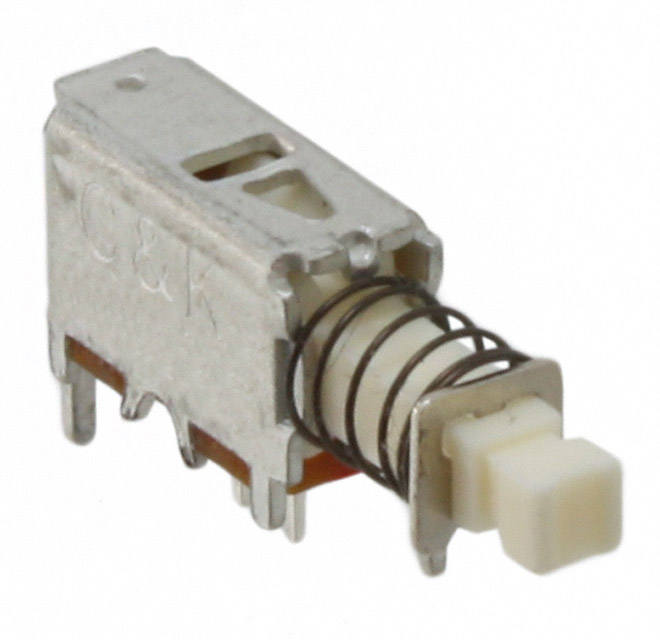

Littelfuse/Commercial Vehicle Products PN11SBSA03QE	Epoxy Sealed Terminals	Standard	SPDT	On-Mom	200 mA	30 V	PC Pin	-10 °C	60 °C	Through Hole Right Angle	Plunger for Cap	10000 Steps	Black	10000 Cycles	No Marking

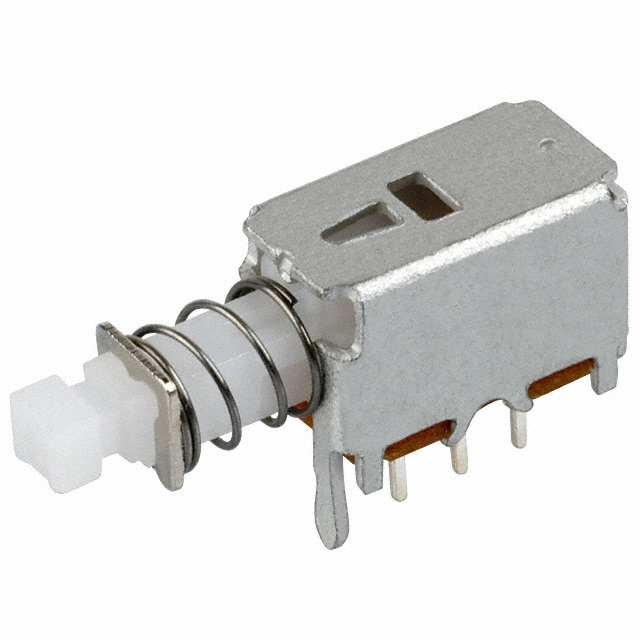

Littelfuse/Commercial Vehicle Products PN21SJNA03QE	Epoxy Sealed Terminals	Standard	DPDT	On-Mom	200 mA	30 V	PC Pin	-10 °C	60 °C	Through Hole Right Angle	Plunger for Cap	10000 Steps	Black	10000 Cycles	No Marking
Littelfuse/Commercial Vehicle Products PN22SJSA03QE	Epoxy Sealed Terminals	Standard	DPDT	On-On	200 mA	30 V	PC Pin	-10 °C	60 °C	Through Hole Right Angle	Plunger for Cap	10000 Steps	Black	10000 Cycles	No Marking
Littelfuse/Commercial Vehicle Products PN11SHNA03QE	Epoxy Sealed Terminals	Standard	SPDT	On-Mom	200 mA	30 V	PC Pin	-10 °C	60 °C	Through Hole Right Angle	Plunger for Cap	10000 Steps	Black	10000 Cycles	No Marking

Catalog

Electrical Enclosures IP65 NEMA 4X Box with Mounting Brackets (6.3 X 3.2 X 2.2 In) Alternate & Momentary Action Pushbutton Switches

Key Features

• Different actuation forces for customized feel

• Low cost, reliable contact design

• Momentary or locking action

Description

The PN series alternate and momentary action pushbutton switches from C&K are used in computing, instrumentation and measurement equipment for non-power, on-off switching. With a low-cost, reliable contact design, the high-performance PN switches are available in either momentary or locking action options – and with different actuation forces, giving end-users a customized feel.
