9WL1448 Series

Catalog

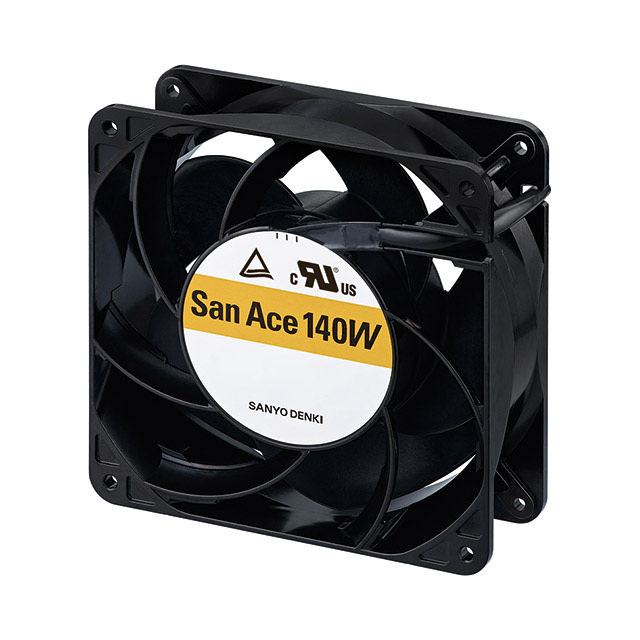

FAN: DC; AXIAL; 40.8÷55.2VDC; 140X140X38MM; 360M3/H; 62DBA; BALL

Part	Material - Frame	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Material - Blade	Fan Type	Termination	Static Pressure	Static Pressure	Air Flow	Air Flow	Ingress Protection	Weight [custom]	Weight [custom]	Noise	Bearing Type	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	Features	Power (Watts)	Width [y]	RPM	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Width [x]
Sanyo Denki America Inc. 9WL1448P1H001	Aluminum	100000 Hrs	55.2 VDC	40.8 VDC	0.42 A	Plastic	Tubeaxial	4 Wire Leads	298.9 Pa	1.2 in H2O	212 CFM	5.94 m³/min	IP68 - Dust Tight Waterproof	750 g	1.653 lb	62 dB(A)	Ball	140 mm	140 mm	48 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)	20.16 W	38 mm	5200 RPM	-20 ░C	70 °C	cURus TUV
Sanyo Denki America Inc. 9WL1448P5S001	Aluminum	100000 Hrs	55.2 VDC	40.8 VDC	0.45 A	Plastic	Tubeaxial	4 Wire Leads	294 Pa	1.18 in H2O	212 CFM	5.94 m³/min	IP68 - Dust Tight Waterproof	750 g	1.653 lb	57 dB	Ball	140 mm	140 mm	48 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)	22 W		5000 RPM	-20 ░C	70 °C	cURus TUV	51 mm
Sanyo Denki America Inc. 9WL1448P5G001	Aluminum	100000 Hrs	55.2 VDC	40.8 VDC	1.29 A	Plastic	Tubeaxial	4 Wire Leads	655.1 Pa	2.63 in H2O	318 CFM	8.9 m³/min	IP68 - Dust Tight Waterproof	750 g	1.653 lb		Ball	140 mm	140 mm	48 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)	62 W		7500 RPM	-20 ░C	70 °C	cURus TUV	51 mm
Sanyo Denki America Inc. 9WL1448P1M001	Aluminum	100000 Hrs	55.2 VDC	40.8 VDC	150 mA	Plastic	Tubeaxial	4 Wire Leads	169.4 Pa	0.68 in H2O	130 CFM	3.64 m³/min	IP68 - Dust Tight Waterproof	750 g	1.653 lb	46 dB(A)	Ball	140 mm	140 mm	48 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)	7.2 W	38 mm	3300 RPM	-20 ░C	70 °C	cURus TUV
