0319-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

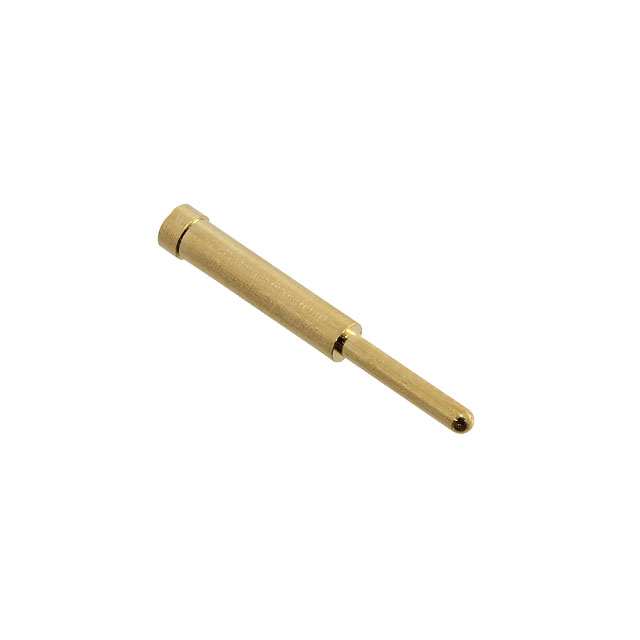

CONN RECEPT PIN .037-.043" .240"
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Socket Depth | Socket Depth | Contact Material | Contact Finish | Length - Overall | Length - Overall | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Min] | Contact Finish Thickness | Contact Finish Thickness | Termination | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Tail Diameter [diameter] | Tail Diameter [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Tail Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 1.37 mm | 0.054 in | 0.2 in | 5.08 mm | Beryllium Copper | Gold | 0.586 in | 14.88 mm | 0.043 in | 1.09 mm | 0.94 mm | 0.037 in | 0.25 Ám | 10 Áin | Solder | 0.042 in | 1.07 mm | 1.02 mm | 0.04 " | 0.078 " | 1.98 mm | Standard Tail |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 1.37 mm | 0.054 in | 0.2 in | 5.08 mm | Beryllium Copper | Gold | 0.586 in | 14.88 mm | 0.043 in | 1.09 mm | 0.94 mm | 0.037 in | 0.76 Ám | 30 Áin | Solder | 0.042 in | 1.07 mm | 1.02 mm | 0.04 " | 0.078 " | 1.98 mm | Standard Tail |
Mill-Max Manufacturing Corp. | -55 C | 125 °C | 1.37 mm | 0.054 in | 0.2 in | 5.08 mm | Beryllium Copper | Gold | 0.586 in | 14.88 mm | 0.043 in | 1.09 mm | 0.94 mm | 0.037 in | 0.25 Ám | 10 Áin | Solder | 0.042 in | 1.07 mm | 1.02 mm | 0.04 " | 0.078 " | 1.98 mm | Standard Tail |
Mill-Max Manufacturing Corp. | -55 C | 125 °C | 1.37 mm | 0.054 in | 0.2 in | 5.08 mm | Beryllium Copper | Gold | 0.586 in | 14.88 mm | 0.043 in | 1.09 mm | 0.94 mm | 0.037 in | 0.25 Ám | 10 Áin | Solder | 0.042 in | 1.07 mm | 1.02 mm | 0.04 " | 0.078 " | 1.98 mm | Standard Tail |
