1977879 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

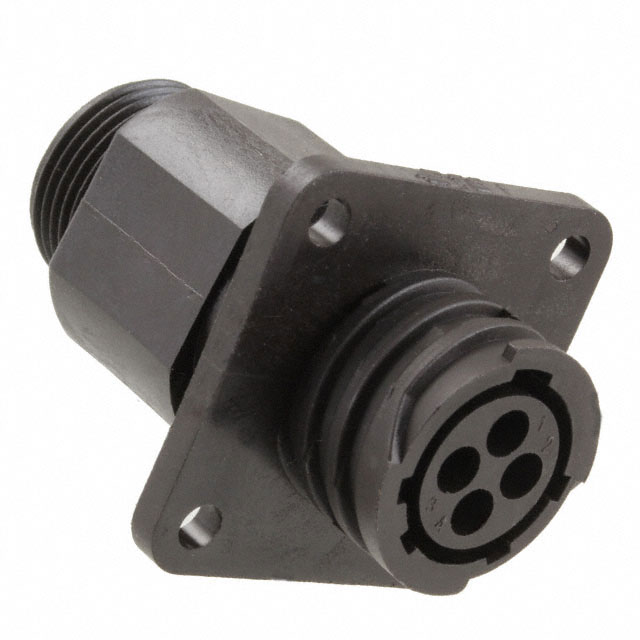

CONN RCPT HSNG FMALE 4POS PNL MT
| Part | Housing Color | Number of Positions | Mounting Feature | Ingress Protection | Orientation | Note | Shielding | Contact Size | Shell Size - Insert | Material Flammability Rating | Features | Contact Shape | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Contact Type | Shell Material | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Black | 4 | Flange | IP67 - Dust Tight Waterproof | Keyed | Contacts Not Included | Unshielded | 16 | 11-4 | UL94 V-0 | Backshell | Circular | 105 ░C | -55 °C | Receptacle Housing | Crimp | Polyamide (PA66) Nylon 6/6 | For Female Sockets |
