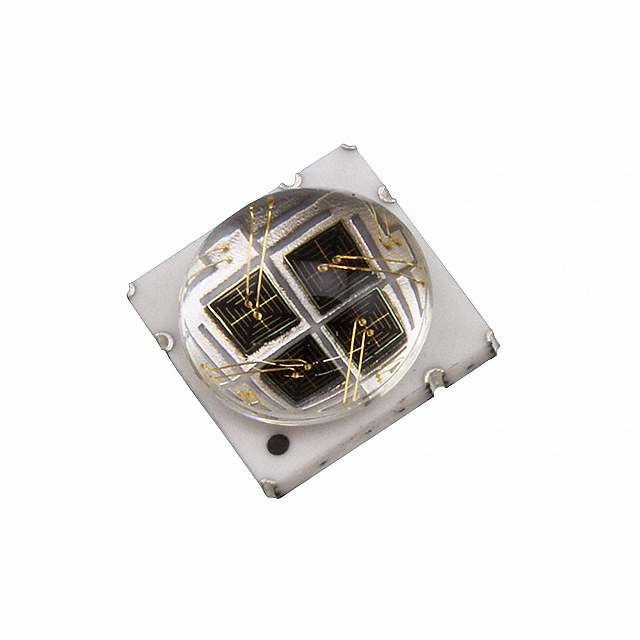

LZ4-00 Series

Catalog

LED LZ4 AMBER 593NM SMD

Part	Thermal Resistance of Package	Color	Viewing Angle	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Mounting Type	Temperature - Test	Package / Case	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Wavelength	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Operating Temperature	Current - DC Forward (If) (Max) [Max]	Wavelength [Max]	Wavelength [Min]	Radiant Intensity (Ie) Min @ If [Min]	Orientation	Type	Current - Max [custom]	Current - Max [custom]	Current - Max [custom]	Current - Max [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]
ams-OSRAM USA INC. LZ4-00A108-0A45	2.8 °C/W	Amber	100 °	365 lm	285 lm	445 lm	Surface Mount	25 °C	2828 (7070 Metric)	SMD	0.276 "	0.276 in	7 mm	7 mm	1 A	0.154 in	3.9 mm	593 nm	52 lm/W	10 V
ams-OSRAM USA INC. LZ4-00R108-0000	2.8 °C/W	Red	100 °	456 lm			Surface Mount	25 °C	2828 (7070 Metric)	SMD	0.276 "	0.276 in	7 mm	7 mm	1 A	0.154 in	3.9 mm	624 nm	65 lm/W	10 V
ams-OSRAM USA INC. LZ4-00UB0R-00U4			110 °				Surface Mount		2828 (7070 Metric)											14.8 V	130 °C	1 A	390 nm	385 nm	4800 mW/sr	Top View	Ultraviolet (UV)
ams-OSRAM USA INC. LZ4-00A108-0000	2.8 °C/W	Amber	100 °	365 lm	285 lm	445 lm	Surface Mount	25 °C	2828 (7070 Metric)	SMD	0.276 "	0.276 in	7 mm	7 mm	1 A	0.154 in	3.9 mm	593 nm	52 lm/W	10 V

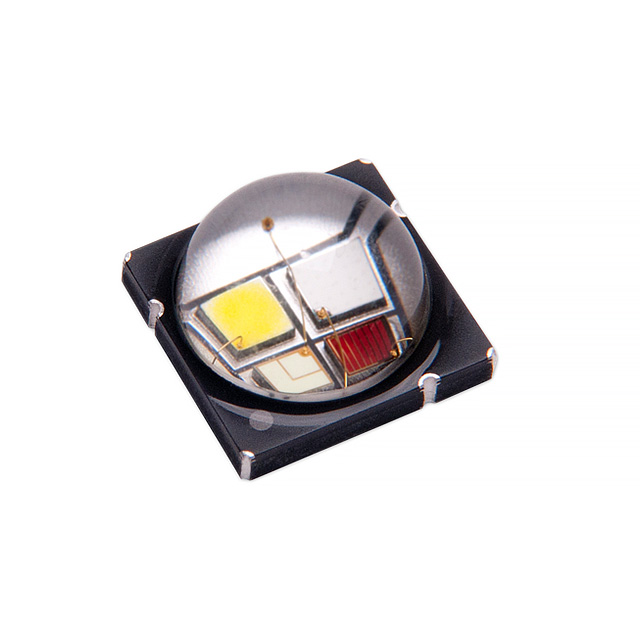

ams-OSRAM USA INC. LZ4-00MD09-0000	2.8 °C/W	Blue Green Red White	95 °				Surface Mount	25 °C	2828 (7070 Metric)	SMD	0.276 "	0.276 in	7 mm	7 mm		0.154 in	3.9 mm	457 nm 525 nm 624 nm 6100 K	13 lm/W 63 lm/W 66 lm/W 85 lm/W	2.5 V 3.2 V 3.2 V 3.6 V								1 A	1 A	1 A	1 A	30 lm	160 lm	115 lm	190 lm

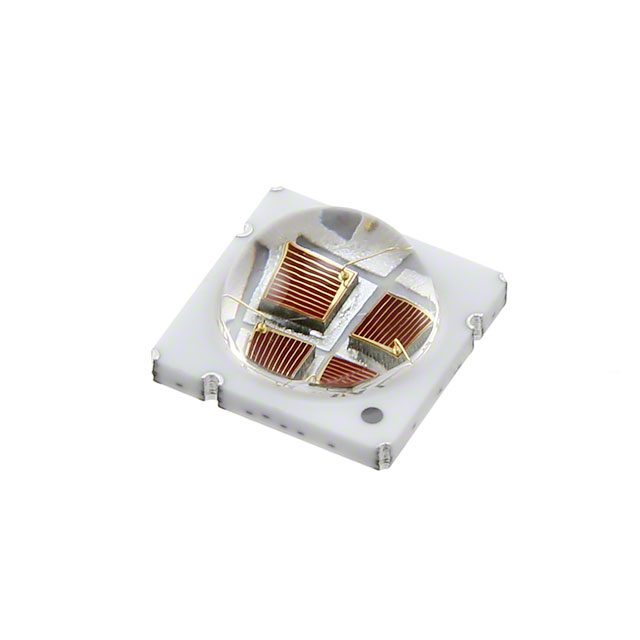

ams-OSRAM USA INC. LZ4-00R508-0000			95 °				Surface Mount		8-SMD No Lead Exposed Pad									920 nm		8 V	125 ¯C	1 A				Top View	Infrared (IR)
ams-OSRAM USA INC. LZ4-00R308-0000	2.8 °C/W	Red	95 °	2000 mW			Surface Mount	25 °C	2828 (7070 Metric)	SMD	0.276 "	0.276 in	7 mm	7 mm	1 A	0.154 in	3.9 mm	734 nm		9 V			745 nm	723 nm
ams-OSRAM USA INC. LZ4-00G108-0G23	2.8 °C/W	Green	100 °	657 lm			Surface Mount	25 °C	2828 (7070 Metric)	SMD	0.276 "	0.276 in	7 mm	7 mm	1 A	0.154 in	3.9 mm	525 nm	65 lm/W	13.9 V			530 nm	520 nm

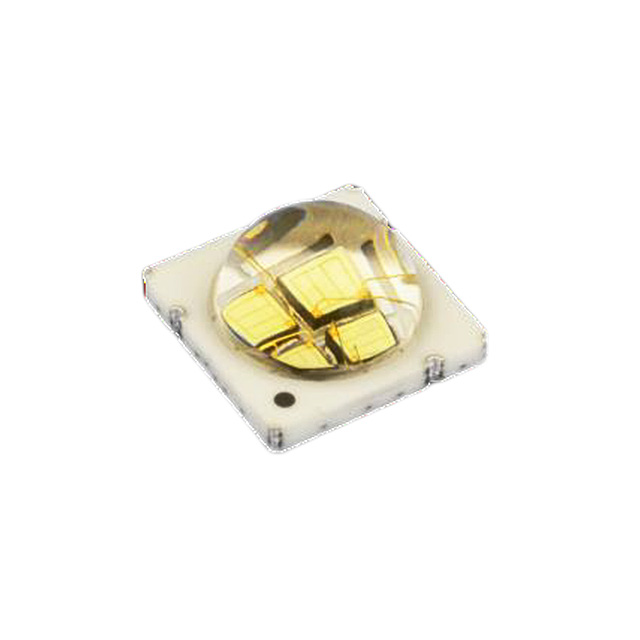

ams-OSRAM USA INC. LZ4-00G108-0000	2.8 °C/W	Green	100 °	657 lm			Surface Mount	25 °C	2828 (7070 Metric)	SMD	0.276 "	0.276 in	7 mm	7 mm	1 A	0.154 in	3.9 mm	528 nm	65 lm/W	13.9 V
ams-OSRAM USA INC. LZ4-00UB0R-00U8			110 °				Surface Mount		2828 (7070 Metric)											14.8 V	130 °C	1 A	410 nm	405 nm	4800 mW/sr	Top View	Ultraviolet (UV)
