F221V3/32 Series

Catalog

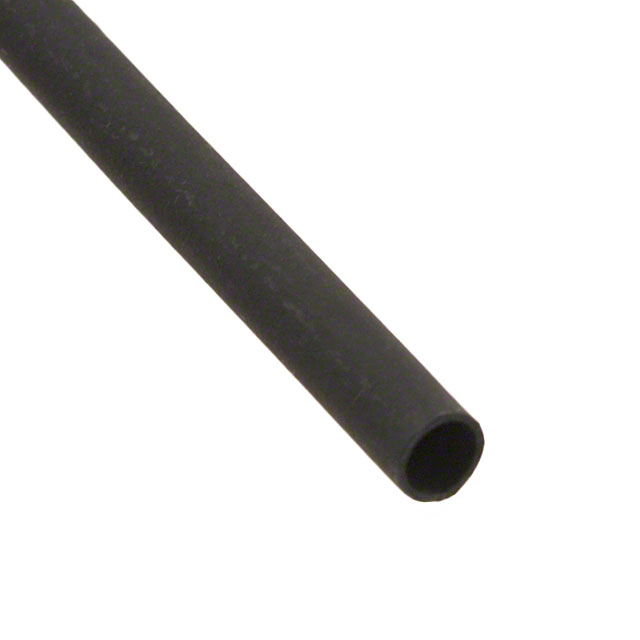

HEATSHRINK 0.093" X 500' BLACK

Part	Shelf Life Start	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Type	Material	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Color	Length	Length	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Shelf Life	Shrink Temperature	Length [x]	Length [x]
ALPHA WIRE F221V3/32 BK206	Date of Manufacture	1	2	Flame Retardant Fluid Resistant Heat Resistant UV Resistant	-55 C	135 °C	Tubing Flexible	Polyolefin (PO) Irradiated	1.17 mm	0.046 in	Black	152.4 m	500 ft	2.36 mm	0.093 "	0.51 mm	0.02 in	144 Months	90 °C
ALPHA WIRE F221V3/32 YL103	Date of Manufacture	1	2	Flame Retardant Fluid Resistant Heat Resistant	-55 C	135 °C	Tubing Flexible	Polyolefin (PO) Irradiated	1.17 mm	0.046 in	Yellow			2.36 mm	0.093 "	0.51 mm	0.02 in	144 Months	90 °C	4 ft	1.22 m
ALPHA WIRE F221V3/32 WH002	Date of Manufacture	1	2	Flame Retardant Fluid Resistant Heat Resistant	-55 C	135 °C	Tubing Flexible	Polyolefin (PO) Irradiated	1.17 mm	0.046 in	White	152.4 m	500 ft	2.36 mm	0.093 "	0.51 mm	0.02 in	144 Months	90 °C
ALPHA WIRE F221V3/32 BK103	Date of Manufacture	1	2	Flame Retardant Fluid Resistant Heat Resistant UV Resistant	-55 C	135 °C	Tubing Flexible	Polyolefin (PO) Irradiated	1.17 mm	0.046 in	Black			2.36 mm	0.093 "	0.51 mm	0.02 in	144 Months	90 °C	4 ft	1.22 m
ALPHA WIRE F221V3/32 GR002	Date of Manufacture	1	2	Flame Retardant Fluid Resistant Heat Resistant	-55 C	135 °C	Tubing Flexible	Polyolefin (PO) Irradiated	1.17 mm	0.046 in	Green	152.4 m	500 ft	2.36 mm	0.093 "	0.51 mm	0.02 in	144 Months	90 °C
ALPHA WIRE F221V3/32 BL002	Date of Manufacture	1	2	Flame Retardant Fluid Resistant Heat Resistant	-55 C	135 °C	Tubing Flexible	Polyolefin (PO) Irradiated	1.17 mm	0.046 in	Blue	152.4 m	500 ft	2.36 mm	0.093 "	0.51 mm	0.02 in	144 Months	90 °C
ALPHA WIRE F221V3/32 RD103	Date of Manufacture	1	2	Flame Retardant Fluid Resistant Heat Resistant	-55 C	135 °C	Tubing Flexible	Polyolefin (PO) Irradiated	1.17 mm	0.046 in	Red			2.36 mm	0.093 "	0.51 mm	0.02 in	144 Months	90 °C	4 ft	1.22 m
