Z0201C Series

Manufacturer: KEMET

Catalog

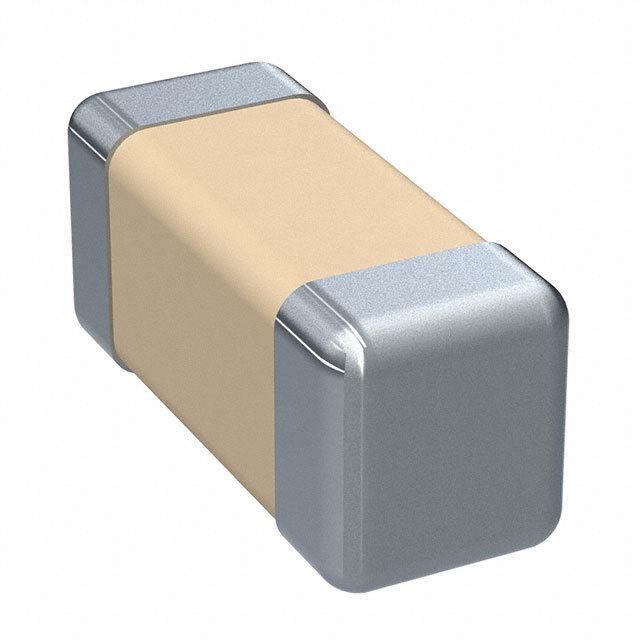

FERRITE BEAD 56 OHM 0201 1LN

Part	Filter Type	Height (Max) [z]	Height (Max) [z]	Mounting Type	Number of Lines	DC Resistance (DCR) (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Impedance @ Frequency	Package / Case	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	DC Resistance (DCR) (Max) [Max]	Current Rating (Max) [Max]
KEMET Z0201C560CSMST	Signal Line	0.013 in	0.33 mm	Surface Mount	1	1 Ohm	-55 C	125 °C	56 Ohms	0603 Metric	0201	0.012 in	0.024 in	0.3 mm	0.6 mm
KEMET Z0201C152GSMST	Signal Line	0.013 in	0.33 mm	Surface Mount	1		-55 C	125 °C	1.5 kOhms	0603 Metric	0201	0.012 in	0.024 in	0.3 mm	0.6 mm
KEMET Z0201C601ASMST	Signal Line	0.013 in	0.33 mm	Surface Mount	1		-55 C	125 °C	600 Ohms	0603 Metric	0201	0.012 in	0.024 in	0.3 mm	0.6 mm	1.2 Ohm	150 mA
KEMET Z0201C330APMST	Power Line	0.013 in	0.33 mm	Surface Mount	1		-55 C	125 °C	33 Ohms	0603 Metric	0201	0.012 in	0.024 in	0.3 mm	0.6 mm
KEMET Z0201C220APMST	Power Line	0.013 in	0.33 mm	Surface Mount	1		-55 C	125 °C	22 Ohms	0603 Metric	0201	0.012 in	0.024 in	0.3 mm	0.6 mm
KEMET Z0201C102GSMST	Signal Line	0.013 in	0.33 mm	Surface Mount	1		-55 C	125 °C	1 kOhms	0603 Metric	0201	0.012 in	0.024 in	0.3 mm	0.6 mm
