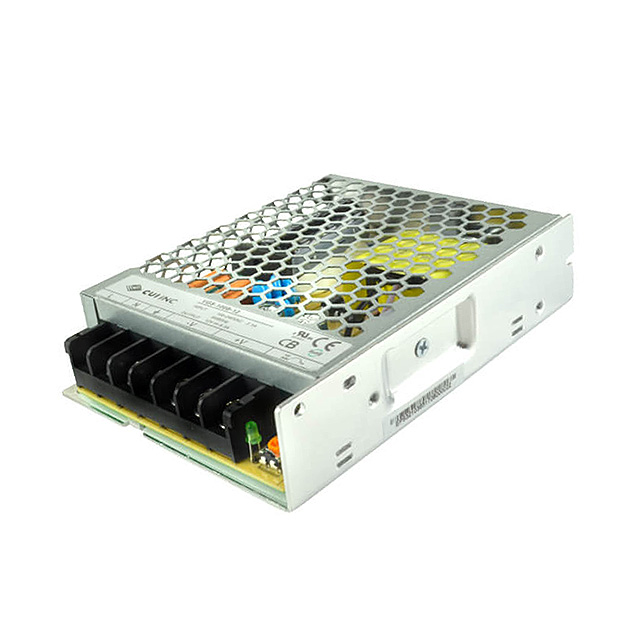

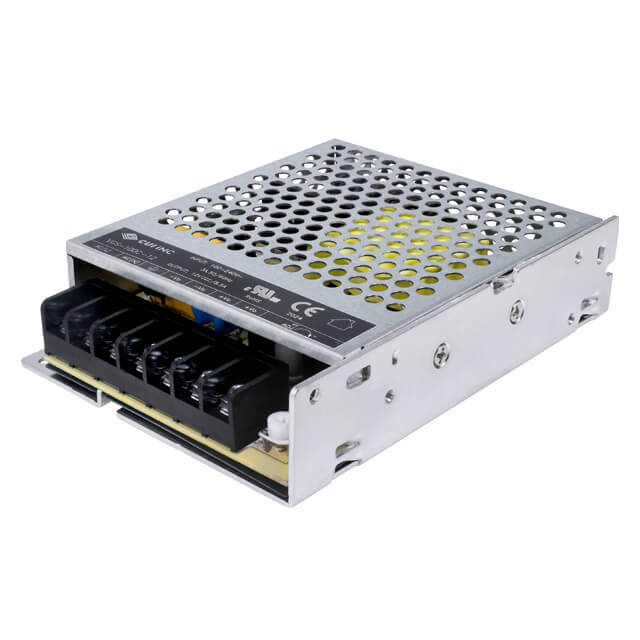

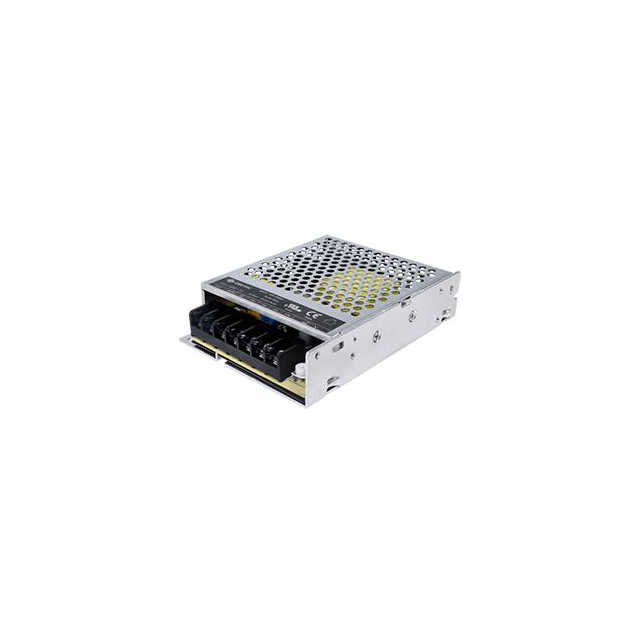

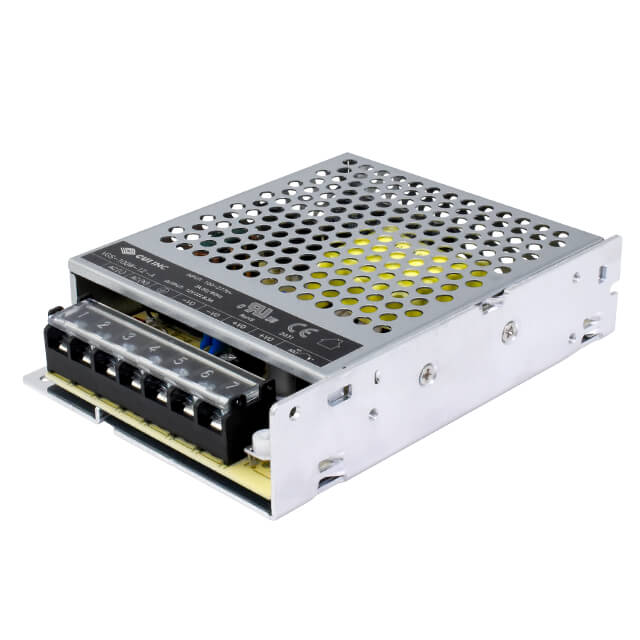

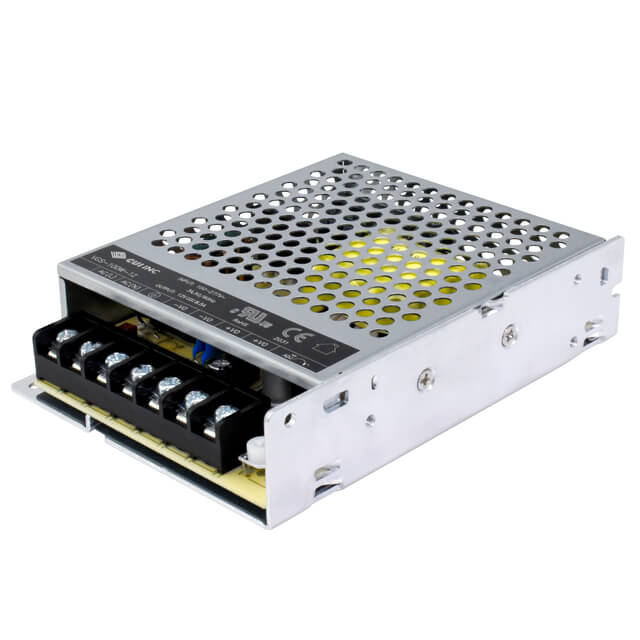

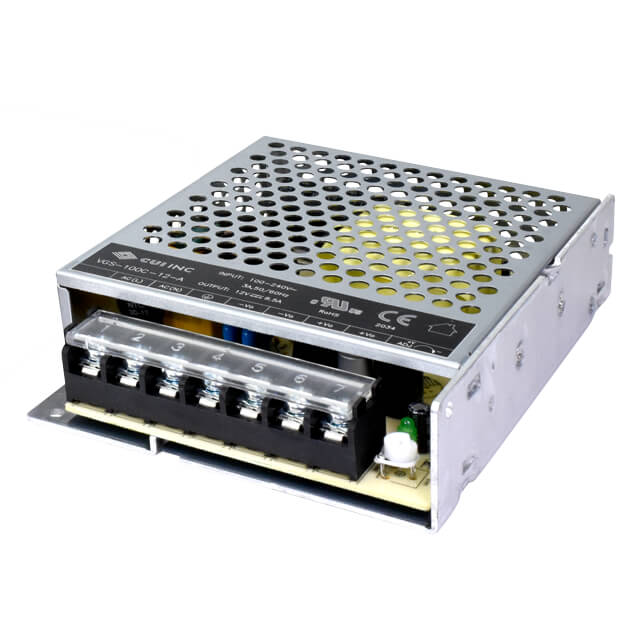

VGS-100 Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 24V 108W
| Part | Power (Watts) | Voltage - Output 1 | Voltage - Isolation | Type | Number of Outputs | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Approval Agency | Applications | Current - Output 1 | Standard Number | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Voltage - Input [Min] | Voltage - Input [Max] | Efficiency | Features | Voltage - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 108 W | 24 V | 4000 V | Enclosed | 1 | 30 mm | 97 mm | 1.18 in | 129 mm | 5.08 " | 3.82 in | CE cURus | Household Appliances ITE (Commercial) | 4.5 A | 60335-1 62368-1 | -30 °C | 70 °C | Chassis Mount | 85 VAC 120 VDC | 305 VAC 431 VDC | |||
 CUI Inc. | 100 W | 12 V | 1.5 kV | Enclosed | 1 | 30 mm | 97.5 mm | 1.18 in | 129 mm | 5.08 " | 3.84 " | CB Scheme EN FCC IEC SIQ TUV UL | ITE (Commercial) | 8.3 A | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | -20 °C | 70 °C | Chassis Mount | 90 VAC | 264 VAC | 85 % | Adjustable Output Universal Input | |
CUI Inc. | 101 W | 48 V | 1.5 kV | Enclosed | 1 | 30 mm | 97.5 mm | 1.18 in | 129 mm | 5.08 " | 3.84 " | CB Scheme EN FCC IEC SIQ TUV UL | ITE (Commercial) | 2.1 A | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | -20 °C | 70 °C | Chassis Mount | 90 VAC | 264 VAC | 88 % | Adjustable Output Universal Input | |
 CUI Inc. | 108 W | 24 V | 4000 V | Conformal Coated Enclosed | 1 | 30 mm | 97 mm | 1.18 in | 129 mm | 5.08 " | 3.82 in | CE cURus | Household Appliances ITE (Commercial) | 4.5 A | 60335-1 62368-1 | -30 °C | 70 °C | Chassis Mount | 85 VAC 120 VDC | 264 VAC 373 VDC | 90 % | Adjustable Output Universal Input | |
 CUI Inc. | 101 W | 4000 V | Conformal Coated Enclosed | 1 | 30 mm | 97 mm | 1.18 in | 129 mm | 5.08 " | 3.82 in | CE cURus | Household Appliances ITE (Commercial) | 2.8 A | 60335-1 62368-1 | -30 °C | 70 °C | Chassis Mount | 85 VAC 120 VDC | 305 VAC 431 VDC | 36 V | |||
 CUI Inc. | 108 W | 24 V | 4000 V | Conformal Coated Enclosed | 1 | 30 mm | 97 mm | 1.18 in | 129 mm | 5.08 " | 3.82 in | CE cURus | Household Appliances ITE (Commercial) | 4.5 A | 60335-1 62368-1 | -30 °C | 70 °C | Chassis Mount | 85 VAC 120 VDC | 305 VAC 431 VDC | |||
 CUI Inc. | 110 W | 48 V | 4000 V | Conformal Coated Enclosed | 1 | 30 mm | 97 mm | 1.18 in | 129 mm | 5.08 " | 3.82 in | CE cURus | Household Appliances ITE (Commercial) | 2.3 A | 60335-1 62368-1 | -30 °C | 70 °C | Chassis Mount | 85 VAC 120 VDC | 264 VAC 373 VDC | 91 % | Adjustable Output Universal Input | |
CUI Inc. | 108 W | 24 V | 4000 V | Enclosed | 1 | 30 mm | 97 mm | 1.18 in | 129 mm | 5.08 " | 3.82 in | CE cURus | Household Appliances ITE (Commercial) | 4.5 A | 60335-1 62368-1 | -30 °C | 70 °C | Chassis Mount | 85 VAC 120 VDC | 264 VAC 373 VDC | 90 % | Adjustable Output Universal Input | |
CUI Inc. | 108 W | 24 V | 1.5 kV | Enclosed | 1 | 30 mm | 97.5 mm | 1.18 in | 129 mm | 5.08 " | 3.84 " | CB Scheme EN FCC IEC SIQ TUV UL | ITE (Commercial) | 4.5 A | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | -20 °C | 70 °C | Chassis Mount | 90 VAC | 264 VAC | 87 % | Adjustable Output Universal Input | |
 CUI Inc. | 108 W | 24 V | 4000 V | Enclosed | 1 | 30 mm | 97 mm | 1.18 in | 129 mm | 5.08 " | 3.82 in | CE cURus | Household Appliances ITE (Commercial) | 4.5 A | 60335-1 62368-1 | -30 °C | 70 °C | Chassis Mount | 85 VAC 120 VDC | 264 VAC 373 VDC | 90 % | Adjustable Output Universal Input |
