PD20-1 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K

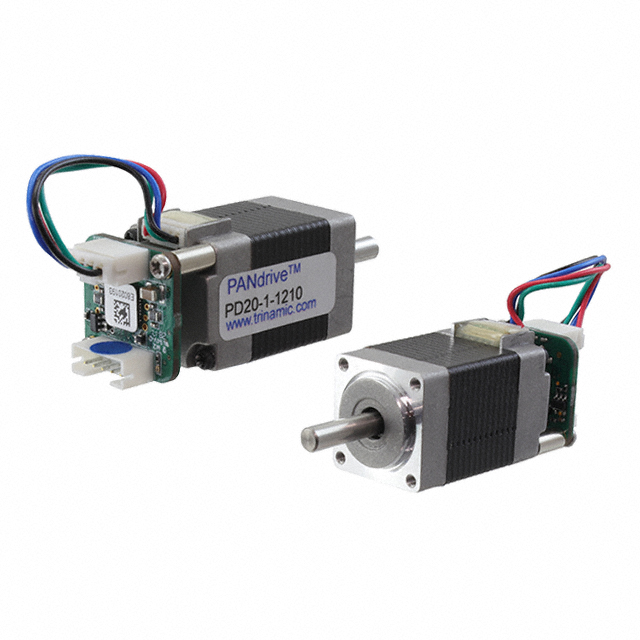

PANDRIVE NEMA08, 24V, 1.75NCM
| Part | Rotor Inertia | Voltage - Rated | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | NEMA Frame Size | Accuracy | Coil Resistance | Type | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Features | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Steps per Revolution | Step Angle | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Termination Style | Coil Type | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 2 gcm˛ | 24 VDC | 0.787 in | 0.787 " | 20 mm | 20 mm | 8 | 5 % | 6.5 Ohms | Hybrid | 15 mm | 0.591 in | Integrated Controller Round Shaft | 0.157 in | 4 mm | 200 | 1.8 ° | -20 ░C | 50 °C | 600 mA | Connector | Bipolar | 0.63 in | 16 mm | 2.48 oz-in | 17.5 mNm |
