C146 10R015 Series

Catalog

CONN HOOD SIDE ENTRY SZA10 M20

Part	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Lock Location	Housing Material	Ingress Protection	Thread Size	Style	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size	Features

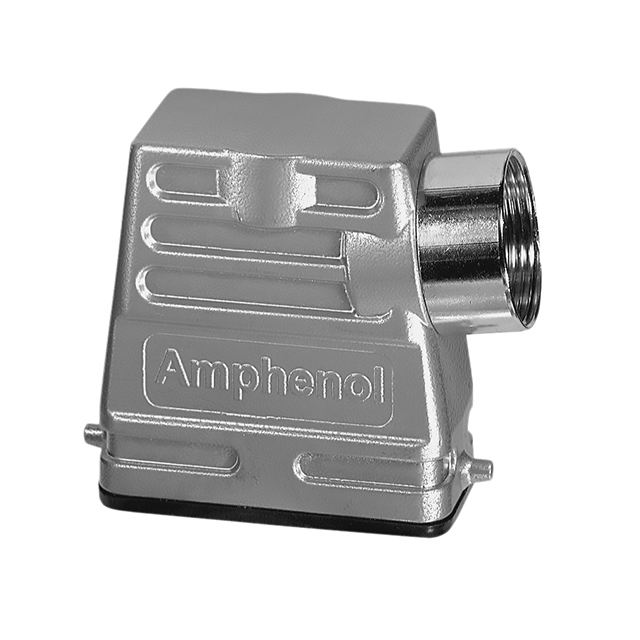

Amphenol Tuchel Industrial C146 10R015 550 2	-40 C	100 °C	Hood	Locking Clip (1) on Base Bottom	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	M20	Side Entry	2.539 "	29.5 mm	2.461 "	1.161 in	64.5 mm	62.5 mm	A10

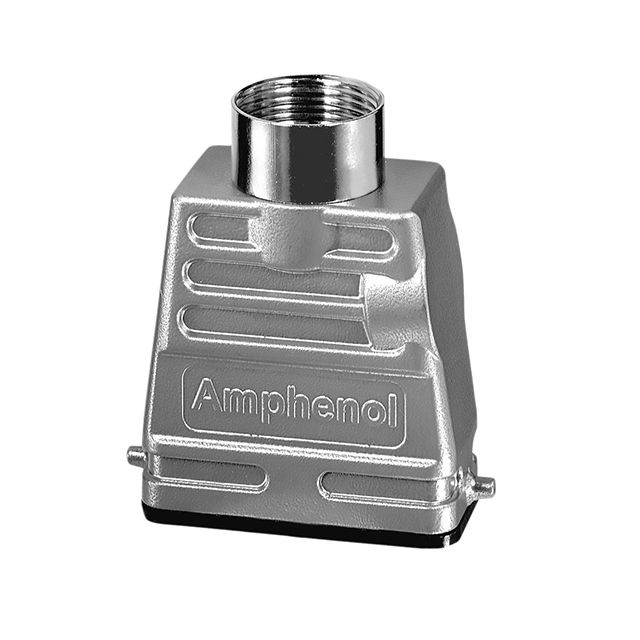

Amphenol Tuchel Industrial C146 10R015 600 2	-40 C	100 °C	Hood	Locking Clip (1) on Base Bottom	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	M25	Top Entry	2.539 "	29.5 mm	2.461 "	1.161 in	64.5 mm	62.5 mm	A10

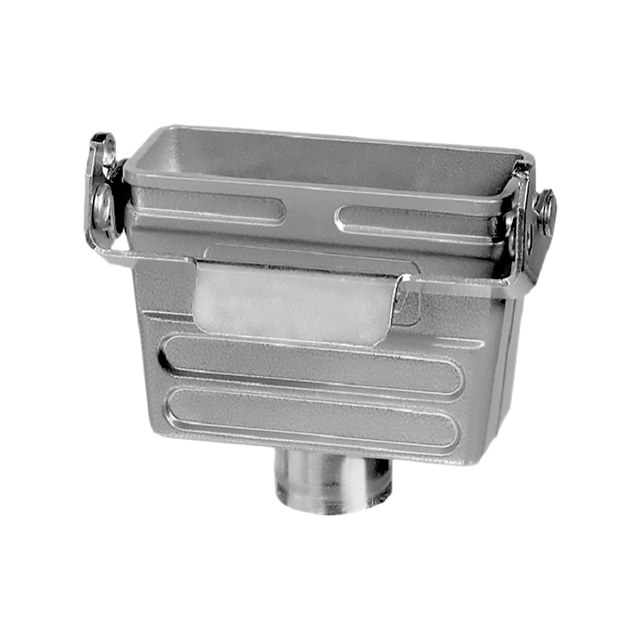

Amphenol Tuchel Industrial C146 10R015 804 2	-40 C	100 °C	Hood - Coupling	Locking Clip (1) on Hood Top	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	M25	Bottom Entry Top or Bottom Entry	2.323 in	29.5 mm	2.461 "	1.161 in	59 mm	62.5 mm	A10	Cable to Cable
Amphenol Tuchel Industrial C146 10R015 500 2	-40 C	100 °C	Hood	Locking Clip (1) on Base Bottom	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	M25	Side Entry	2.539 "	29.5 mm	2.461 "	1.161 in	64.5 mm	62.5 mm	A10
