104350 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 16POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows [custom]	Termination	Material Flammability Rating	Current Rating (Amps)	Contact Finish - Mating	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Material	Insulation Color	Fastening Type	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Shrouding	Contact Finish - Post	Mounting Type	Pitch - Mating	Pitch - Mating	Connector Type	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Contact Shape	Insulation Height [z]	Insulation Height [z]	Contact Type	Voltage Rating	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
TE Connectivity AMP Connectors 104350-8	2.54 µm	100 µin	2	Press-Fit Solder	UL94 V-0	3 A	Gold	Thermoplastic	105 ░C	-65 ░C	16	Copper Alloy	Black	Push-Pull	All	0.23 in	5.84 mm	Unshrouded	Tin-Lead	Through Hole	0.1 "	2.54 mm	Header Breakaway	11.18 mm	0.44 in	3.05 mm	0.12 in	Square	0.09 in	2.29 mm	Male Pin	30 VAC	Board to Board Cable	0.1 in	2.54 mm	0.76 Ám	30 Áin

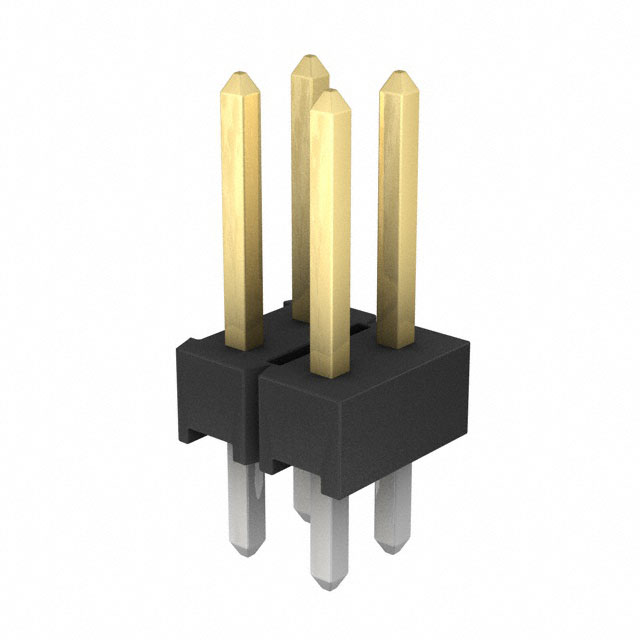

TE Connectivity AMP Connectors 104350-2	2.54 µm	100 µin	2	Press-Fit Solder	UL94 V-0	3 A	Gold	Thermoplastic	105 ░C	-65 ░C	4	Copper Alloy	Black	Push-Pull	All	0.23 in	5.84 mm	Unshrouded	Tin-Lead	Through Hole	0.1 "	2.54 mm	Header Breakaway	11.18 mm	0.44 in	3.05 mm	0.12 in	Square	0.09 in	2.29 mm	Male Pin	30 VAC	Board to Board Cable	0.1 in	2.54 mm	0.76 Ám	30 Áin
TE Connectivity AMP Connectors 1-104350-0	2.54 µm	100 µin	2	Press-Fit Solder	UL94 V-0	3 A	Gold	Thermoplastic	105 ░C	-65 ░C	20	Copper Alloy	Black	Push-Pull	All	0.23 in	5.84 mm	Unshrouded	Tin-Lead	Through Hole	0.1 "	2.54 mm	Header Breakaway	11.18 mm	0.44 in	3.05 mm	0.12 in	Square	0.09 in	2.29 mm	Male Pin	30 VAC	Board to Board Cable	0.1 in	2.54 mm	0.76 Ám	30 Áin
TE Connectivity AMP Connectors 1-104350-4	2.54 µm	100 µin	2	Press-Fit Solder	UL94 V-0	3 A	Gold	Thermoplastic	105 ░C	-65 ░C	28	Copper Alloy	Black	Push-Pull	All	0.23 in	5.84 mm	Unshrouded	Tin-Lead	Through Hole	0.1 "	2.54 mm	Header Breakaway	11.18 mm	0.44 in	3.05 mm	0.12 in	Square	0.09 in	2.29 mm	Male Pin	30 VAC	Board to Board Cable	0.1 in	2.54 mm	0.76 Ám	30 Áin
TE Connectivity AMP Connectors 1-104350-2	2.54 µm	100 µin	2	Press-Fit Solder	UL94 V-0	3 A	Gold	Thermoplastic	105 ░C	-65 ░C	24	Copper Alloy	Black	Push-Pull	All	0.23 in	5.84 mm	Unshrouded	Tin-Lead	Through Hole	0.1 "	2.54 mm	Header Breakaway	11.18 mm	0.44 in	3.05 mm	0.12 in	Square	0.09 in	2.29 mm	Male Pin	30 VAC	Board to Board Cable	0.1 in	2.54 mm	0.76 Ám	30 Áin
TE Connectivity AMP Connectors 1-104350-1	2.54 µm	100 µin	2	Press-Fit Solder	UL94 V-0	3 A	Gold	Thermoplastic	105 ░C	-65 ░C	22	Copper Alloy	Black	Push-Pull	All	0.23 in	5.84 mm	Unshrouded	Tin-Lead	Through Hole	0.1 "	2.54 mm	Header Breakaway	11.18 mm	0.44 in	3.05 mm	0.12 in	Square	0.09 in	2.29 mm	Male Pin	30 VAC	Board to Board Cable	0.1 in	2.54 mm	0.76 Ám	30 Áin
TE Connectivity AMP Connectors 2-104350-0	2.54 µm	100 µin	2	Press-Fit Solder	UL94 V-0	3 A	Gold	Thermoplastic	105 ░C	-65 ░C	80	Copper Alloy	Black	Push-Pull	All	0.23 in	5.84 mm	Unshrouded	Tin-Lead	Through Hole	0.1 "	2.54 mm	Header Breakaway	11.18 mm	0.44 in	3.05 mm	0.12 in	Square	0.09 in	2.29 mm	Male Pin	30 VAC	Board to Board Cable	0.1 in	2.54 mm	0.76 Ám	30 Áin
TE Connectivity AMP Connectors 1-104350-3	2.54 µm	100 µin	2	Press-Fit Solder	UL94 V-0	3 A	Gold	Thermoplastic	105 ░C	-65 ░C	26	Copper Alloy	Black	Push-Pull	All	0.23 in	5.84 mm	Unshrouded	Tin-Lead	Through Hole	0.1 "	2.54 mm	Header Breakaway	11.18 mm	0.44 in	3.05 mm	0.12 in	Square	0.09 in	2.29 mm	Male Pin	30 VAC	Board to Board Cable	0.1 in	2.54 mm	0.76 Ám	30 Áin
