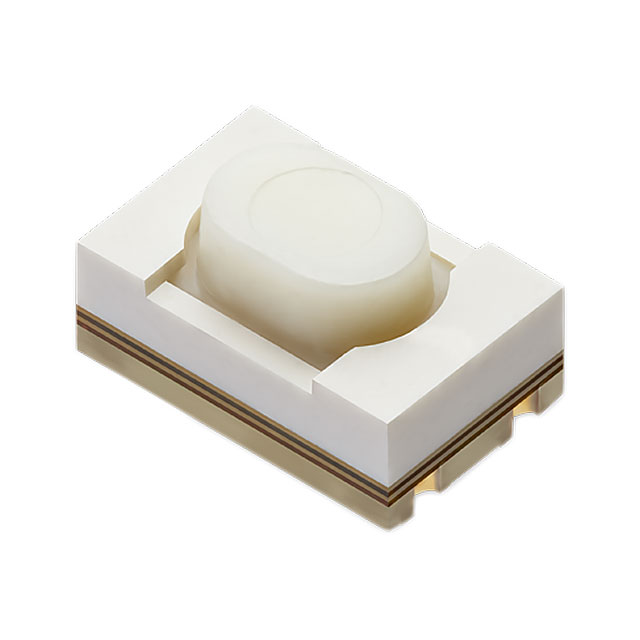

LS8J6 Series
Manufacturer: Citizen Finedevice Co Ltd
Beta
⌘K
SWITCH TACTILE SPST-NO 0.02A 12V
| Part | Switch Travel | Mechanical Life | Actuator Height off PCB, Vertical [z] | Termination Style | Contact Rating @ Voltage | Circuit | Switch Function | Actuator Orientation | Illumination | Operating Force | Actuator Type | Mounting Type | Outline [y] | Outline [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Citizen Finedevice Co Ltd | 0.2 mm | 100000 Cycles | 2.5 mm | SMD (SMT) Tab | 0.02 A 12 VDC | SPST-NO | Off-Mom | Top Actuated | Non-Illuminated | 530 gf | Oval Button | Surface Mount | 3.2 mm | 4.9 mm |
